KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002-1404)1KRFE

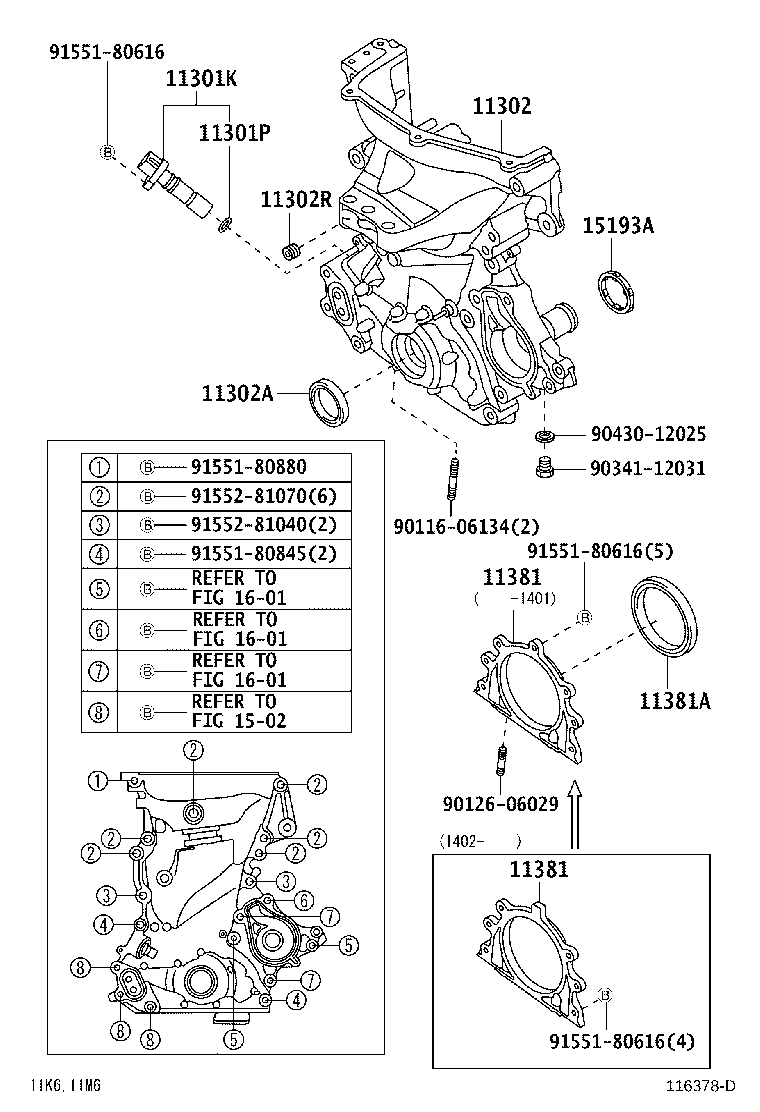

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05062 |
1KRFE..KGC3# |
1 | ||
| 90919-05062 |
1KRFE..KGC3# |
1 | ||
| 11301P - O RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
1KRFE..KGC3# |
1 | ||
| 90301-14016 |
1KRFE..KGC3# |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-40041 |
1KRFE..KGC3# |
1 | ||
| 11310-40041 |
1KRFE..KGC3# |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38092 |
1KRFE..KGC3# |
1 | ||
| 90311-38092 |
1KRFE..KGC3# |
1 | ||
| 11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER) | ||||
| 90344-53006 |
1KRFE..KGC3# |
1 | ||
| 90344-53006 |
1KRFE..KGC3# |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-40030 |
1KRFE..KGC3# |
1 | ||
| 11381-40010 |
1KRFE..KGC3# |
1 | ||
| 11381-40010 |
1KRFE..KGC3# |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-40030 |
1KRFE..KGC3# |
1 | ||
| 11381-40010 |
1KRFE..KGC3# |
1 | ||
| 11381-40010 |
1KRFE..KGC3# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-73004 |
1KRFE..KGC3# |
1 | ||
| 90311-73005 |
1KRFE..KGC3# |
1 | ||
| 90311-73004 |
1KRFE..KGC3# |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15193-40010 |
1KRFE..KGC3# |
1 | ||
| 15193-40010 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 90116-06134 | ||||
| 90126-06029 | ||||
| 90341-12031 | ||||
| 90430-12025 | ||||
| 91551-80616 | ||||
| 91551-80845 | ||||
| 91551-80880 | ||||
| 91552-81040 | ||||
| 91552-81070 | ||||
| Linked diagrams | ||||
| 1502 | ||||
| 1601 | ||||
