KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

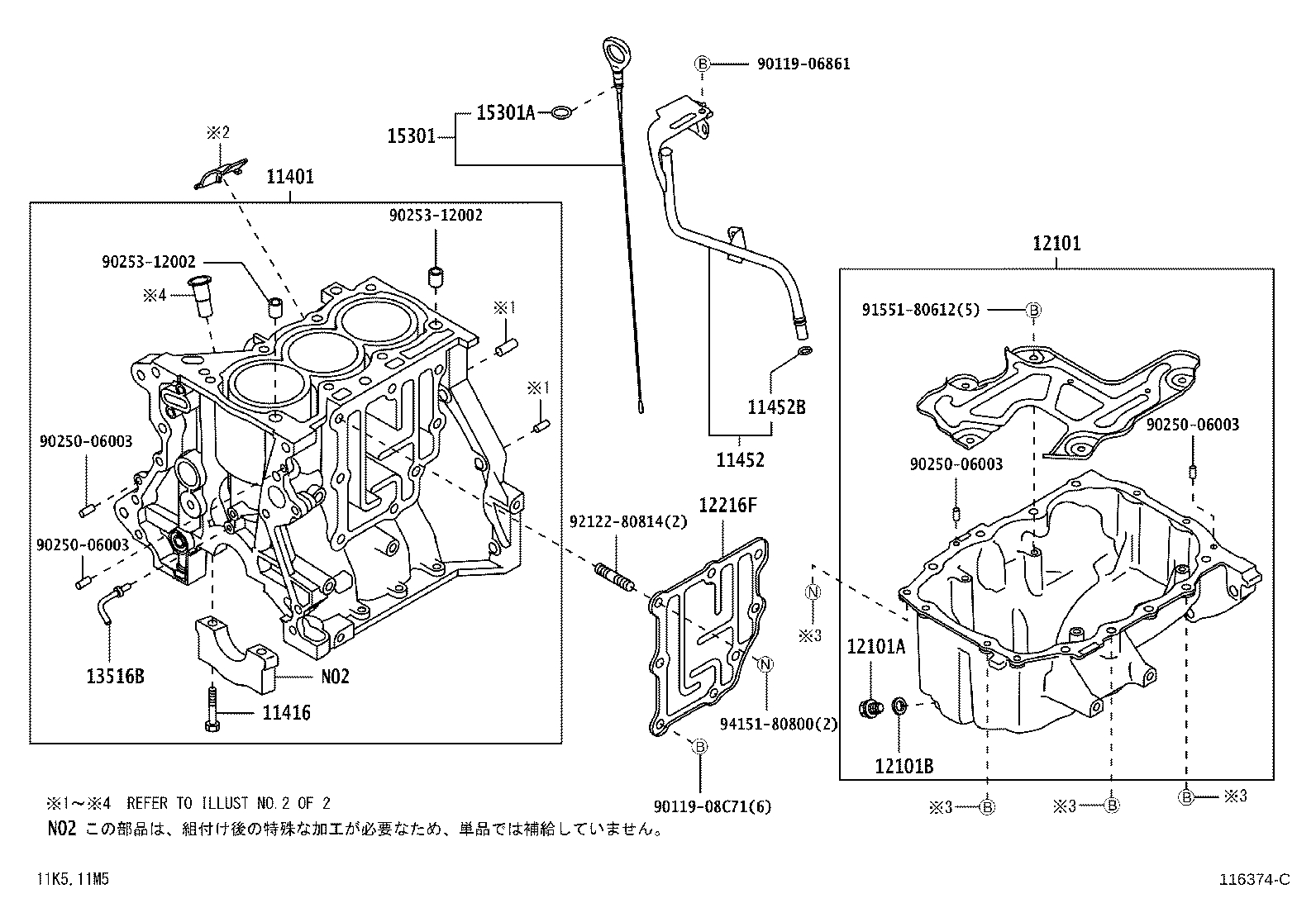

ILLUST NO. 1 OF 3(1002-1404)1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-B9340 |
1KRFE..KGC3# |
1 | ||
| 11401-B9340 |
1KRFE..KGC3# |
1 | ||
| 11401-B9342 |
1KRFE..KGC3# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KGC3# |
8 | ||
| 90105-10531 |
1KRFE..KGC3# |
8 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-B1060 |
1KRFE..KGC3# |
1 | ||
| 11409-B1060 |
1KRFE..KGC3# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KGC3# |
1 | ||
| 96721-19010 |
1KRFE..KGC3# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-B1060 |
1KRFE..KGC3# |
1 | ||
| 12101-B1060 |
1KRFE..KGC3# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KGC3# |
1 | ||
| 90341-12032 |
1KRFE..KGC3# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KRFE..KGC3# |
1 | ||
| 90430-12031 |
1KRFE..KGC3# |
1 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-40020 |
1KRFE..KGC3# |
1 | ||
| 12216-40020 |
1KRFE..KGC3# |
1 | ||
| 13516B - JET, OIL | ||||
| 13516-40010 |
1KRFE..KGC3# |
1 | ||
| 13516-40010 |
1KRFE..KGC3# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-B1100 |
1KRFE..KGC3# |
1 | ||
| 15301-B1100 |
1KRFE..KGC3# |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
1KRFE..KGC3# |
1 | ||
| 96741-19005 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 90119-06861 | ||||
| 90119-08C71 | ||||
| 90250-06003 | ||||
| 90253-12002 | ||||
| 91551-80612 | ||||
| 92122-80814 | ||||
| 94151-80800 | ||||
