KGC30-AHEAK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

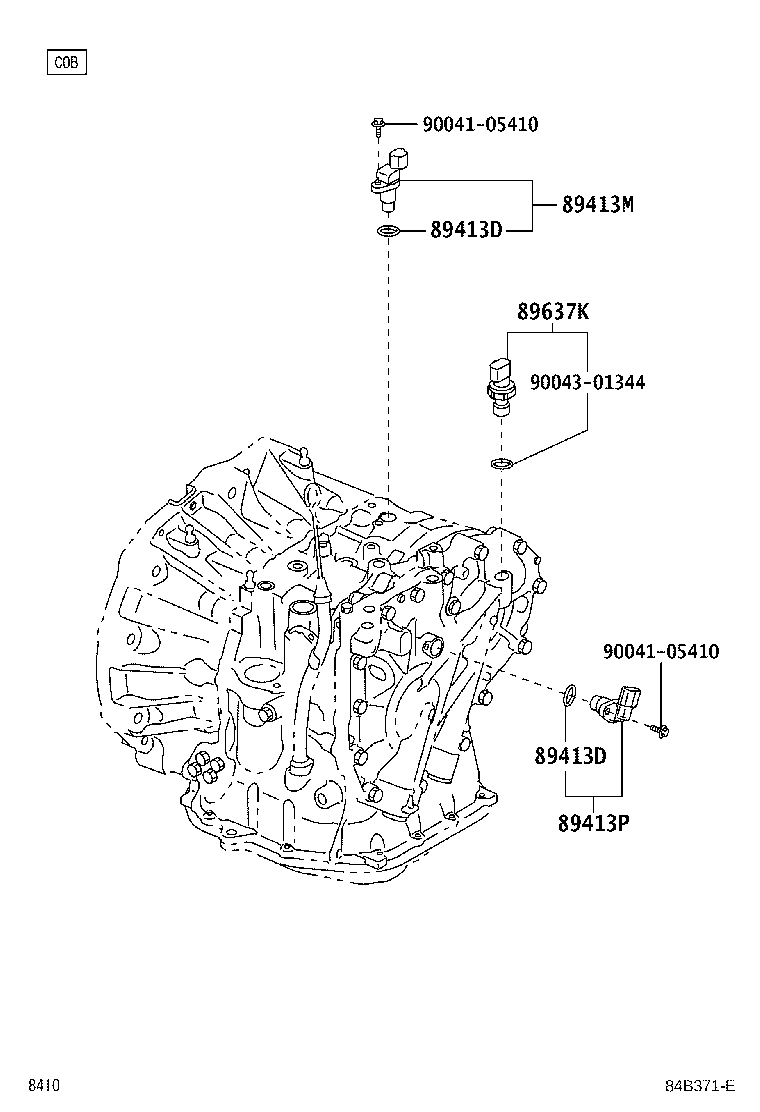

ILLUST NO. 1 OF 2(1002- )KGC3#

Click highlighted areas on diagram

C0B

diagram 89413D 89413D 89413M 89413P 89637K 9004105410 9004105410 9004301344
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

KGC3#

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

KGC3#

 2
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-97202

KGC3#

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-B2010

KGC3#

 1
89637K - SENSOR, OIL PRESSURE
89637-B2010

KGC3#

 1
Common parts
90041-05410
90043-01344
