KGC30-AHEAK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )

Click highlighted areas on diagram

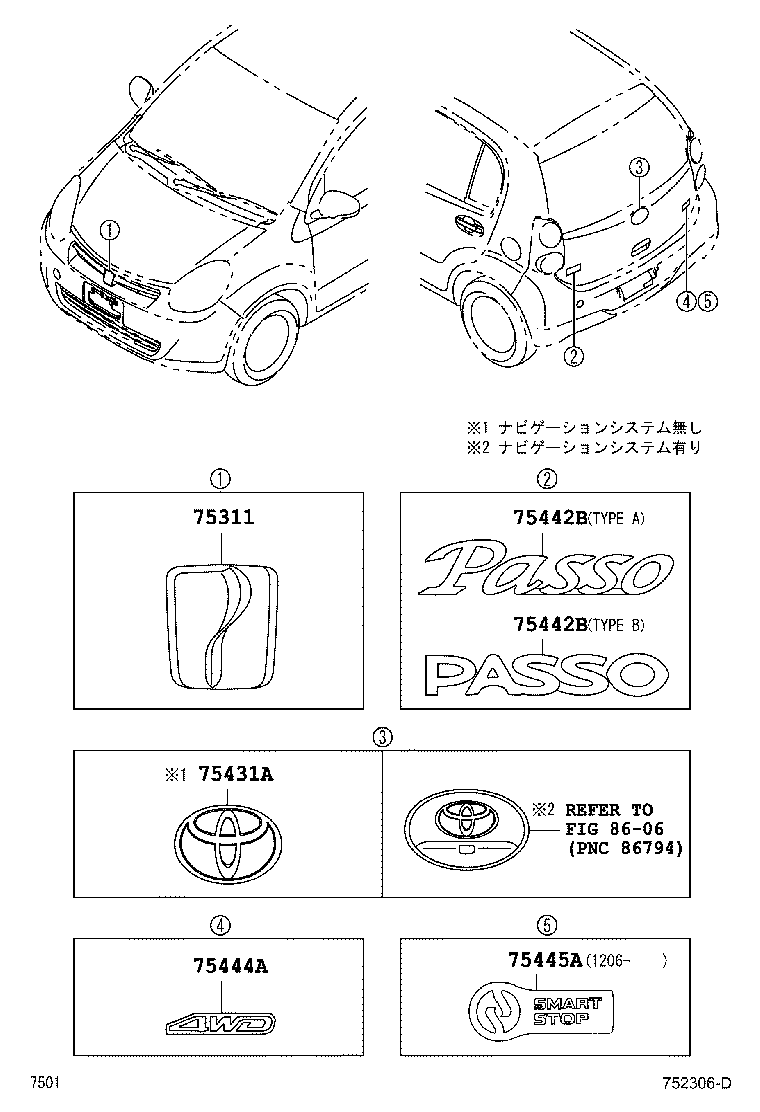

diagram 75311 75431A 75442B 75442B 75444A 75445A 8606
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-B1021

KGC3#,NGC30

 1
75431A - EMBLEM, BACK DOOR, NO.1
75431-B1070

KGC3#,NGC30

TOYOTA,ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP

 1
75431-B1080

KGC3#,NGC30

TOYOTA

 1
75431-B1070

KGC3#,NGC30

TOYOTA

 1
75431-B1080

KGC3#,NGC30

TOYOTA,ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP

 1
75442B - PLATE, BACK DOOR NAME, NO.2
75442-B1130

KGC3#,NGC30..G,X

PASSO,ﾀｲﾌﾟ B

 1
75442B - PLATE, BACK DOOR NAME, NO.2
75442-B1130

KGC3#,NGC30..G,X

PASSO,ﾀｲﾌﾟ B

 1
Linked diagrams
8606
