KGC30-AHEAK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )

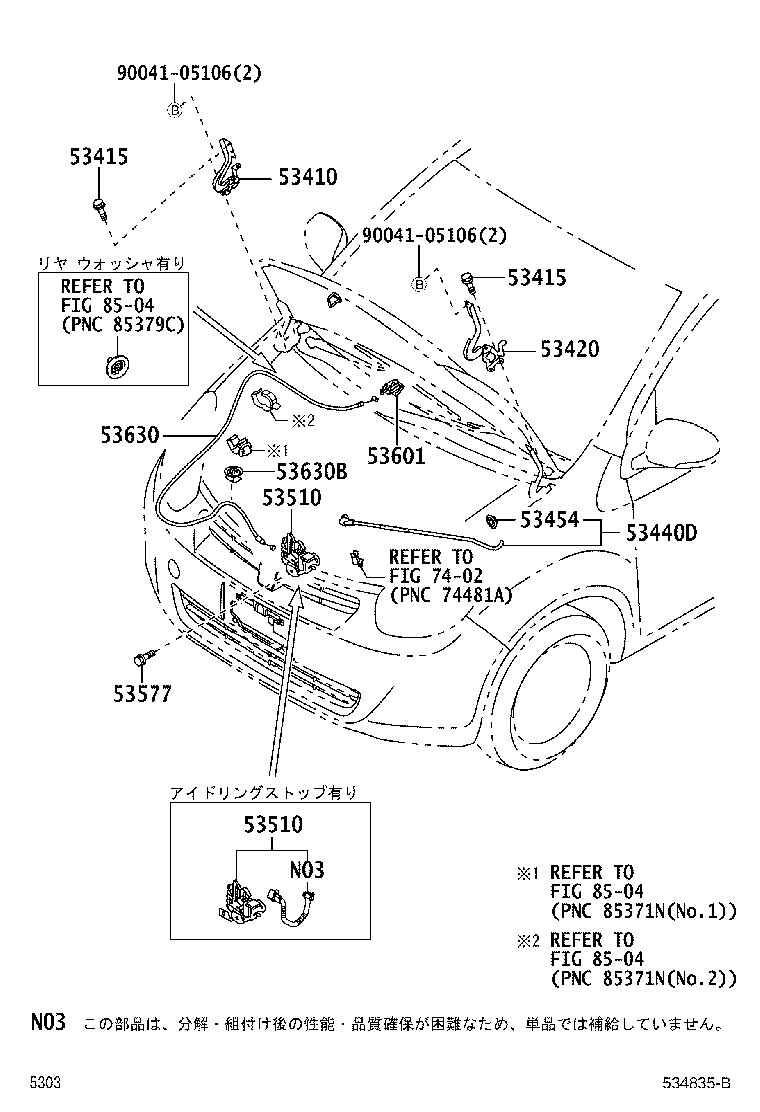

Click highlighted areas on diagram

diagram 53410 53415 53415 53420 53440D 53454 53510 53510 53577 53601 53630 53630B 7402 8504 8504 8504 9004105106 9004105106
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-B1040

KGC3#,NGC30

 1
53415 - BOLT, HOOD HINGE
91631-G0614

KGC3#,NGC30

 4
53415 - BOLT, HOOD HINGE
91631-G0614

KGC3#,NGC30

 4
53420 - HINGE ASSY, HOOD, LH
53402-B1040

KGC3#,NGC30

 1
53440D - SUPPORT ASSY, HOOD
53440-B1050

KGC3#,NGC30

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-B4010

KGC3#,NGC30

 1
53510 - LOCK ASSY, HOOD
53510-B1070

KGC3#,NGC30

 1
53510 - LOCK ASSY, HOOD
53510-B1070

KGC3#,NGC30

 1
53577 - BOLT, HOOD LOCK
91511-G0612

KGC3#,NGC30

 3
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-B2010E4

KGC3#,NGC30..G,X

LINEN BEIGE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-B1070

KGC3#..X

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ有り

 1
53630-B1100

KGC3#..X

 1
53630-B1070

KGC3#,NGC30..G,HANA

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-08043

KGC3#,NGC30

 1
Common parts
90041-05106
Linked diagrams
7402
8504
