KGC30-AHEAK (2010)
Toyota Passo
(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

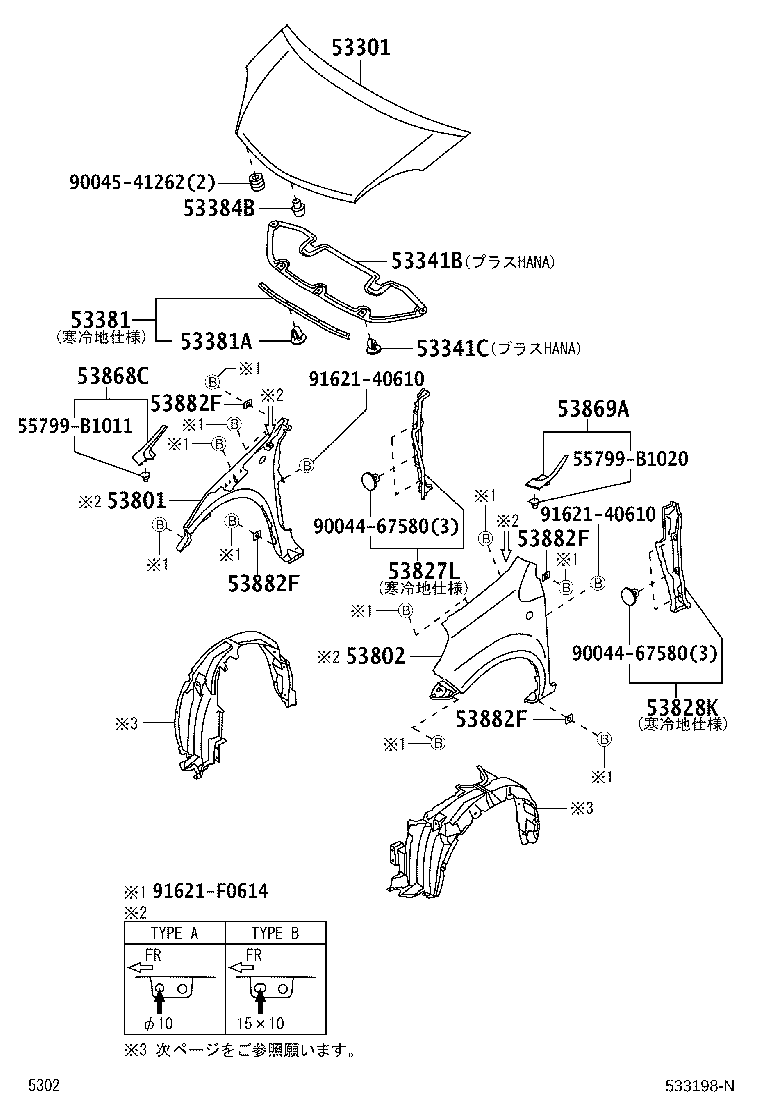

| 53301 - HOOD SUB-ASSY | ||||
| 53301-B1110 |
KGC3#,NGC30 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-B1070 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
KGC3#,NGC30 寒冷地仕様 |
7 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-B2010 |
KGC3#,NGC30 |
3 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-B1200 |
KGC30,NGC30..G,X 沖縄仕様&寒冷地仕様,ﾀｲﾌﾟ A |
1 | ||
| 53811-B1200 |
KGC30,NGC30..G,X 沖縄仕様,ﾀｲﾌﾟ A |
1 | ||
| 53811-B1200 |
KGC30,NGC30..G,X 寒冷地仕様,ﾀｲﾌﾟ A |
1 | ||
| 53811-B1220 |
KGC30,NGC30..G,X ﾀｲﾌﾟ A |
1 | ||
| 53811-B1201 |
KGC30,NGC30..G,X 沖縄仕様,ﾀｲﾌﾟ B |
1 | ||
| 53811-B1201 |
KGC30,NGC30..G,X 沖縄仕様&寒冷地仕様,ﾀｲﾌﾟ B |
1 | ||
| 53811-B1201 |
KGC30,NGC30..G,X 寒冷地仕様,ﾀｲﾌﾟ B |
1 | ||
| 53811-B1221 |
KGC30,NGC30..G,X ﾀｲﾌﾟ B |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-B1200 |
KGC30,NGC30..G,X 沖縄仕様&寒冷地仕様,ﾀｲﾌﾟ A |
1 | ||
| 53812-B1200 |
KGC30,NGC30..G,X 寒冷地仕様,ﾀｲﾌﾟ A |
1 | ||
| 53812-B1200 |
KGC30,NGC30..G,X 沖縄仕様,ﾀｲﾌﾟ A |
1 | ||
| 53812-B1201 |
KGC30,NGC30..G,X 沖縄仕様,ﾀｲﾌﾟ B |
1 | ||
| 53812-B1220 |
KGC30,NGC30..G,X ﾀｲﾌﾟ A |
1 | ||
| 53812-B1221 |
KGC30,NGC30..G,X ﾀｲﾌﾟ B |
1 | ||
| 53812-B1201 |
KGC30,NGC30..G,X 寒冷地仕様,ﾀｲﾌﾟ B |
1 | ||
| 53812-B1201 |
KGC30,NGC30..G,X 沖縄仕様&寒冷地仕様,ﾀｲﾌﾟ B |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-B1050 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-B1050 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 53868C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-B1061 |
KGC3#,NGC30 |
1 | ||
| 53868-B1060 |
KGC3#,NGC30 |
1 | ||
| 53869A - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH | ||||
| 53869-B1060 |
KGC3#,NGC30 |
1 | ||
| 53869-B1061 |
KGC3#,NGC30 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-B1010 |
KGC3#,NGC30 |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-B1010 |
KGC3#,NGC30 |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-B1010 |
KGC3#,NGC30 |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-B1010 |
KGC3#,NGC30 |
4 | ||
| Common parts | ||||
| 55799-B1011 | ||||
| 55799-B1020 | ||||
| 90044-67580 | ||||
| 90045-41262 | ||||
| 91621-40610 | ||||
| 91621-F0614 | ||||
(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

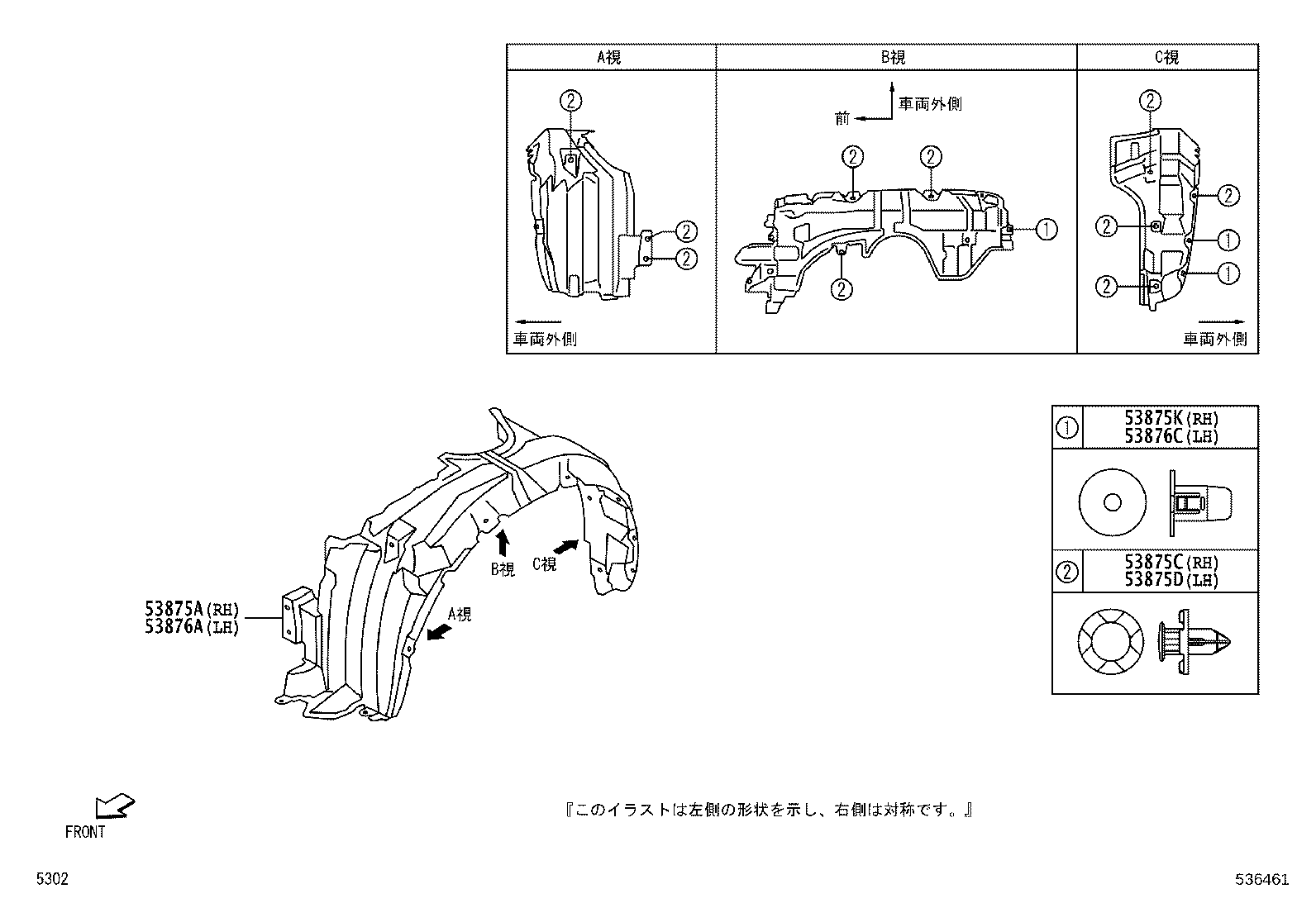

| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-B1090 |
KGC3#,NGC30 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90044-68320 |
KGC3#,NGC30 |
10 | ||
| 53875D - CLIP, FRONT FENDER LINER, NO.2 | ||||
| 90044-68320 |
KGC3#,NGC30 |
10 | ||
| 53875K - GROMMET, SCREW | ||||
| 90041-89021 |
KGC3#,NGC30 |
3 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-B1090 |
KGC3#,NGC30 |
1 | ||
| 53876C - GROMMET, SCREW | ||||
| 90041-89021 |
KGC3#,NGC30 |
3 | ||
