KGC30-AHEAK (2014)

Toyota Passo

Production Apr 2014 - Apr 2016
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1404- )1KRFE

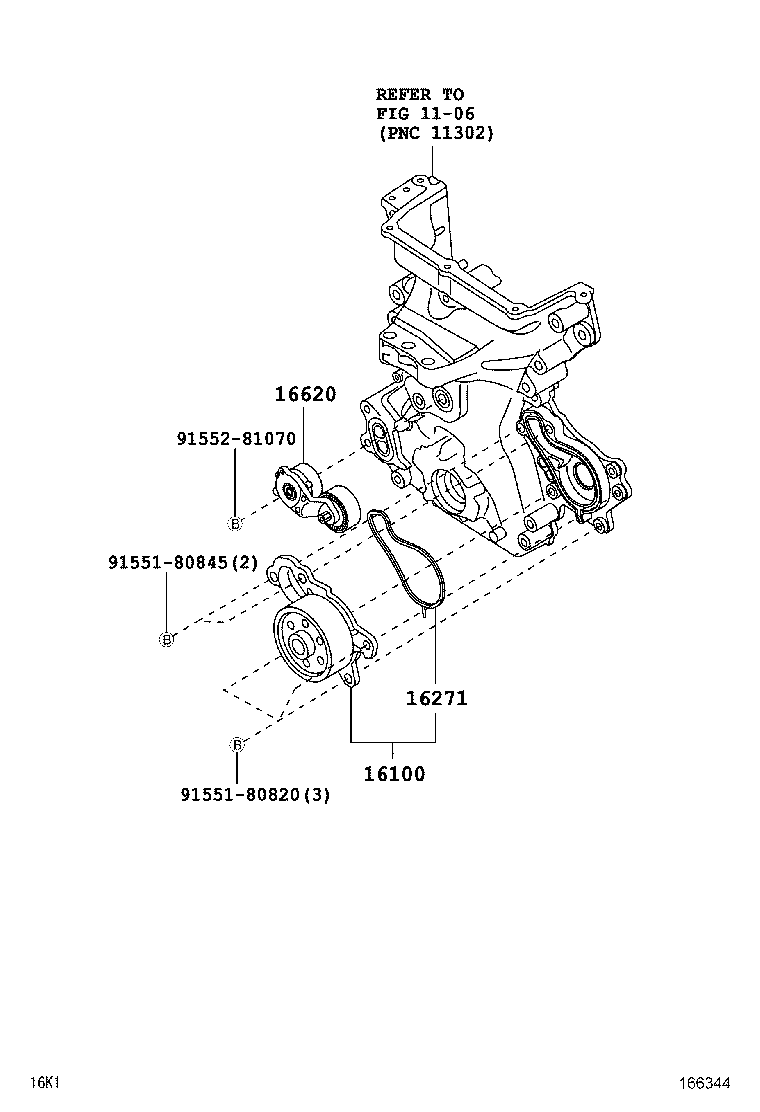

Click highlighted areas on diagram

diagram 1106 16100 16271 16620 9155180820 9155180845 9155281070
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-80012

1KRFE..KGC3#

 1
16100-80007

1KRFE..KGC3#

 1
16271 - GASKET, WATER PUMP
16271-40030

1KRFE..KGC3#

 1
16271-40020

1KRFE..KGC3#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-40020

1KRFE..KGC3#

 1
Common parts
91551-80820
91551-80845
91552-81070
Linked diagrams
1106
