KGC15-AHSCK (2006)
Toyota Passo
Production
Dec 2006
-
Feb 2010
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

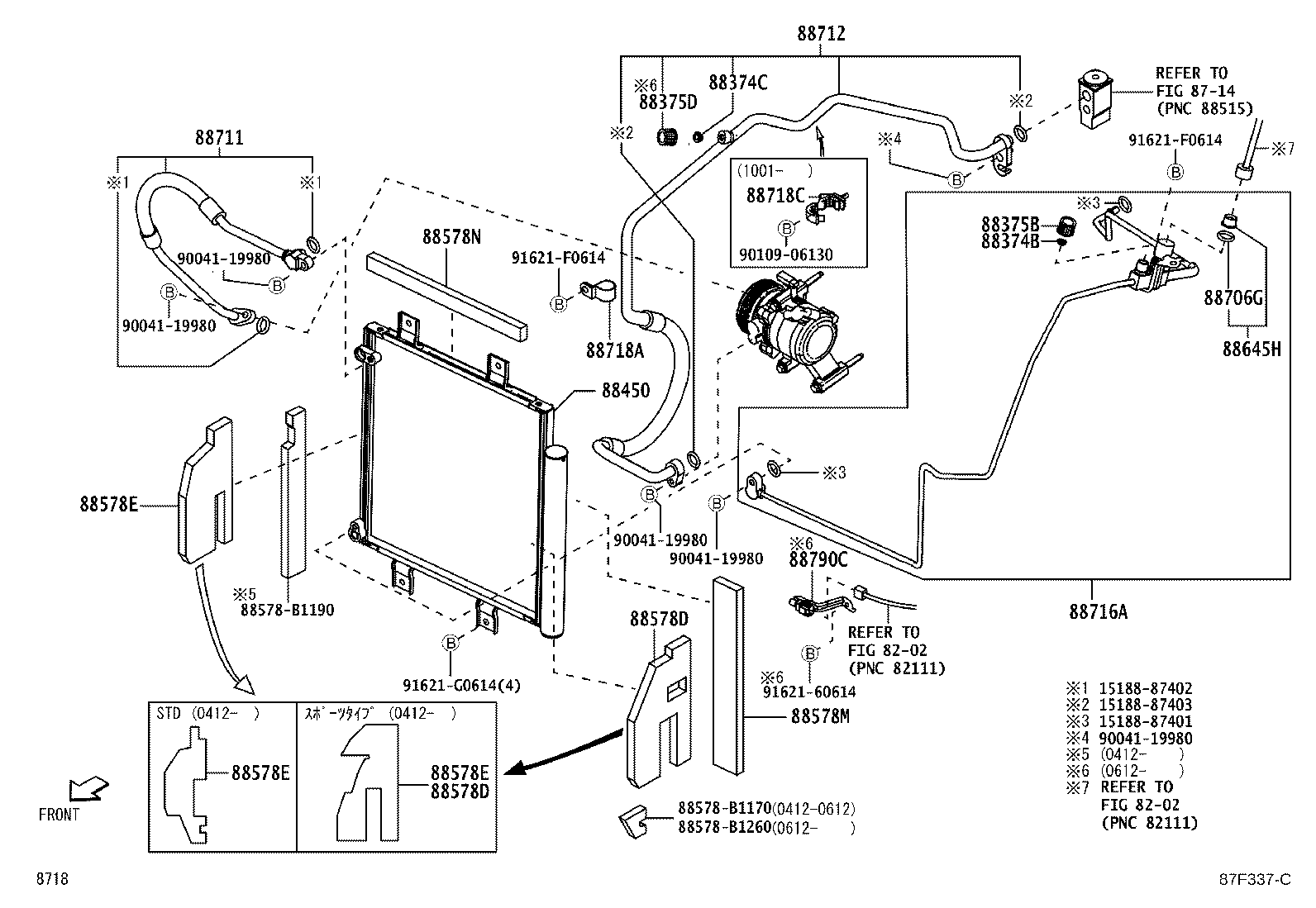

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
KGC1#,QNC10 |
1 | ||
| 88374-87601 |
KGC1#,QNC10 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
KGC1#,QNC10 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87603 |
KGC1#,QNC10 |
1 | ||
| 88375-87603 |
KGC1#,QNC10 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87601 |
KGC1#,QNC10 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-B1010 |
KGC1#,QNC10 |
1 | ||
| 88450-B1030 |
KGC1#,QNC10 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-B1020 |
KGC1#,QNC10..G,X |
1 | ||
| 88578-B1240 |
KGC15,QNC10..G,X |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-B1020 |
KGC1#,QNC10..G,X |
1 | ||
| 88578-B1240 |
KGC15,QNC10..G,X |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-B1250 |
KGC1#,QNC10..G,X ｽﾀﾝﾀﾞｰﾄﾞ |
1 | ||
| 88578-B1010 |
KGC1#,QNC10 ｽﾀﾝﾀﾞｰﾄﾞ |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-B1250 |
KGC1#,QNC10..G,X ｽﾀﾝﾀﾞｰﾄﾞ |
1 | ||
| 88578-B1010 |
KGC1#,QNC10 ｽﾀﾝﾀﾞｰﾄﾞ |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-B1250 |
KGC1#,QNC10..G,X ｽﾀﾝﾀﾞｰﾄﾞ |
1 | ||
| 88578-B1010 |
KGC1#,QNC10 ｽﾀﾝﾀﾞｰﾄﾞ |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-B1030 |
KGC1#,QNC10 |
1 | ||
| 88578-B1030 |
KGC1#,QNC10 |
1 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-B1040 |
KGC1#,QNC10 |
1 | ||
| 88578-B1160 |
KGC1#,QNC10 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-87602 |
KGC1#,QNC10 |
1 | ||
| 88645-87602 |
KGC1#,QNC10 ･ |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 15188-B5090 |
KGC1#,QNC10 |
1 | ||
| 15188-B5090 |
KGC1#,QNC10 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B1010 |
KGC1# |
1 | ||
| 88711-B1010 |
KGC1#..G,X |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B1050 |
KGC1# |
1 | ||
| 88712-B1010 |
KGC1# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-B1050 |
KGC15,QNC10 |
1 | ||
| 88716-B1030 |
KGC1#,QNC10 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B1040 |
KGC1# |
1 | ||
| 88718-B1020 |
KGC1# |
1 | ||
| Common parts | ||||
| 15188-87401 | ||||
| 15188-87402 | ||||
| 15188-87403 | ||||
| 88578-B1170 | ||||
| 88578-B1190 | ||||
| 88578-B1260 | ||||
| 90041-19980 | ||||
| 90109-06130 | ||||
| 91621-60614 | ||||
| 91621-F0614 | ||||
| 91621-G0614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8714 | ||||
