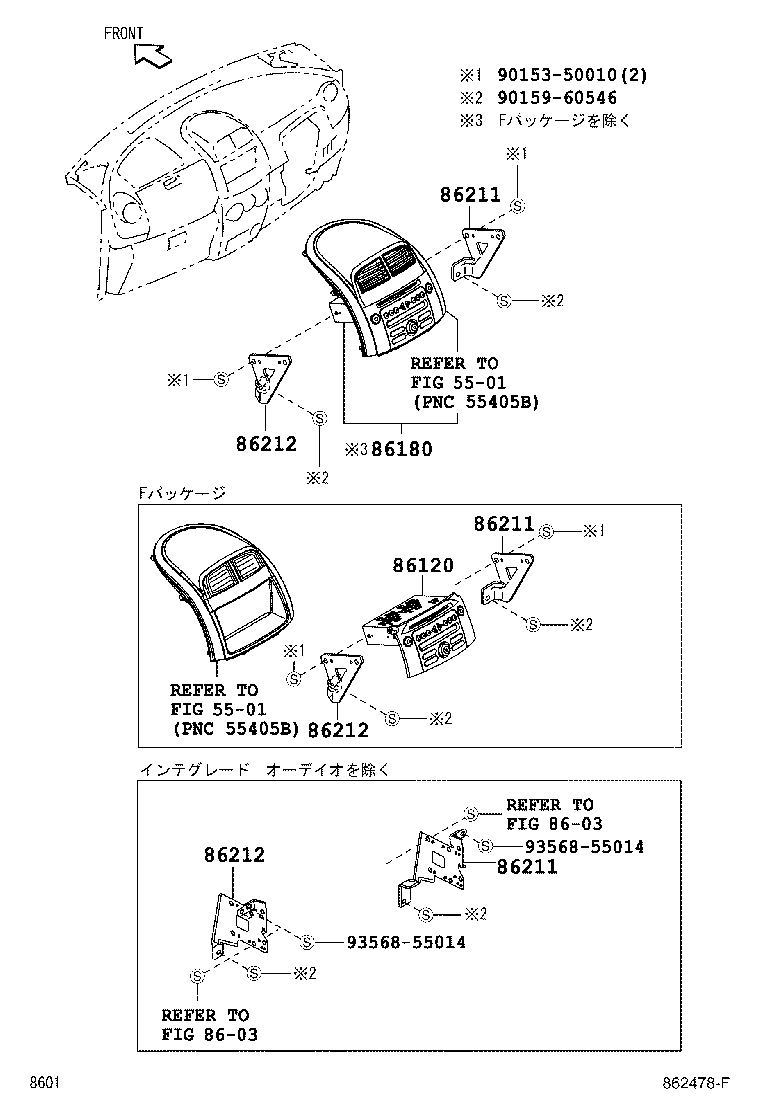

Toyota Passo KGC15 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-B1060	KGC10..X;KGC15..G CLARION,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓ梶[ｵｰﾃﾞｨｵ 10CM*2	02/2008 - 02/2010	1
86120-B1060	KGC10..X;KGC15..G CLARION,ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
86120-B1110	KGC10..X;KGC15..G CLARION,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−vﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86180 - TUNER ASSY, STEREO COMPONENT
86180-B1010S1	KGC1#,QNC10..G,X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,-,TRIM1#	05/2004 - 12/2005	1
86180-B1010S1	KGC1#,QNC10..G,X 小島ﾌﾟﾚｽ,-,TRIM1#	05/2004 - 12/2005	1
86180-B1101C0	KGC1#,QNC10..G,X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,BLACK,TRIM1#,ﾒｰｶｰ:ｺｼﾞﾏﾌﾟﾚｽ	12/2006 - 06/2007	1
86180-B1101C0	KGC15,QNC10..G ｵｰﾃﾞｨｵ−G−BOOK,BLACK,TRIM1#,ﾒｰｶｰ:ｺｼﾞﾏﾌﾟﾚｽ	12/2006 - 06/2007	1
86180-B1101B0	KGC15,QNC10..G ｵｰﾃﾞｨｵ−G−BOOK,TITAN,TRIM1#,ﾒｰｶｰ:ｺｼﾞﾏﾌﾟﾚｽ	06/2007 - 02/2010	1
86180-B1101B0	KGC1#,QNC10..G,X 小島ﾌﾟﾚｽ,TITAN,TRIM1#	06/2007 - 02/2010	1
86180-B1101B0	KGC1#,QNC10..G,X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,TITAN,TRIM1#,ﾒｰｶｰ:ｺｼﾞﾏﾌﾟﾚｽ	06/2007 - 02/2010	1
86180-B1101C0	KGC1#,QNC10..G,X 小島ﾌﾟﾚｽ,BLACK,TRIM1#	12/2006 - 06/2007	1
86211 - BRACKET, RADIO, NO.1
86211-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
86211-B1020	QNC10;KGC15..G ｵｰﾃﾞｨｵ−G−BOOK	12/2006 - 02/2010	1
86211-B1010	KGC1#,QNC10	12/2006 - 02/2010	1
86211-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	12/2006 - 02/2010	1
86211-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ10CM*2	02/2008 - 02/2010	1
86211-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	05/2004 - 12/2006	1
86211-B1030	KGC15..G ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
86211-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86211 - BRACKET, RADIO, NO.1
86211-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
86211-B1020	QNC10;KGC15..G ｵｰﾃﾞｨｵ−G−BOOK	12/2006 - 02/2010	1
86211-B1010	KGC1#,QNC10	12/2006 - 02/2010	1
86211-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	12/2006 - 02/2010	1
86211-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ10CM*2	02/2008 - 02/2010	1
86211-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	05/2004 - 12/2006	1
86211-B1030	KGC15..G ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
86211-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86211 - BRACKET, RADIO, NO.1
86211-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
86211-B1020	QNC10;KGC15..G ｵｰﾃﾞｨｵ−G−BOOK	12/2006 - 02/2010	1
86211-B1010	KGC1#,QNC10	12/2006 - 02/2010	1
86211-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	12/2006 - 02/2010	1
86211-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ10CM*2	02/2008 - 02/2010	1
86211-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	05/2004 - 12/2006	1
86211-B1030	KGC15..G ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
86211-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86212 - BRACKET, RADIO, NO.2
86212-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	05/2004 - 12/2006	1
86212-B1020	QNC10;KGC15..G ｵｰﾃﾞｨｵ−G−BOOK	12/2006 - 02/2010	1
86212-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
86212-B1010	KGC1#,QNC10	12/2006 - 02/2010	1
86212-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	12/2006 - 02/2010	1
86212-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ10CM*2	02/2008 - 02/2010	1
86212-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86212-B1030	KGC15..G ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
86212 - BRACKET, RADIO, NO.2
86212-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	05/2004 - 12/2006	1
86212-B1020	QNC10;KGC15..G ｵｰﾃﾞｨｵ−G−BOOK	12/2006 - 02/2010	1
86212-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
86212-B1010	KGC1#,QNC10	12/2006 - 02/2010	1
86212-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	12/2006 - 02/2010	1
86212-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ10CM*2	02/2008 - 02/2010	1
86212-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86212-B1030	KGC15..G ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
86212 - BRACKET, RADIO, NO.2
86212-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	05/2004 - 12/2006	1
86212-B1020	QNC10;KGC15..G ｵｰﾃﾞｨｵ−G−BOOK	12/2006 - 02/2010	1
86212-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
86212-B1010	KGC1#,QNC10	12/2006 - 02/2010	1
86212-B1020	KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ	12/2006 - 02/2010	1
86212-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ10CM*2	02/2008 - 02/2010	1
86212-B1030	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ (D)&ｵｰﾃﾞｨｵ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝﾌﾗｯｼｭﾒﾓﾘｰ 10CM2	02/2008 - 02/2010	1
86212-B1030	KGC15..G ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭﾒﾓﾘｰｵｰﾃﾞｨｵ 10CM*2	12/2006 - 02/2008	1
Common parts
90153-50010
90159-60546
93568-55014
Linked diagrams
5501
8603

KGC15-AHSCK (2006)

(0405-1002)

(0405-1002)QNC10 ; (0405-1002)KGC1#..G,X

(0612-1002)

Part Price Details

Part #	Description	Period	Qty

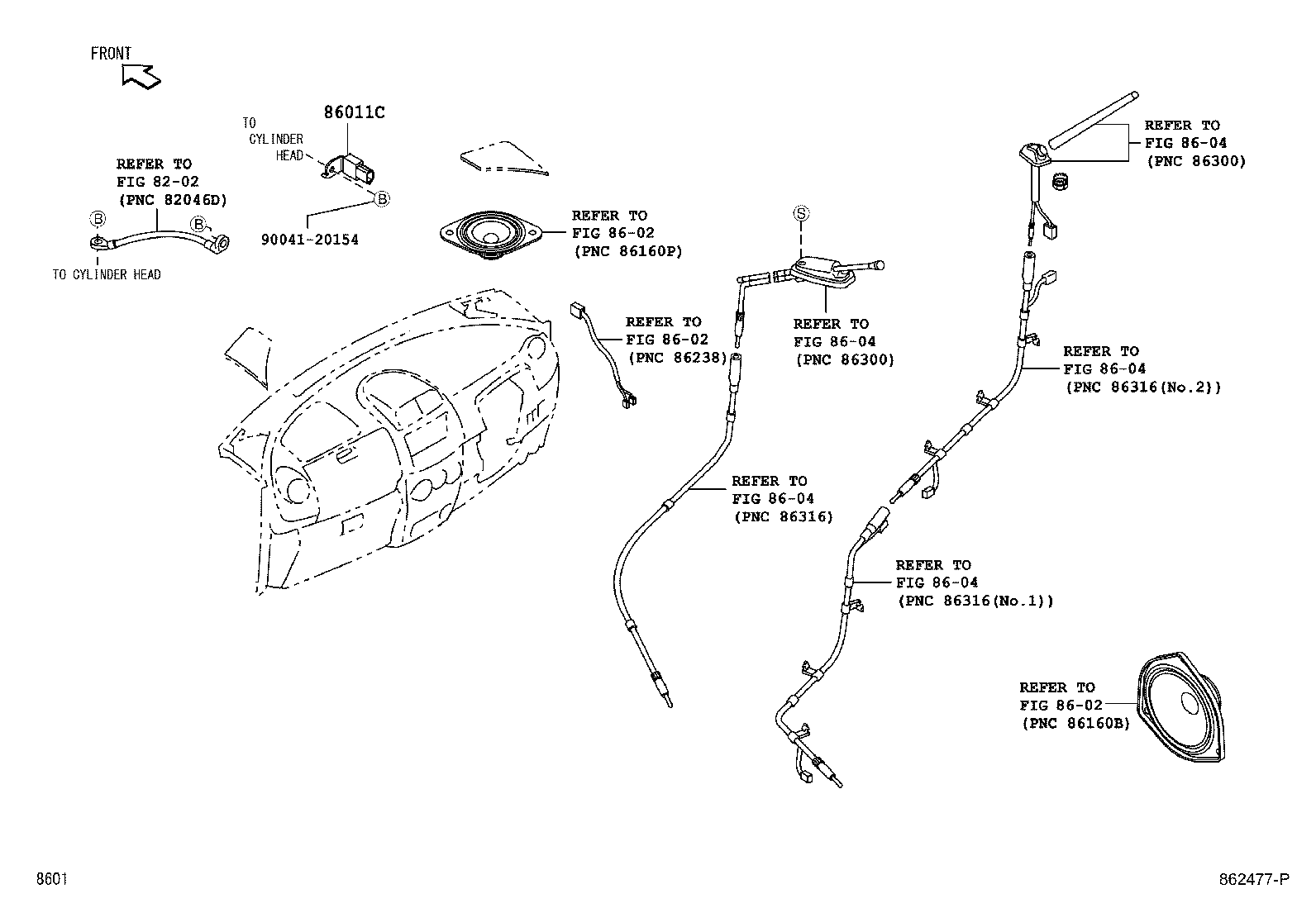

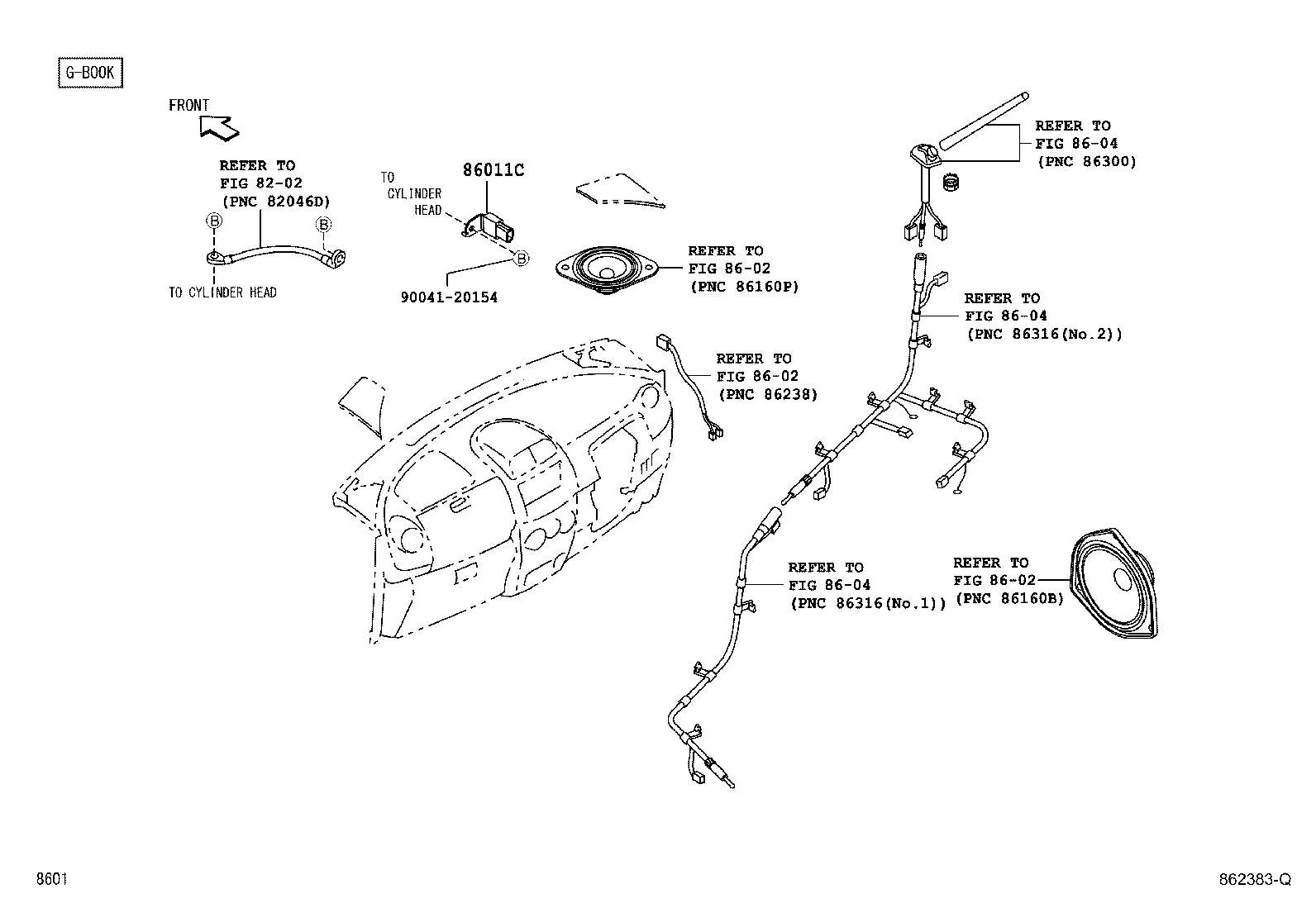

86011C - FILTER, NOISE
90049-52006	KGC1#	05/2004 - 12/2006	1
90049-52006	KGC1#	12/2006 - 02/2010	1
Common parts
90041-20154
Linked diagrams
8202
8602
8604
