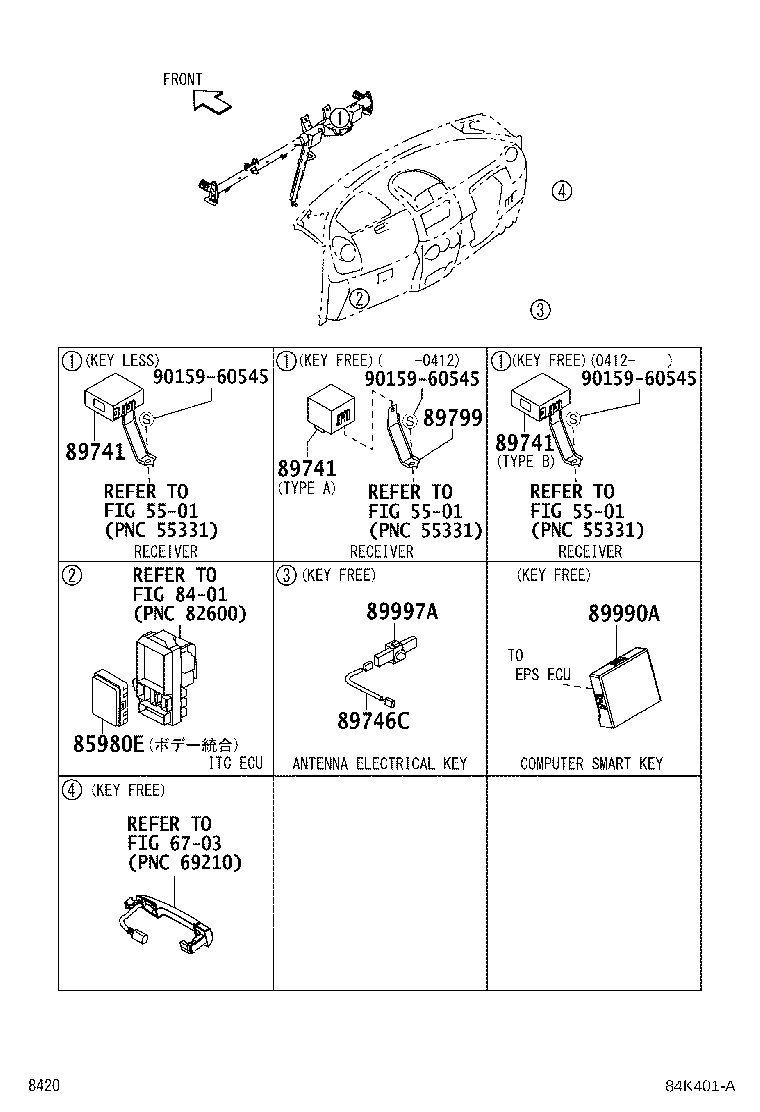

Toyota Passo KGC15 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
85980E - RELAY ASSY, DOOR CONTROL
85980-B1021	KGC1#,QNC10	03/2009 - 02/2010	1
85980-B2030	KGC1#,QNC10 品番ﾗﾍﾞﾙ=85980−B2030	05/2004 - 10/2004	1
85980-B1020	KGC1#,QNC10	12/2006 - 02/2009	1
89741 - RECEIVER, DOOR CONTROL
89741-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
89741-B1021	KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ﾀｲﾌﾟ A	05/2004 - 11/2004	1
89741-B1070	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741-B1070	KGC1#,QNC10	12/2006 - 02/2010	1
89741-B1022	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741-B1022	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2008 - 02/2010	1
89741-B1010	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ	05/2004 - 12/2006	1
89741-B1070	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741 - RECEIVER, DOOR CONTROL
89741-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
89741-B1021	KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ﾀｲﾌﾟ A	05/2004 - 11/2004	1
89741-B1070	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741-B1070	KGC1#,QNC10	12/2006 - 02/2010	1
89741-B1022	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741-B1022	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2008 - 02/2010	1
89741-B1010	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ	05/2004 - 12/2006	1
89741-B1070	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741 - RECEIVER, DOOR CONTROL
89741-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
89741-B1021	KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ﾀｲﾌﾟ A	05/2004 - 11/2004	1
89741-B1070	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741-B1070	KGC1#,QNC10	12/2006 - 02/2010	1
89741-B1022	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89741-B1022	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2008 - 02/2010	1
89741-B1010	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ	05/2004 - 12/2006	1
89741-B1070	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-B1040	KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&SRS ｴｱﾊﾞｯｸﾞ−D/P､ｻｲﾄﾞ､ｴｱｶｰﾃﾝ	02/2008 - 02/2010	1
89746-B1040	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2008 - 02/2010	1
89746-B1040	KGC15,QNC10..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&SRS ｴｱﾊﾞｯｸﾞ−D/P､ｻｲﾄﾞ､ｴｱｶｰﾃﾝ	12/2006 - 02/2010	1
89746-B1040	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89746-B1040	KGC15,QNC10..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ	12/2006 - 02/2010	1
89746-B1040	KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)	02/2008 - 02/2010	1
89799 - BRACKET, SMART DOOR CONTROL RECEIVER
89799-B1010	KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 10/2004	1
89990A - COMPUTER ASSY, SMART KEY
89990-B1040	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89990-B1010	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 11/2005	1
89990-B1040	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2008 - 02/2010	1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B4020	KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)	02/2008 - 02/2010	1
89997-B4020	KGC15,QNC10..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&SRS ｴｱﾊﾞｯｸﾞ−D/P､ｻｲﾄﾞ､ｴｱｶｰﾃﾝ	12/2006 - 02/2010	1
89997-B4020	KGC15,QNC10..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ	12/2006 - 02/2010	1
89997-B1020	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
89997-B4020	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	12/2006 - 02/2010	1
89997-B4020	KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2008 - 02/2010	1
89997-B4020	KGC15..G ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D)&SRS ｴｱﾊﾞｯｸﾞ−D/P､ｻｲﾄﾞ､ｴｱｶｰﾃﾝ	02/2008 - 02/2010	1
Common parts
90159-60545
Linked diagrams
5501
6703
8401

KGC15-AHSCK (2006)

(0405-1002)
