KGC15-AHSCK (2006)
Toyota Passo
Production
Dec 2006
-
Feb 2010
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

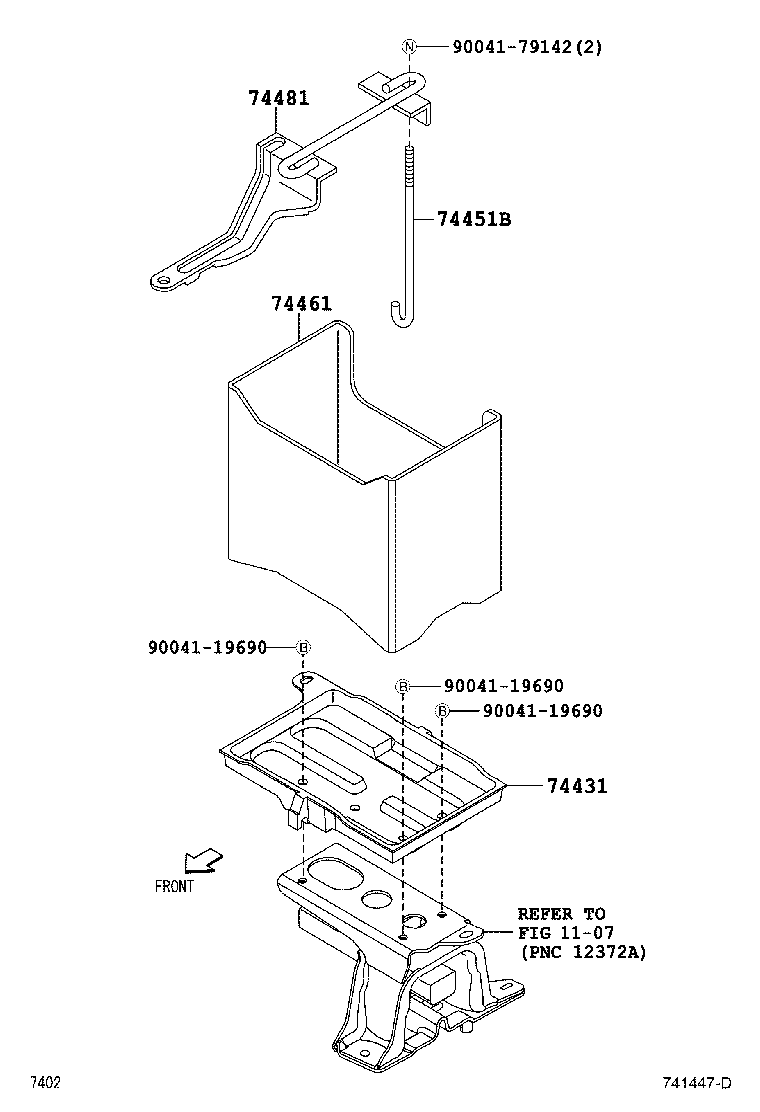

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74431 - TRAY, BATTERY | ||||
| 74411-B1010 |
KGC1#,QNC10 |
1 | ||
| 74411-B1010 |
KGC1#,QNC10 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-B1010 |
KGC1#,QNC10 |
2 | ||
| 74451-B1010 |
KGC1#,QNC10 |
2 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-97203 |
KGC1#,QNC10 |
1 | ||
| 74405-97203 |
KGC1#,QNC10 |
1 | ||
| 74405-B1010 |
KGC1#,QNC10 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-B1010 |
KGC1#,QNC10 |
1 | ||
| 74404-B1010 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 90041-19690 | ||||
| 90041-79142 | ||||
| Linked diagrams | ||||
| 1107 | ||||
