KGC15-AHSCK (2006)
Toyota Passo
Production
Dec 2006
-
Feb 2010
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)KGC15

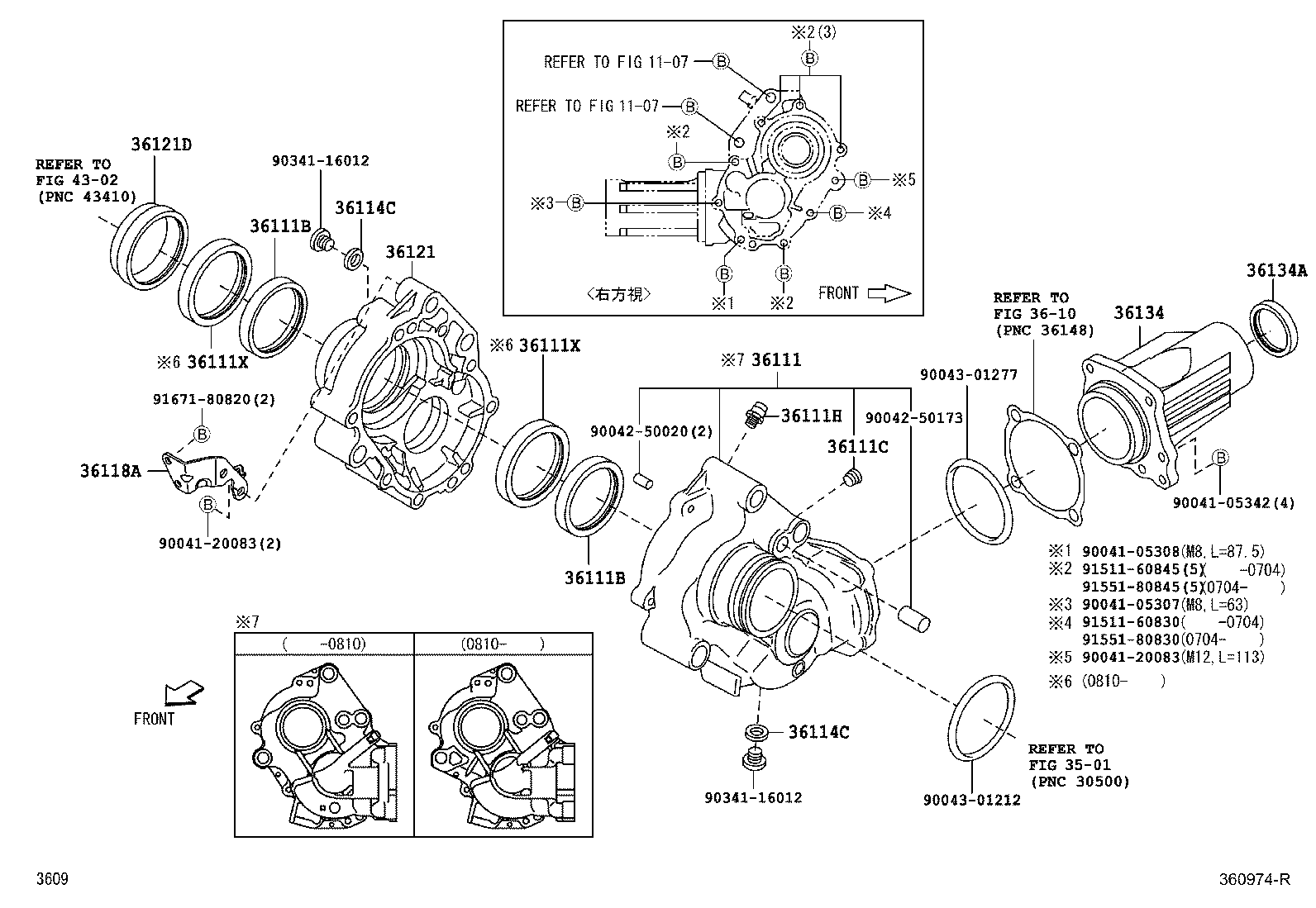

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36111 - CASE, TRANSFER | ||||
| 36103-B1010 |
KGC15 |
1 | ||
| 36103-B1030 |
KGC15 |
1 | ||
| 36103-B1010 |
KGC15 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90043-16019 |
KGC15 OD=62.5 |
2 | ||
| 90043-16019 |
KGC15 OD=62.5 |
2 | ||
| 90043-11408 |
KGC15 OD=57.5 |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90043-16019 |
KGC15 OD=62.5 |
2 | ||
| 90043-16019 |
KGC15 OD=62.5 |
2 | ||
| 90043-11408 |
KGC15 OD=57.5 |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90043-44020 |
KGC15 |
1 | ||
| 90043-44020 |
KGC15 |
1 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90049-15026 |
KGC15 |
1 | ||
| 90049-15026 |
KGC15 |
1 | ||
| 36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2 | ||||
| 90043-11409 |
KGC15 |
2 | ||
| 36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2 | ||||
| 90043-11409 |
KGC15 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90044-30178 |
KGC15 |
2 | ||
| 90044-30178 |
KGC15 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90044-30178 |
KGC15 |
2 | ||
| 90044-30178 |
KGC15 |
2 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-B1010 |
KGC15 |
1 | ||
| 36118-B1010 |
KGC15 |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-B1010 |
KGC15 ﾌﾞﾘｰｻﾞｱﾅﾅｼ |
1 | ||
| 36121-B1010 |
KGC15 ﾌﾞﾘｰｻﾞｱﾅﾅｼ |
1 | ||
| 36121-B1030 |
KGC15 ﾌﾞﾘｰｻﾞｱﾅｱﾘ |
1 | ||
| 36121D - SEAL, OIL(FOR TRANSFER CASE COVER) | ||||
| 90043-11333 |
KGC15 |
1 | ||
| 90043-11333 |
KGC15 |
1 | ||
| 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 36134-B1010 |
KGC15 |
1 | ||
| 36134-B1010 |
KGC15 |
1 | ||
| 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) | ||||
| 90043-11332 |
KGC15 |
1 | ||
| 90043-11332 |
KGC15 |
1 | ||
| Common parts | ||||
| 90041-05307 | ||||
| 90041-05308 | ||||
| 90041-05342 | ||||
| 90041-20083 | ||||
| 90042-50020 | ||||
| 90042-50173 | ||||
| 90043-01212 | ||||
| 90043-01277 | ||||
| 90341-16012 | ||||
| 91511-60830 | ||||
| 91511-60845 | ||||
| 91551-80830 | ||||
| 91551-80845 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3501 | ||||
| 3610 | ||||
| 4302 | ||||
