KGC15-AHSCK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

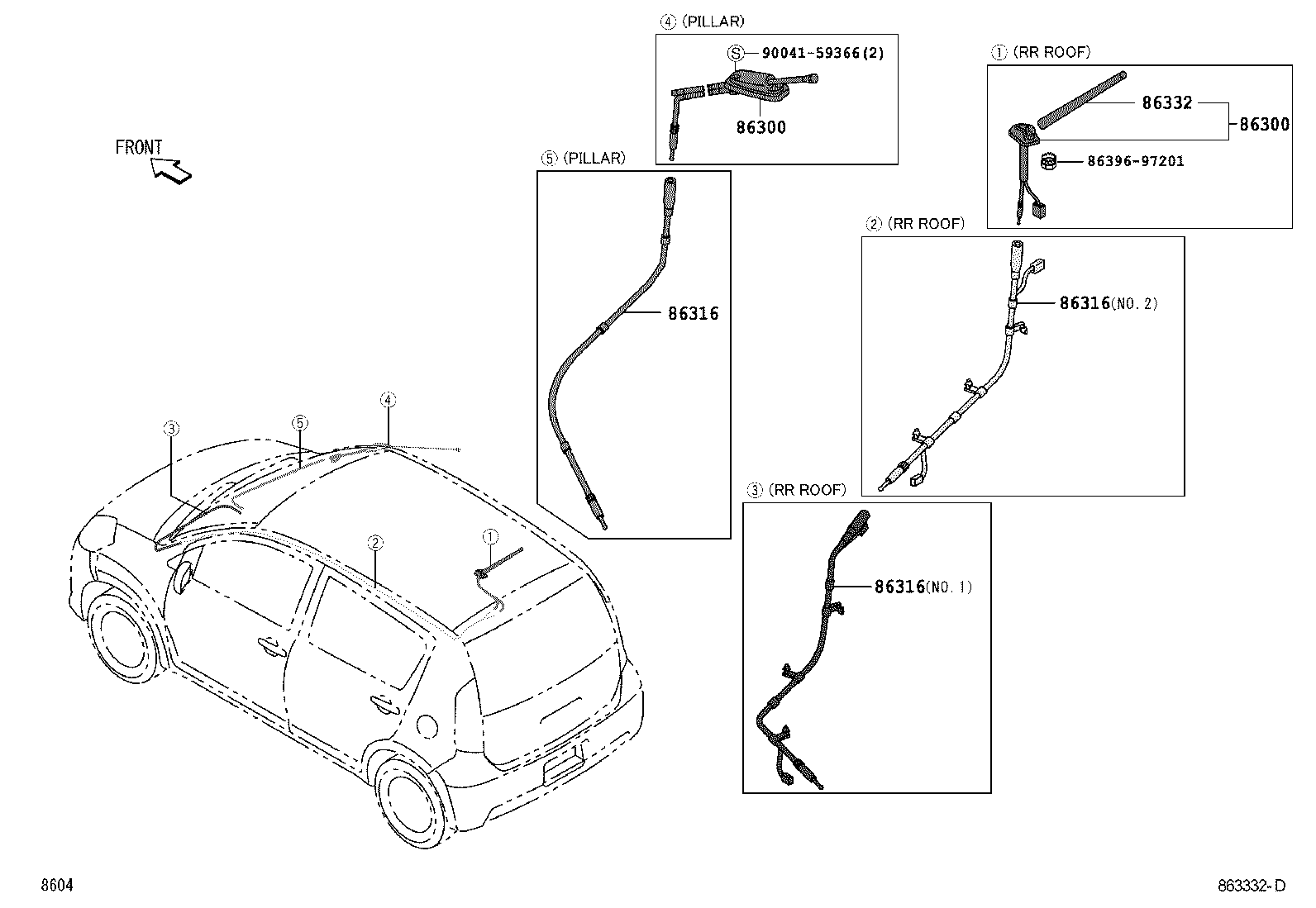

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-B1010 |
KGC1#,QNC10..G,X ﾋﾟﾗｰｱﾝﾃﾅ |
1 | ||
| 86300-B1030 |
KGC15,QNC10..G,RACY EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,ﾘﾔ ﾙｰﾌ ｱﾝﾃﾅ |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-B1010 |
KGC1#,QNC10..G,X ﾋﾟﾗｰｱﾝﾃﾅ |
1 | ||
| 86300-B1030 |
KGC15,QNC10..G,RACY EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,ﾘﾔ ﾙｰﾌ ｱﾝﾃﾅ |
1 | ||
| 86316 - CABLE, ANTENNA | ||||
| 86316-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 86316 - CABLE, ANTENNA | ||||
| 86316-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 86316 - CABLE, ANTENNA | ||||
| 86316-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 86332 - ROD, ANTENNA | ||||
| 86332-B1010 |
KGC15,QNC10..G,RACY EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK |
1 | ||
| Common parts | ||||
| 86396-97201 | ||||
| 90041-59366 | ||||
(0405-1002)

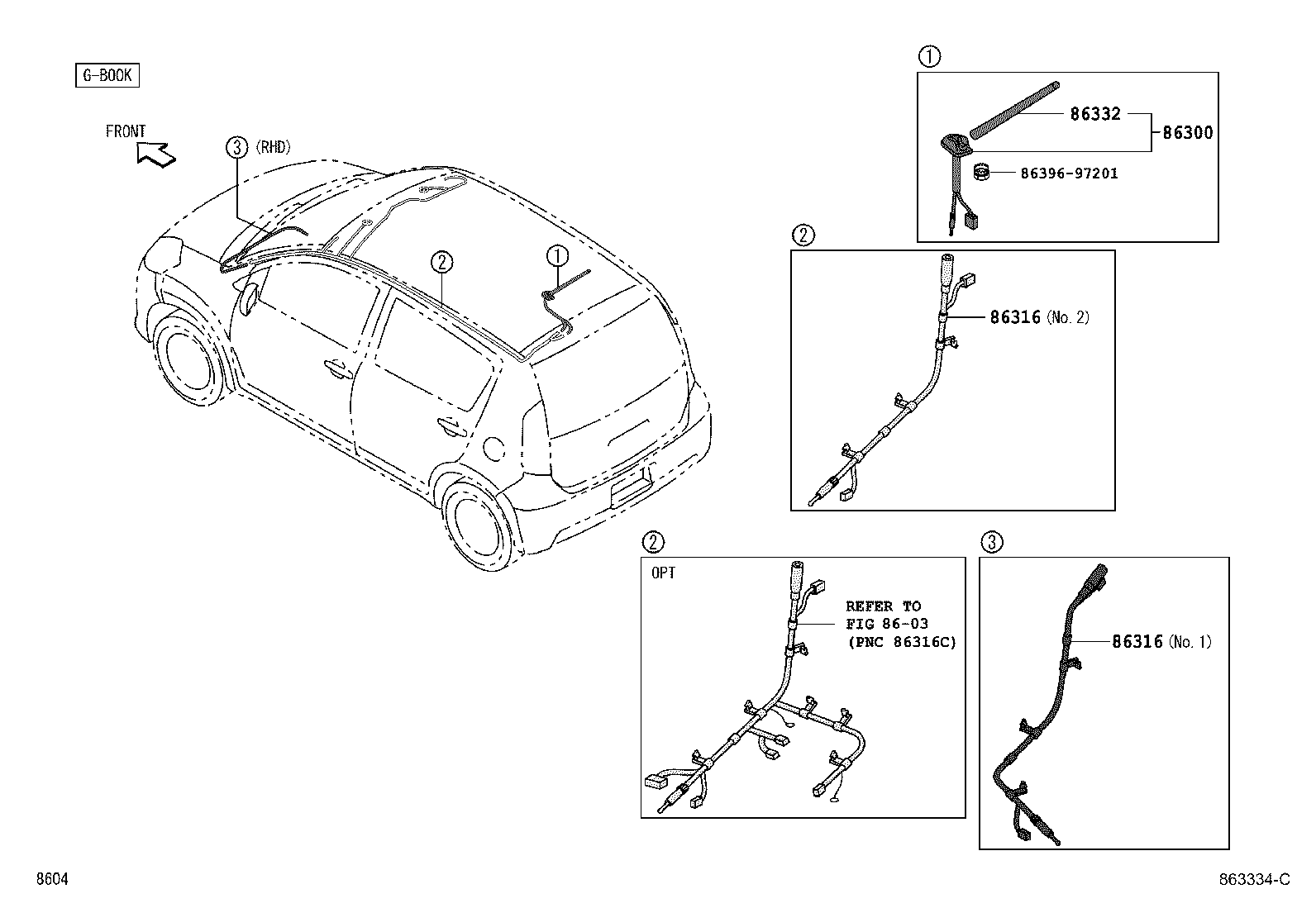

Click highlighted areas on diagram
G-BOOK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-B1010 |
KGC1#,QNC10..G,X ﾋﾟﾗｰｱﾝﾃﾅ |
1 | ||
| 86300-B1030 |
KGC15,QNC10..G,RACY EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,ﾘﾔ ﾙｰﾌ ｱﾝﾃﾅ |
1 | ||
| 86316 - CABLE, ANTENNA | ||||
| 86316-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 86316 - CABLE, ANTENNA | ||||
| 86316-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 86332 - ROD, ANTENNA | ||||
| 86332-B1010 |
KGC15,QNC10..G,RACY EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK |
1 | ||
| Common parts | ||||
| 86396-97201 | ||||
| Linked diagrams | ||||
| 8603 | ||||
