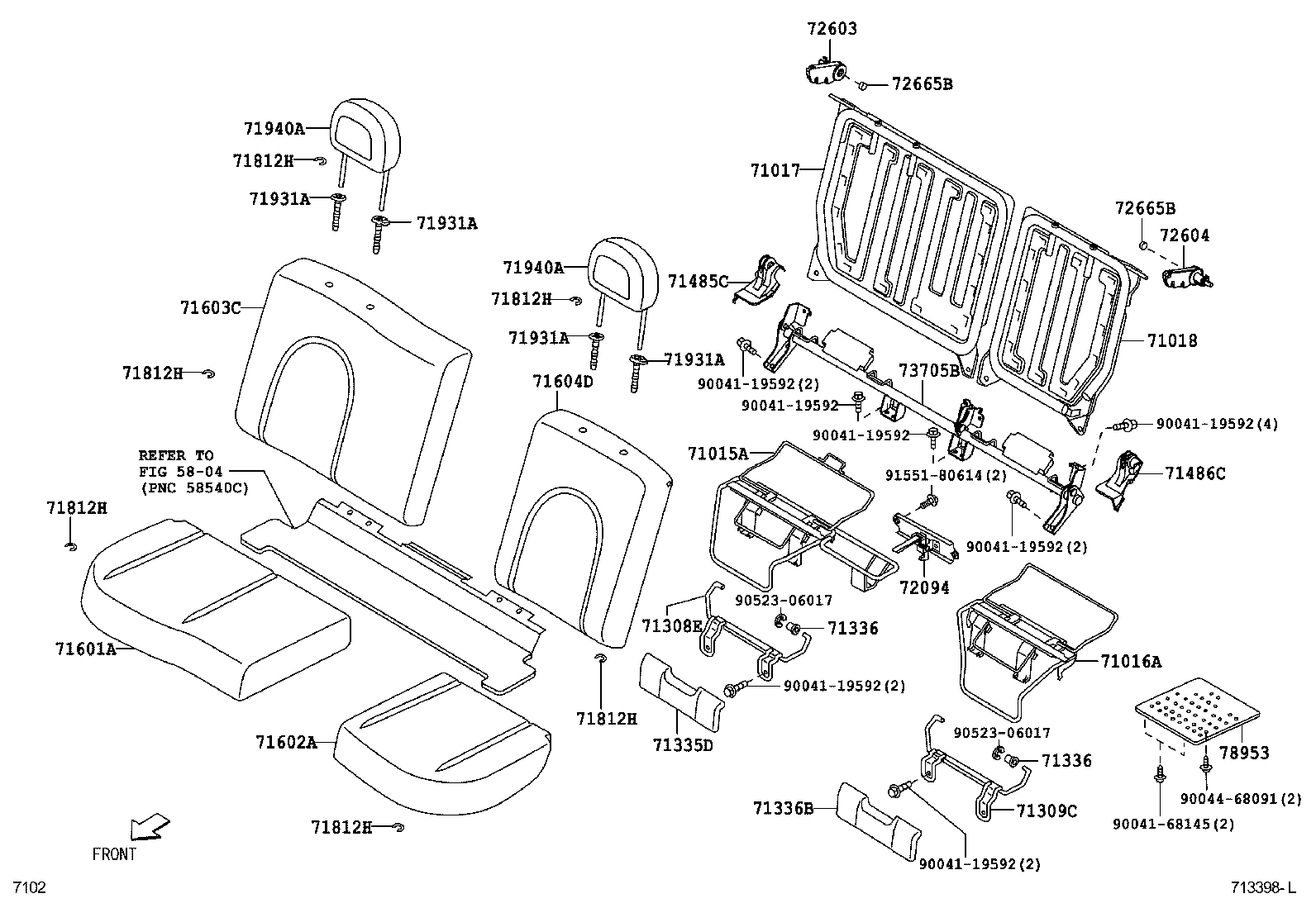

Toyota Passo KGC15 REAR SEAT & SEAT TRACK

Part #	Description	Period	Qty
71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH
71015-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH
71016-B1020	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71016-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-B1020	KGC1#,QNC10	05/2004 - 12/2006	1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-B1020	KGC1#,QNC10	05/2004 - 12/2006	1
71308E - LEG SUB-ASSY, REAR SEAT, RH
71033-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
71309C - LEG SUB-ASSY, REAR SEAT, REAR LH
71033-B1020	KGC1#,QNC10	05/2004 - 12/2006	1
71335D - PLATE, REAR SEAT LEG COVER, RH
71335-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
71336 - BUSH OR SPACER, REAR SEAT BACK HINGE
90043-86093	KGC1#,QNC10	05/2004 - 12/2006	4
71336 - BUSH OR SPACER, REAR SEAT BACK HINGE
90043-86093	KGC1#,QNC10	05/2004 - 12/2006	4
71336B - PLATE, REAR SEAT LEG COVER, LH
71336-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
71485C - COVER, REAR SEAT HINGE, RH
71485-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
71486C - COVER, REAR SEAT HINGE, LH
71486-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER
71601-B1030B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	05/2004 - 03/2005	1
71601-B1010E0	KGC15,QNC10..G BEIGE,TRIM1#	03/2005 - 12/2006	1
71601-B1030D0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	03/2005 - 12/2006	1
71601-B1010B0	KGC1#,QNC10..G,X BEIGE,TRIM1#	05/2004 - 03/2005	1
71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH
71602-B1010E0	KGC15,QNC10..G BEIGE,TRIM1#	05/2004 - 12/2006	1
71602-B1030B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	05/2004 - 03/2005	1
71602-B1030D0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	03/2005 - 12/2006	1
71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER
71603-B1010B0	KGC1#,QNC10..G,X BEIGE,TRIM1#	05/2004 - 03/2005	1
71603-B1060B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	05/2004 - 03/2005	1
71603-B1010E1	KGC15,QNC10..G BEIGE,TRIM1#	03/2005 - 12/2006	1
71603-B1060D1	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	03/2005 - 12/2006	1
71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH
71604-B1060B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	05/2004 - 03/2005	1
71604-B1010E1	KGC15,QNC10..G BEIGE,TRIM1#	03/2005 - 12/2006	1
71604-B1010B0	KGC1#,QNC10..G,X BEIGE,TRIM1#	05/2004 - 03/2005	1
71604-B1060D1	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	03/2005 - 12/2006	1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201	KGC1#,QNC10..G,X	05/2004 - 12/2006	17
71812-87201	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201	KGC1#,QNC10..G,X	05/2004 - 12/2006	17
71812-87201	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201	KGC1#,QNC10..G,X	05/2004 - 12/2006	17
71812-87201	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201	KGC1#,QNC10..G,X	05/2004 - 12/2006	17
71812-87201	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201	KGC1#,QNC10..G,X	05/2004 - 12/2006	17
71812-87201	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201	KGC1#,QNC10..G,X	05/2004 - 12/2006	17
71812-87201	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2006	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-97202E0	KGC15,QNC10..G ﾛｯｸ付,-,TRIM1#,左側	09/2004 - 12/2006	2
71931-97202E0	KGC15,QNC10..G ﾛｯｸ無,-,TRIM1#,右側	09/2004 - 12/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-97202E0	KGC15,QNC10..G ﾛｯｸ付,-,TRIM1#,左側	09/2004 - 12/2006	2
71931-97202E0	KGC15,QNC10..G ﾛｯｸ無,-,TRIM1#,右側	09/2004 - 12/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-97202E0	KGC15,QNC10..G ﾛｯｸ付,-,TRIM1#,左側	09/2004 - 12/2006	2
71931-97202E0	KGC15,QNC10..G ﾛｯｸ無,-,TRIM1#,右側	09/2004 - 12/2006	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-97202E0	KGC15,QNC10..G ﾛｯｸ付,-,TRIM1#,左側	09/2004 - 12/2006	2
71931-97202E0	KGC15,QNC10..G ﾛｯｸ無,-,TRIM1#,右側	09/2004 - 12/2006	2
71940A - HEADREST ASSY, REAR SEAT
71940-B1010E0	KGC15,QNC10..G BEIGE,TRIM1#	05/2004 - 12/2006	2
71940-B1030D0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	05/2004 - 12/2006	2
71940A - HEADREST ASSY, REAR SEAT
71940-B1010E0	KGC15,QNC10..G BEIGE,TRIM1#	05/2004 - 12/2006	2
71940-B1030D0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ORANGE,TRIM1#	05/2004 - 12/2006	2
72094 - LOCK SUB-ASSY, REAR SEAT TURN
72094-B1020	KGC1#,QNC10 左側	05/2004 - 12/2006	1
72094-B1010	KGC1#,QNC10 右側	05/2004 - 12/2006	1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72603-B1010B0	KGC1#,QNC10 LT.GRAY,TRIM1#	05/2004 - 12/2006	1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72604-B1010B0	KGC1#,QNC10 LT.GRAY,TRIM1#	05/2004 - 12/2006	1
72665B - COVER, REAR SEAT BACK LOCK
72665-B1010B0	KGC1#,QNC10 LT.GRAY,TRIM1#	05/2004 - 12/2006	2
72665B - COVER, REAR SEAT BACK LOCK
72665-B1010B0	KGC1#,QNC10 LT.GRAY,TRIM1#	05/2004 - 12/2006	2
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
78953 - PLATE, REAR SEAT UNDER
78953-B1010E0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,-,TRIM1#	05/2004 - 12/2006	1
Common parts
90041-19592
90041-68145
90044-68091
90523-06017
91551-80614
Linked diagrams
5804

KGC15-AHSCK (2004)

(0405-0612)
