KGC15-AHSCK (2004)
Toyota Passo
(0405-1002)

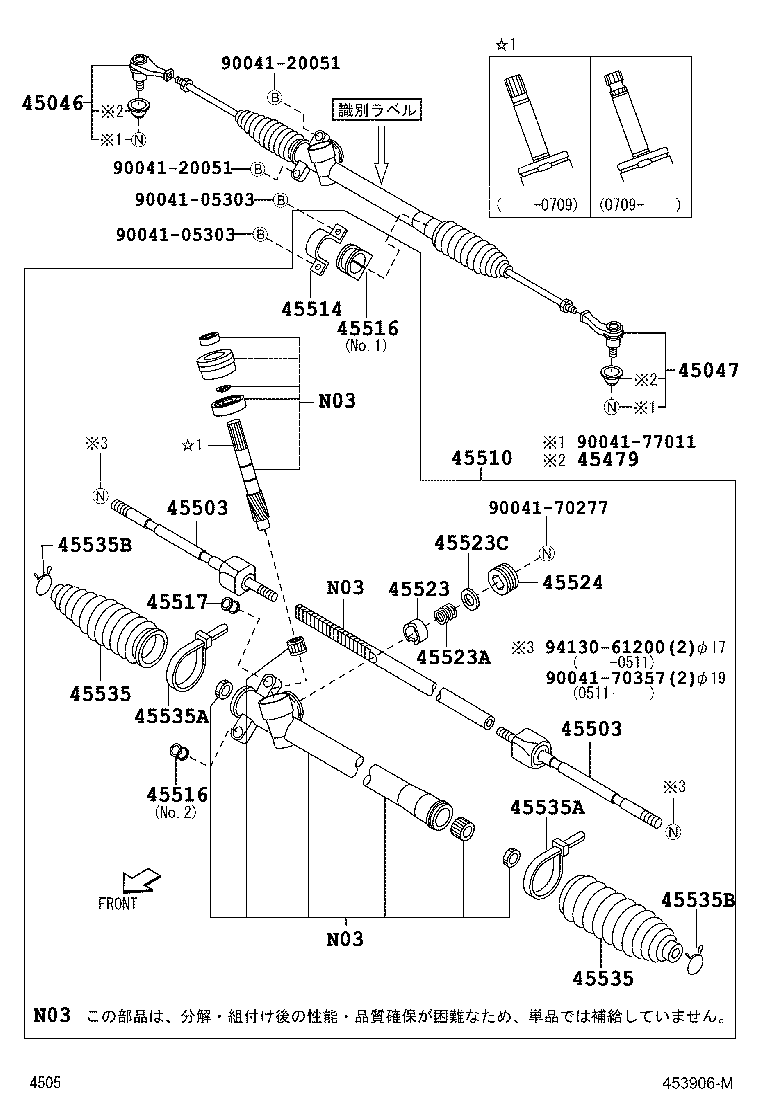

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-B9010 |
KGC1#,QNC10 ｽﾚｯﾄﾞ:M12 |
1 | ||
| 45046-B9210 |
KGC1#,QNC10 |
1 | ||
| 45046-B9060 |
KGC1#,QNC10 ｽﾚｯﾄﾞ:M14 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-B9010 |
KGC1#,QNC10 ｽﾚｯﾄﾞ:M12 |
1 | ||
| 45047-B9150 |
KGC1#,QNC10 |
1 | ||
| 45047-B9060 |
KGC1#,QNC10 ｽﾚｯﾄﾞ:M14 |
1 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-B2010 |
KGC1#,QNC10 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-B1020 |
KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ｽﾚｯﾄﾞ:M14 |
2 | ||
| 45503-B1010 |
KGC1#,QNC10 ｽﾚｯﾄﾞ:M12 |
2 | ||
| 45503-B1020 |
KGC1#,QNC10..G,X ｽﾚｯﾄﾞ:M14 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-B1020 |
KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL,ｽﾚｯﾄﾞ:M14 |
2 | ||
| 45503-B1010 |
KGC1#,QNC10 ｽﾚｯﾄﾞ:M12 |
2 | ||
| 45503-B1020 |
KGC1#,QNC10..G,X ｽﾚｯﾄﾞ:M14 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45502-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 45502-B1020 |
KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL |
1 | ||
| 45502-B1011 |
KGC1#,QNC10..G,X |
1 | ||
| 45502-B1012 |
KGC1#,QNC10..G,X |
1 | ||
| 45502-B1021 |
KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL |
1 | ||
| 45502-B1022 |
KGC1#,QNC10..G,X ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R14 5J−AL |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-B2010 |
KGC1#,QNC10 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-B2010 |
KGC1#,QNC10 NO.1 |
1 | ||
| 45516-B2020 |
KGC1#,QNC10 NO.2 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-B2010 |
KGC1#,QNC10 NO.1 |
1 | ||
| 45516-B2020 |
KGC1#,QNC10 NO.2 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45516-B2030 |
KGC1#,QNC10 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-97501 |
KGC1#,QNC10 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90045-01429 |
KGC1#,QNC10 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90042-08036 |
KGC1#,QNC10 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-87705 |
KGC1#,QNC10 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-B2010 |
KGC1#,QNC10 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-B2010 |
KGC1#,QNC10 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
KGC1#,QNC10 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45536-87205 |
KGC1#,QNC10 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-97201 |
KGC1#,QNC10 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-97201 |
KGC1#,QNC10 |
2 | ||
| Common parts | ||||
| 90041-05303 | ||||
| 90041-20051 | ||||
| 90041-70277 | ||||
| 90041-70357 | ||||
| 90041-77011 | ||||
| 94130-61200 | ||||
