KGC15-AHSBK (2006)
Toyota Passo
Production
Dec 2006
-
Feb 2010
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)KGC15

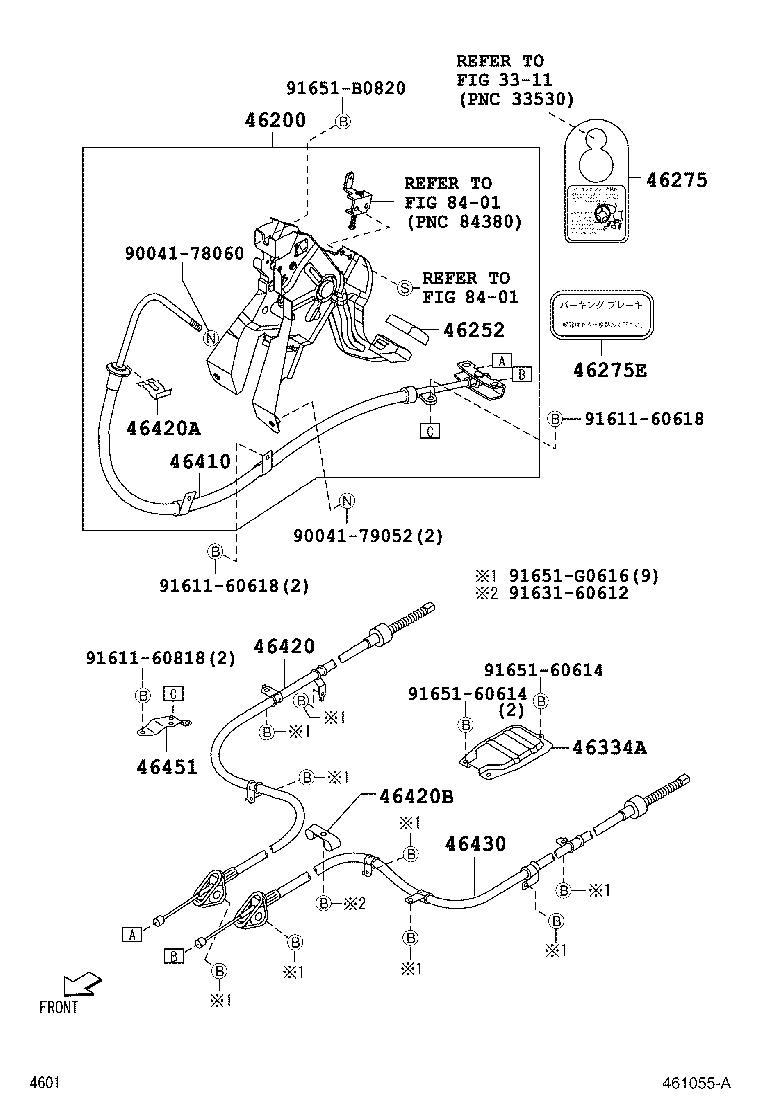

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-B1010 |
KGC1#,QNC10 |
1 | ||
| 46200-B1010 |
KGC1#,QNC10 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-B2010 |
KGC1#,QNC10 |
1 | ||
| 46252-B2020 |
KGC1#,QNC10 |
1 | ||
| 46252-B2010 |
KGC1#,QNC10 |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-97204 |
KGC1#,QNC10 |
1 | ||
| 46275-97204 |
KGC1#,QNC10 |
1 | ||
| 46275E - LABEL, PARKING BRAKE RELEASE INFORMATION | ||||
| 46275-97201 |
KGC1#,QNC10 |
1 | ||
| 46275-B1010 |
KGC1#,QNC10 |
1 | ||
| 46334A - PROTECTOR, PARKING BRAKE CABLE JOINT | ||||
| 57889-B1010 |
KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞ ﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D) |
1 | ||
| 57889-B1010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞ ﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ |
1 | ||
| 57889-B1010 |
KGC1#..X ｸﾞﾚｰﾄﾞ ﾊﾟｯｹｰｼﾞ−X“irodori” *(B) |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-B1010 |
KGC1#,QNC10 |
1 | ||
| 46410-B1010 |
KGC1#,QNC10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-B1020 |
KGC15 |
1 | ||
| 46420-B1020 |
KGC15 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90044-65531 |
KGC1#,QNC10 |
1 | ||
| 90044-65529 |
KGC1#,QNC10 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90044-61832 |
KGC1#,QNC10 |
1 | ||
| 90044-61832 |
KGC1#,QNC10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-B1020 |
KGC15 |
1 | ||
| 46430-B1020 |
KGC15 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 58253-B1020 |
KGC10..X;KGC15..G ｸﾞﾚｰﾄﾞ ﾊﾟｯｹｰｼﾞ−ﾌﾟﾁﾄﾏｺﾚｸｼｮﾝ *(D) |
1 | ||
| 58253-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞ ﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｹｰｼﾞ |
1 | ||
| 58253-B1010 |
KGC1#,QNC10 |
1 | ||
| 58253-B1010 |
KGC1#,QNC10 |
1 | ||
| 58253-B1020 |
KGC1#..X ｸﾞﾚｰﾄﾞ ﾊﾟｯｹｰｼﾞ−X“irodori” *(B) |
1 | ||
| Common parts | ||||
| 90041-78060 | ||||
| 90041-79052 | ||||
| 91611-60618 | ||||
| 91611-60818 | ||||
| 91631-60612 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 91651-G0616 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8401 | ||||
