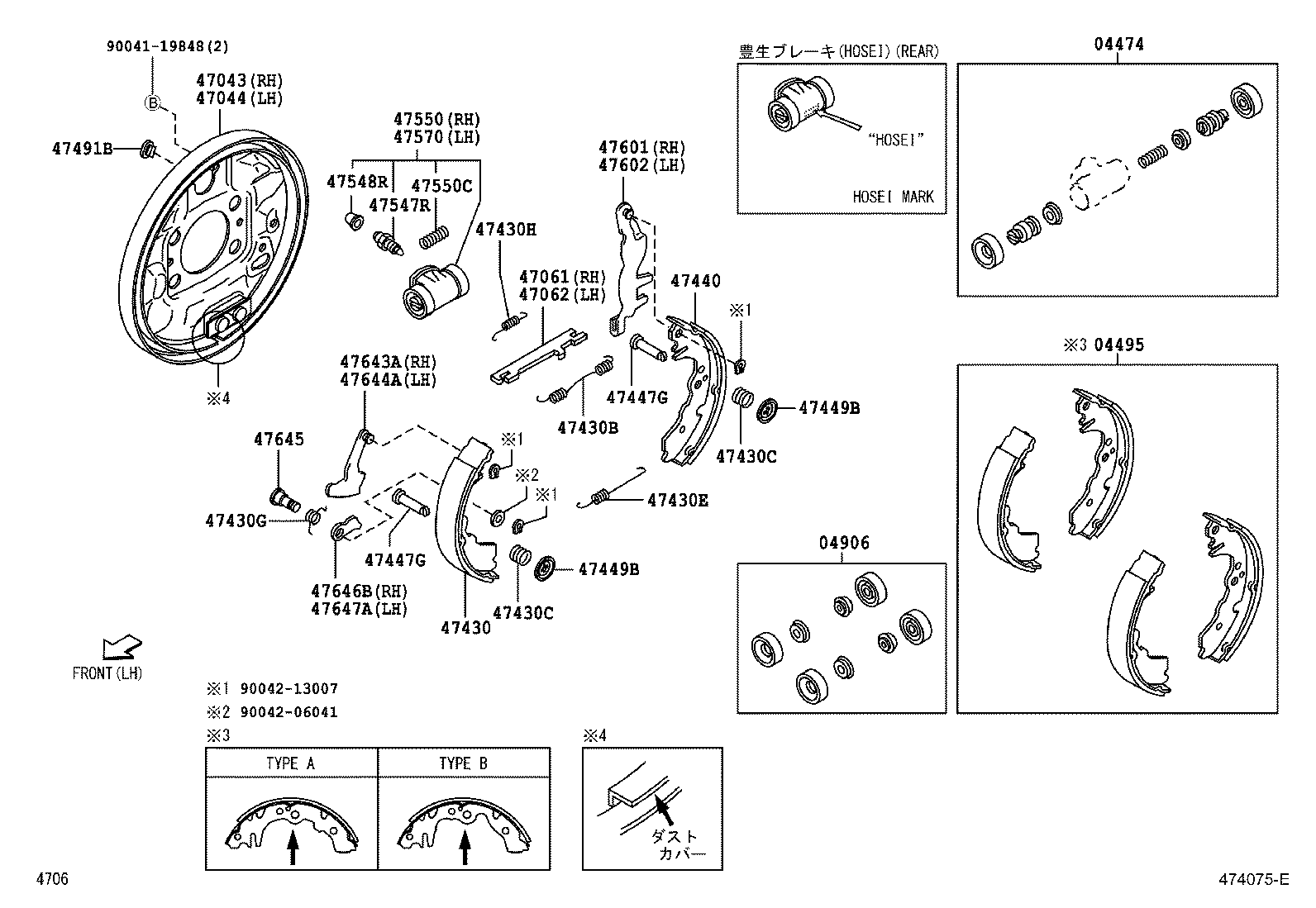

KGC10-AHSAK (2006)
Toyota Passo
(0405-1002)KGC10,QNC10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B1010 |
KGC10,QNC10 |
2 | ||
| 04474-B1010 |
KGC10,QNC10 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B1080 |
KGC10,QNC10 |
1 | ||
| 04495-B1010 |
KGC10,QNC10 ﾀｲﾌﾟ A |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-B2010 |
KGC10,QNC10 |
1 | ||
| 04906-B2010 |
KGC10,QNC10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-B2020 |
KGC10,QNC10 ﾀﾞｽﾄｶﾊﾞｰ ﾅｼ |
1 | ||
| 47043-B1030 |
KGC10,QNC10 ﾀﾞｽﾄｶﾊﾞｰ ｱﾘ |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-B2020 |
KGC10,QNC10 ﾀﾞｽﾄｶﾊﾞｰ ﾅｼ |
1 | ||
| 47044-B1030 |
KGC10,QNC10 ﾀﾞｽﾄｶﾊﾞｰ ｱﾘ |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47613-B2050 |
KGC10,QNC10 |
1 | ||
| 47613-B2050 |
KGC10,QNC10 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47613-B2050 |
KGC10,QNC10 |
1 | ||
| 47613-B2050 |
KGC10,QNC10 |
1 | ||
| 47430 - SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE) | ||||
| 47430-B2021 |
KGC10,QNC10 |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06255 |
KGC10,QNC10 |
2 | ||
| 90045-06255 |
KGC10,QNC10 |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01816 |
KGC10,QNC10 |
4 | ||
| 90045-01816 |
KGC10,QNC10 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01816 |
KGC10,QNC10 |
4 | ||
| 90045-01816 |
KGC10,QNC10 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 44699-B2010 |
KGC10,QNC10 |
2 | ||
| 44699-B2010 |
KGC10,QNC10 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90045-08384 |
KGC10,QNC10 左側 |
1 | ||
| 90045-08384 |
KGC10,QNC10 左側 |
1 | ||
| 90045-08383 |
KGC10,QNC10 右側 |
1 | ||
| 90045-08383 |
KGC10,QNC10 右側 |
1 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90045-06196 |
KGC10,QNC10 右側 |
1 | ||
| 90045-06199 |
KGC10,QNC10 左側 |
1 | ||
| 90045-06196 |
KGC10,QNC10 右側 |
1 | ||
| 90045-06199 |
KGC10,QNC10 左側 |
1 | ||
| 47440 - SHOE ASSY, REAR BRAKE(FOR REAR OR LOWER SIDE) | ||||
| 47430-B2021 |
KGC10,QNC10 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87204 |
KGC10,QNC10 |
4 | ||
| 47447-87204 |
KGC10,QNC10 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87204 |
KGC10,QNC10 |
4 | ||
| 47447-87204 |
KGC10,QNC10 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
KGC10,QNC10 |
4 | ||
| 47449-97201 |
KGC10,QNC10 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
KGC10,QNC10 |
4 | ||
| 47449-97201 |
KGC10,QNC10 |
4 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-87201 |
KGC10,QNC10 |
2 | ||
| 47491-B1010 |
KGC10,QNC10 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87203 |
KGC10,QNC10 |
2 | ||
| 47547-87203 |
KGC10,QNC10 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
KGC10,QNC10 |
2 | ||
| 47548-87501 |
KGC10,QNC10 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-B2020 |
KGC10,QNC10 |
1 | ||
| 47550-B2020 |
KGC10,QNC10 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90045-01430 |
KGC10,QNC10 |
2 | ||
| 90045-01430 |
KGC10,QNC10 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-B2020 |
KGC10,QNC10 |
1 | ||
| 47550-B2020 |
KGC10,QNC10 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-B2040 |
KGC10,QNC10 |
1 | ||
| 47601-B2040 |
KGC10,QNC10 |
1 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-B2040 |
KGC10,QNC10 |
1 | ||
| 47602-B2040 |
KGC10,QNC10 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47608-87201 |
KGC10,QNC10 |
1 | ||
| 47608-87201 |
KGC10,QNC10 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47609-87201 |
KGC10,QNC10 |
1 | ||
| 47609-87201 |
KGC10,QNC10 |
1 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-87201 |
KGC10,QNC10 |
2 | ||
| 47645-87201 |
KGC10,QNC10 |
2 | ||
| 47646B - LATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47646-97201 |
KGC10,QNC10 |
1 | ||
| 47646-97201 |
KGC10,QNC10 |
1 | ||
| 47647A - LATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47647-97201 |
KGC10,QNC10 |
1 | ||
| 47647-97201 |
KGC10,QNC10 |
1 | ||
| Common parts | ||||
| 90041-19848 | ||||
| 90042-06041 | ||||
| 90042-13007 | ||||
