KGC10-AHSAK (2006)
Toyota Passo
Production
Dec 2006
-
Feb 2010
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0612-1002)1KRFE

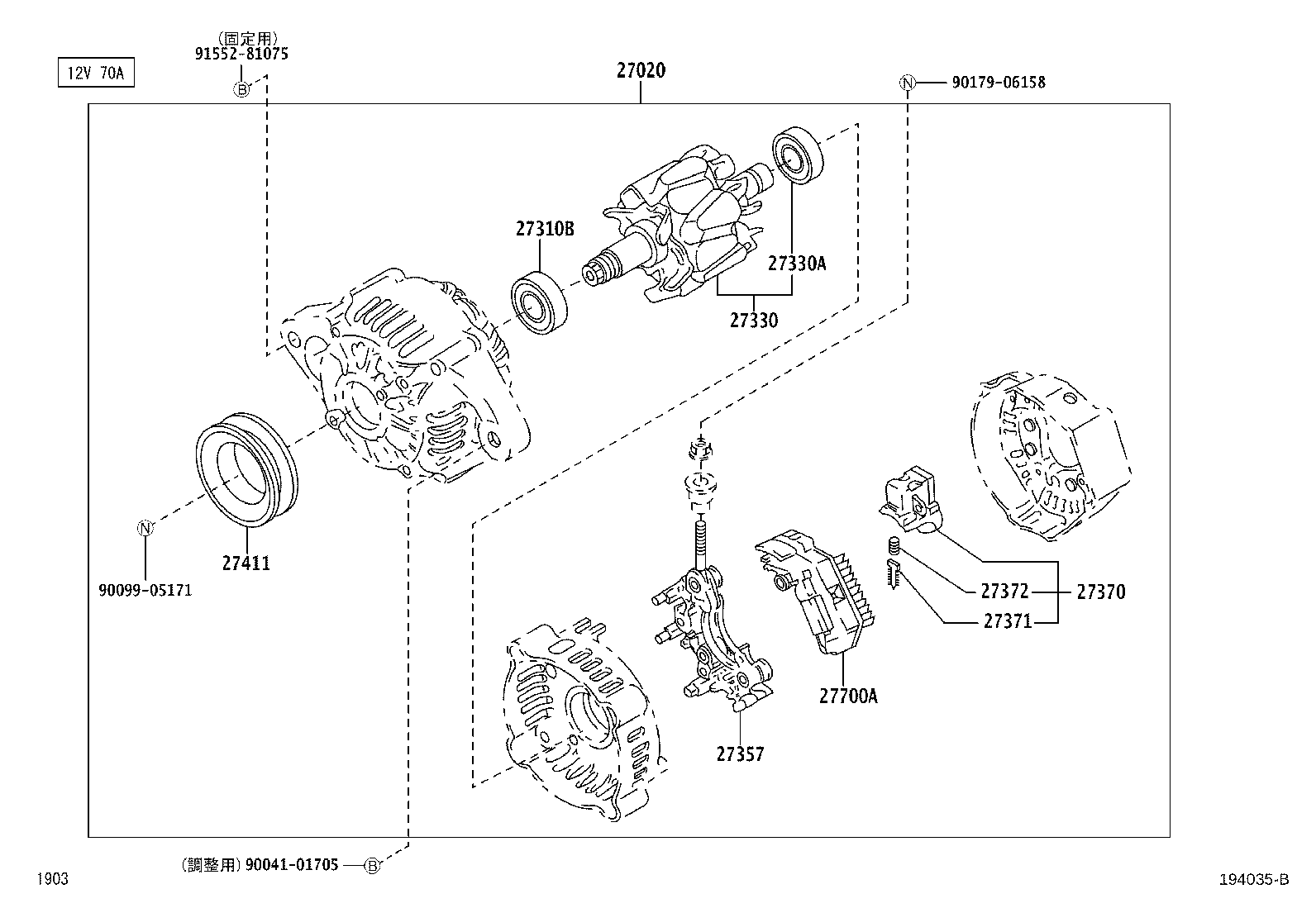

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-B1010 |
1KRFE..KGC1# 12V 65A |
1 | ||
| 27060-B1070 |
1KRFE..KGC10 12V 70A ｾﾝｻｰ付き |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10170 |
1KRFE..KGC1# |
1 | ||
| 27791-87707 |
1KRFE..KGC1# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-97201 |
1KRFE..KGC10 |
1 | ||
| 27330-97203 |
1KRFE..KGC1# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 27791-87708 |
K3VE,1KRFE..KGC1#,QNC10 |
1 | ||
| 27791-87701 |
1KRFE..KGC1# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-87305 |
1KRFE..KGC10 |
1 | ||
| 27357-97501 |
1KRFE..KGC1# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-87205 |
1KRFE..KGC1# |
1 | ||
| 27370-87708 |
K3VE,1KRFE..KGC1#,QNC10 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-87501 |
K3VE,1KRFE..KGC1#,QNC10 |
2 | ||
| 27371-87501 |
1KRFE..KGC1# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
1KRFE..KGC1# |
2 | ||
| 27372-87501 |
K3VE,1KRFE..KGC1#,QNC10 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-B1010 |
1KRFE..KGC1# |
1 | ||
| 27411-97203 |
1KRFE..KGC1# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-97205 |
1KRFE..KGC1# |
1 | ||
| 27700-B2030 |
1KRFE..KGC10 |
1 | ||
| Common parts | ||||
| 90041-01705 | ||||
| 90099-05171 | ||||
| 90179-06158 | ||||
| 91552-81075 | ||||
