KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-0512)

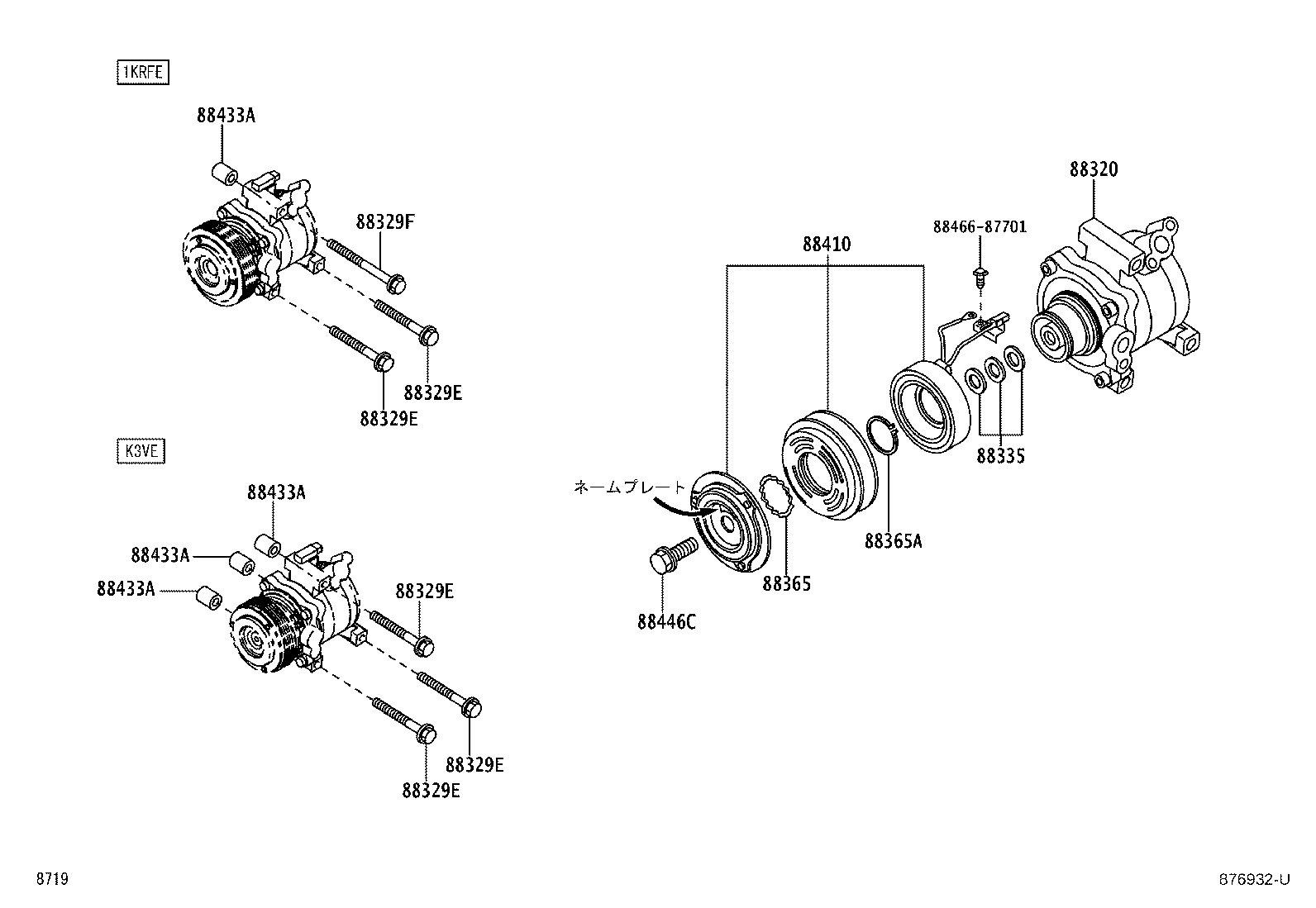

Click highlighted areas on diagram

diagram 88320 88329E 88329E 88329E 88329E 88329E 88329F 88335 88365 88365A 88410 88433A 88433A 88433A 88433A 88446C 8846687701
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-B1020

KGC1#

ﾈｰﾑﾌﾟﾚｰﾄ:88310−B1060

 1
88320-97401

KGC1#

ﾈｰﾑﾌﾟﾚｰﾄ:88310−B1010

 1
88329E - BOLT, COMPRESSOR, NO.1
88329-B1010

KGC1#

 2
88329E - BOLT, COMPRESSOR, NO.1
88329-B1010

KGC1#

 2
88329E - BOLT, COMPRESSOR, NO.1
88329-B1010

KGC1#

 2
88329E - BOLT, COMPRESSOR, NO.1
88329-B1010

KGC1#

 2
88329E - BOLT, COMPRESSOR, NO.1
88329-B1010

KGC1#

 2
88329F - BOLT, COMPRESSOR, NO.2
88329-B1020

KGC1#

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

KGC1#,QNC10

 1
88365 - RING, SNAP
90099-07125

KGC1#,QNC10

 1
88365A - RING, SNAP (FOR COMPRESSOR)
88365-87201

KGC1#,QNC10

 1
88410 - CLUTCH ASSY, MAGNET
88410-97403

KGC1#

 1
88410-B1040

KGC1#

 1
88433A - STAY, COMPRESSOR
88433-B1020

KGC1#

 1
88433A - STAY, COMPRESSOR
88433-B1020

KGC1#

 1
88433A - STAY, COMPRESSOR
88433-B1020

KGC1#

 1
88433A - STAY, COMPRESSOR
88433-B1020

KGC1#

 1
88446C - BOLT, MAGNET CLUTCH SETTING
90099-04349

KGC1#,QNC10

 1
Common parts
88466-87701
