KGC10-AHSAK (2004)
Toyota Passo
(0405-1002)

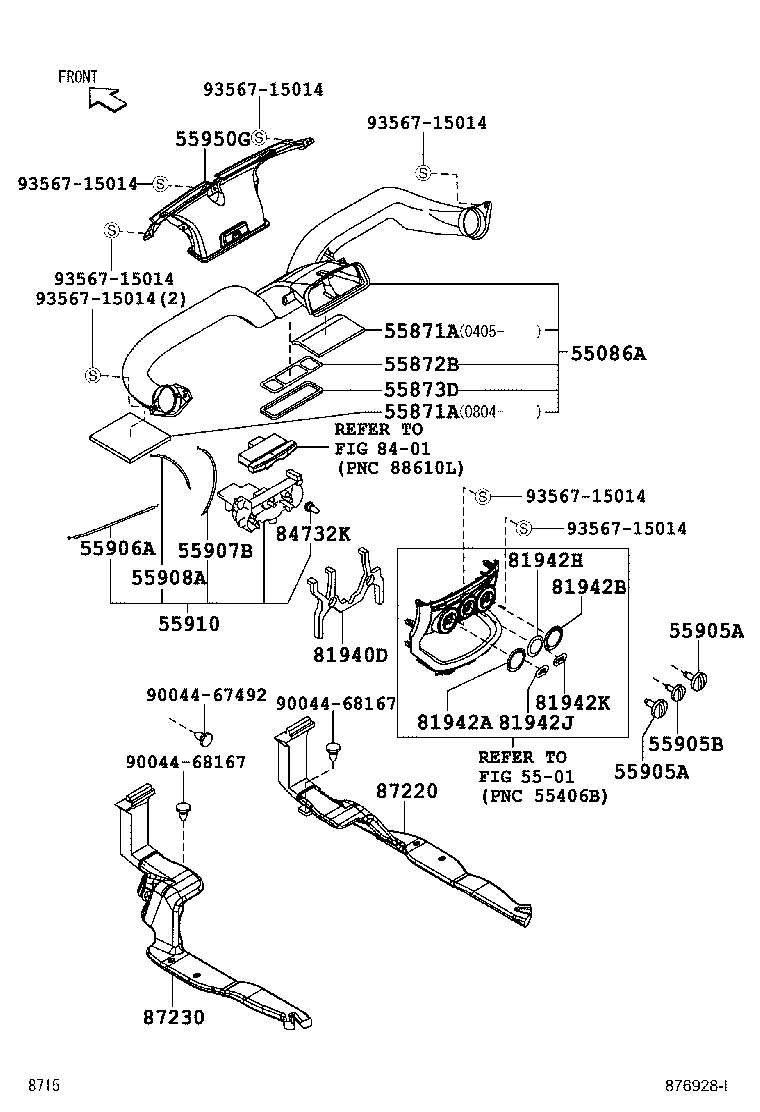

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-B1030 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 55086-B1010 |
KGC1#,QNC10 |
1 | ||
| 55086-B1030 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55871-B1010 |
KGC1#,QNC10 |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55871-B1010 |
KGC1#,QNC10 |
1 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55872-B1010 |
KGC1#,QNC10 |
2 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-B1010 |
KGC1#,QNC10 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B1060 |
KGC1#,QNC10..G,X |
2 | ||
| 55905-B1020 |
KGC1#,QNC10..G,X |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B1060 |
KGC1#,QNC10..G,X |
2 | ||
| 55905-B1020 |
KGC1#,QNC10..G,X |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-B1070 |
KGC1#,QNC10..G,X |
1 | ||
| 55905-B1030 |
KGC1#,QNC10..G,X |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-B1010 |
KGC1#,QNC10 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-B1010 |
KGC1#,QNC10 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-B1010 |
KGC1#,QNC10 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55902-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-B1010 |
KGC1#,QNC10 |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-B1010 |
KGC1#,QNC10 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-B1030 |
KGC1#,QNC10..G,X |
1 | ||
| 81942-B1160 |
KGC1#,QNC10..G,X |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-B1050 |
KGC1#,QNC10..G,X |
1 | ||
| 81942-B1100 |
KGC1#,QNC10..G,X |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-B1170 |
KGC1#,QNC10..G,X |
1 | ||
| 81942-B1040 |
KGC1#,QNC10..G,X |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-B1180 |
KGC1#,QNC10..G,X |
1 | ||
| 81942-B1060 |
KGC1#,QNC10..G,X |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-B1070 |
KGC1#,QNC10..G,X |
1 | ||
| 81942-B1190 |
KGC1#,QNC10..G,X |
1 | ||
| 84732K - BULB, HEATER BLOWER SWITCH | ||||
| 81936-B1020 |
KGC1#,QNC10..G,X 14V−214MA |
2 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-B1010 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 87230 - DUCT ASSY, AIR, HEATER | ||||
| 87230-B1010 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90044-67492 | ||||
| 90044-68167 | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||

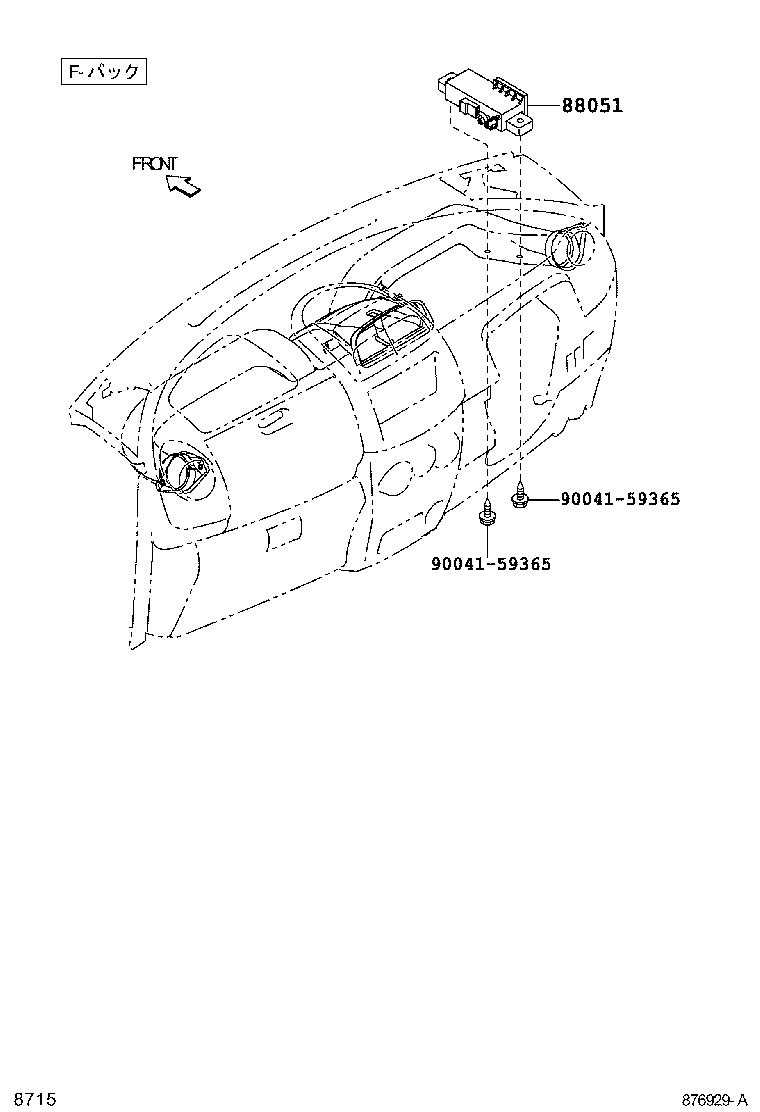

(0405-1002)G,X
F-ﾊﾟｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88051 - GENERATOR SUB-ASSY, ION | ||||
| 88051-B1010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 88051-B1010 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ |
1 | ||
| Common parts | ||||
| 90041-59365 | ||||
