8603 - NAVIGATION & FRONT MONITOR DISPLAY

KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006

Engine 1KRFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0405-1002)

Click highlighted areas on diagram

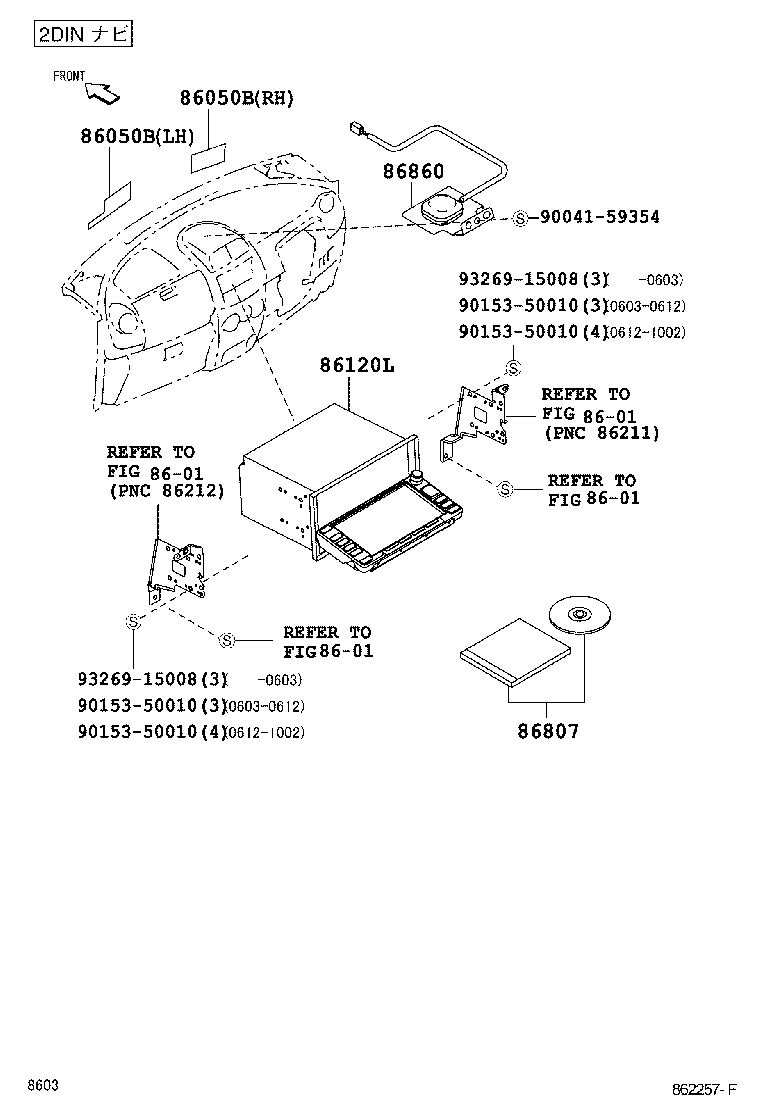

Part #	Description	Period	Qty
86050B - ANTENNA ASSY, TELEVISION
86050-B1010	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−G−BOOK,右側	05/2004 - 10/2004	1
86050-B1020	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−G−BOOK,左側	05/2004 - 10/2004	1
86050B - ANTENNA ASSY, TELEVISION
86050-B1010	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−G−BOOK,右側	05/2004 - 10/2004	1
86050-B1020	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−G−BOOK,左側	05/2004 - 10/2004	1
86120L - RECEIVER ASSY, NAVIGATION
86120-B1010	KGC1#..X DENSO,ID=E6003,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞV汎用	05/2004 - 12/2006	1
86100-52020	KGC1#..X MATSUSHITA,ID=56054,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−G−aOOK	05/2004 - 10/2004	1
86807 - DISC KIT, CD-ROM
86807-12032	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用	11/2005 - 03/2006	1
86807-B1030	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用	09/2006 - 12/2006	1
86807-12033	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用	04/2006 - 08/2006	1
86807-12031	KGC1#,QNC10 EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用	12/2004 - 11/2005	1
86807-12030	KGC1#,QNC10 EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用	05/2004 - 12/2004	1
86860 - ANTENNA ASSY, NAVIGATION
86860-B1020	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用	05/2004 - 12/2006	1
86860-B1020	KGC1#..X EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−G−BOOK	05/2004 - 10/2004	1
Common parts
90041-59354
90153-50010
93269-15008
Linked diagrams
8601

(0405-1002)

Click highlighted areas on diagram

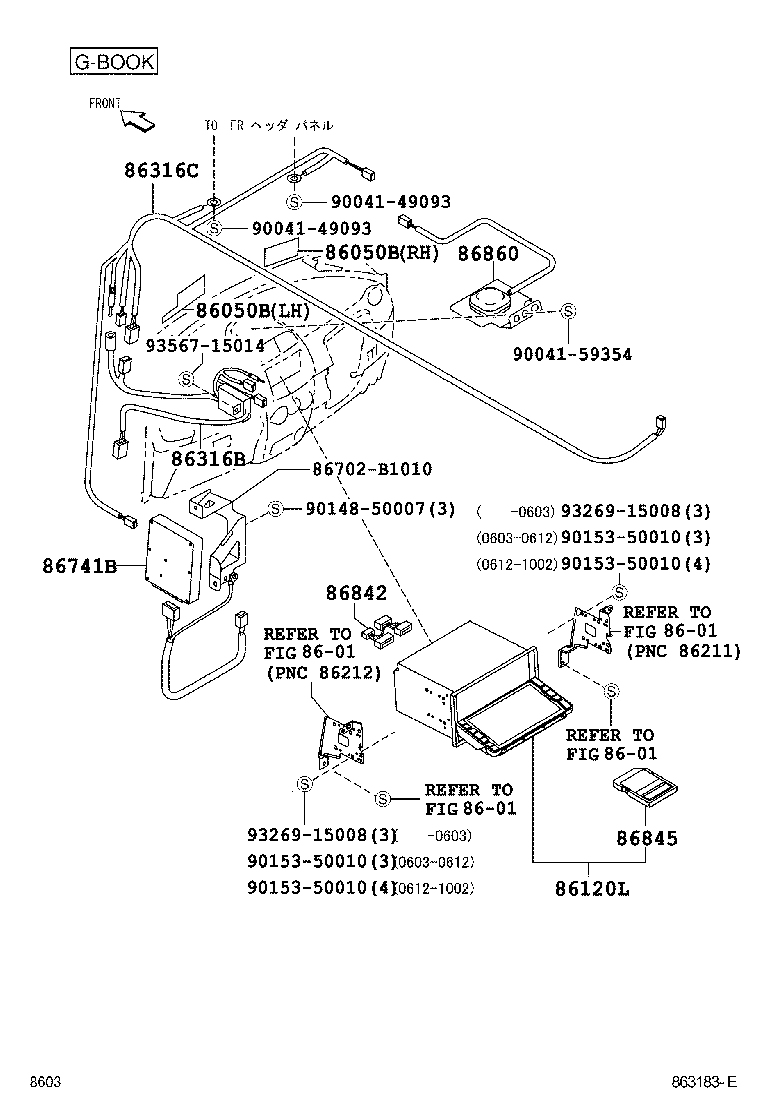

Part #	Description	Period	Qty
