KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)
Click highlighted areas on diagram
G-BOOK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 90049-52006 |
KGC1# |
1 | ||
| Common parts | ||||
| 90041-20154 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||
| 8604 | ||||
(0405-1002)QNC10 ; (0405-1002)KGC1#..G,X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 90049-52006 |
KGC1# |
1 | ||
| Common parts | ||||
| 90041-20154 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||
| 8604 | ||||

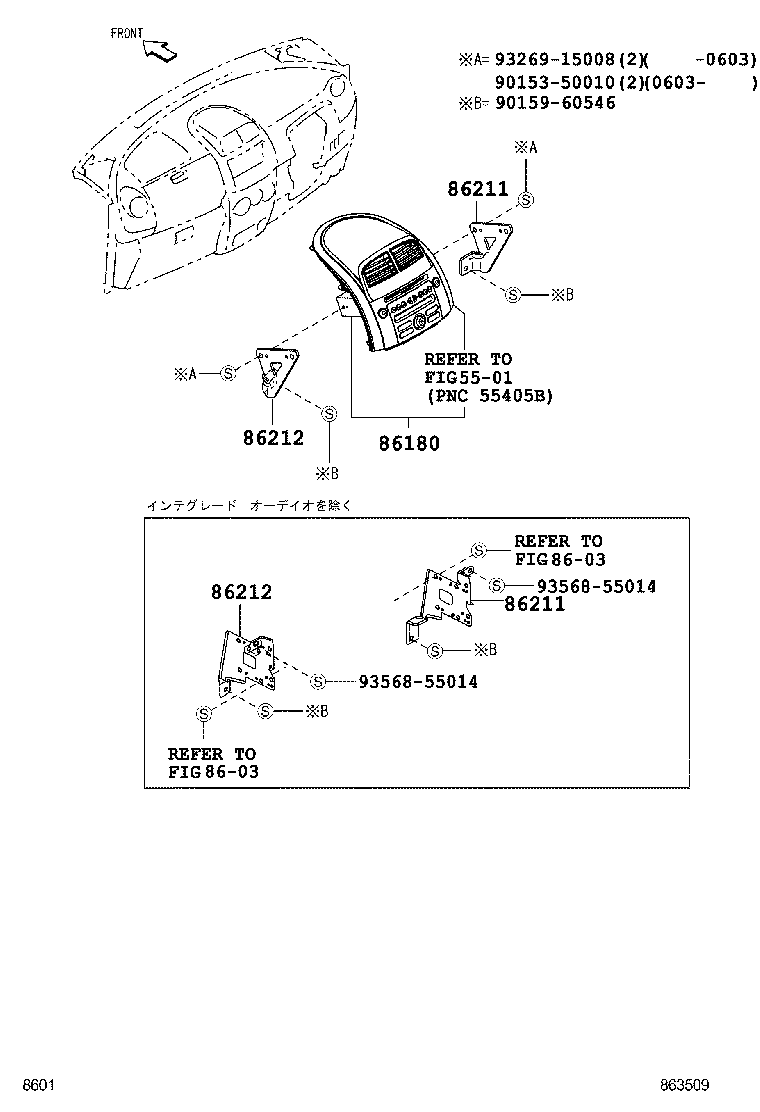

(0405-0612)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86180 - TUNER ASSY, STEREO COMPONENT | ||||
| 86180-B1010S1 |
KGC1#,QNC10..G,X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,-,TRIM1# |
1 | ||
| 86180-B1100B0 |
KGC1#,QNC10..G,X 小島ﾌﾟﾚｽ,-,TRIM1#,ｶﾞﾝﾒﾀ |
1 | ||
| 86180-B1100B0 |
KGC1#,QNC10..G,X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,-,TRIM1# |
1 | ||
| 86180-B1010S1 |
KGC1#,QNC10..G,X 小島ﾌﾟﾚｽ,-,TRIM1# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-B1010 |
KGC1#,QNC10 |
1 | ||
| 86211-B1020 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-B1010 |
KGC1#,QNC10 |
1 | ||
| 86211-B1020 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-B1020 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212-B1010 |
KGC1#,QNC10 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-B1020 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212-B1010 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-60546 | ||||
| 93269-15008 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8603 | ||||
