KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

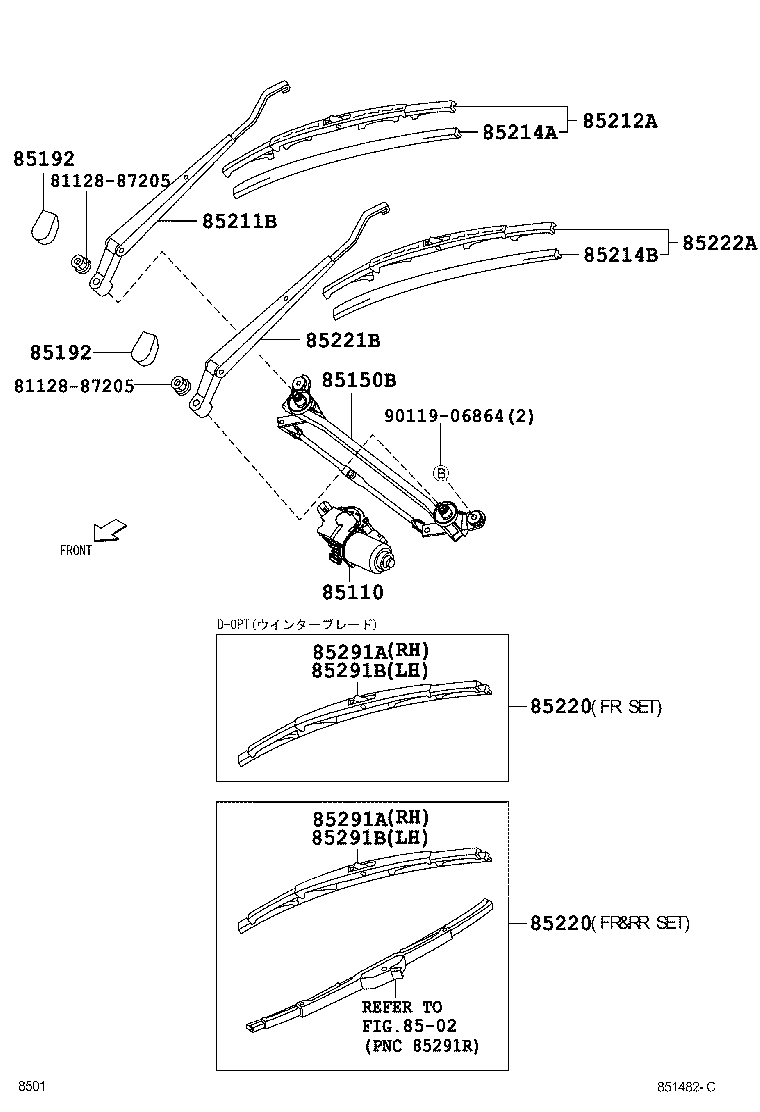

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-B1010 |
KGC1#,QNC10 |
1 | ||
| 85110-B1020 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 85150B - LINK ASSY, WIPER | ||||
| 85150-B1010 |
KGC1#,QNC10 |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-12020 |
KGC1#,QNC10 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-12020 |
KGC1#,QNC10 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-B1010 |
KGC1#,QNC10 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-B1010 |
KGC1#,QNC10 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-B2010 |
KGC1#,QNC10 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-B2020 |
KGC1#,QNC10 |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85201-B1020 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用,ﾌﾛﾝﾄ & ﾘﾔ |
1 | ||
| 85201-B1010 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用,ﾌﾛﾝﾄ |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85201-B1020 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用,ﾌﾛﾝﾄ & ﾘﾔ |
1 | ||
| 85201-B1010 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用,ﾌﾛﾝﾄ |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-B1010 |
KGC1#,QNC10 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-B1010 |
KGC1#,QNC10 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-87705 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-87705 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用 |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-87202 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用 |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-87202 |
KGC1#,QNC10 ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−寒冷地用 |
1 | ||
| Common parts | ||||
| 81128-87205 | ||||
| 90119-06864 | ||||
| Linked diagrams | ||||
| 8502 | ||||
