KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

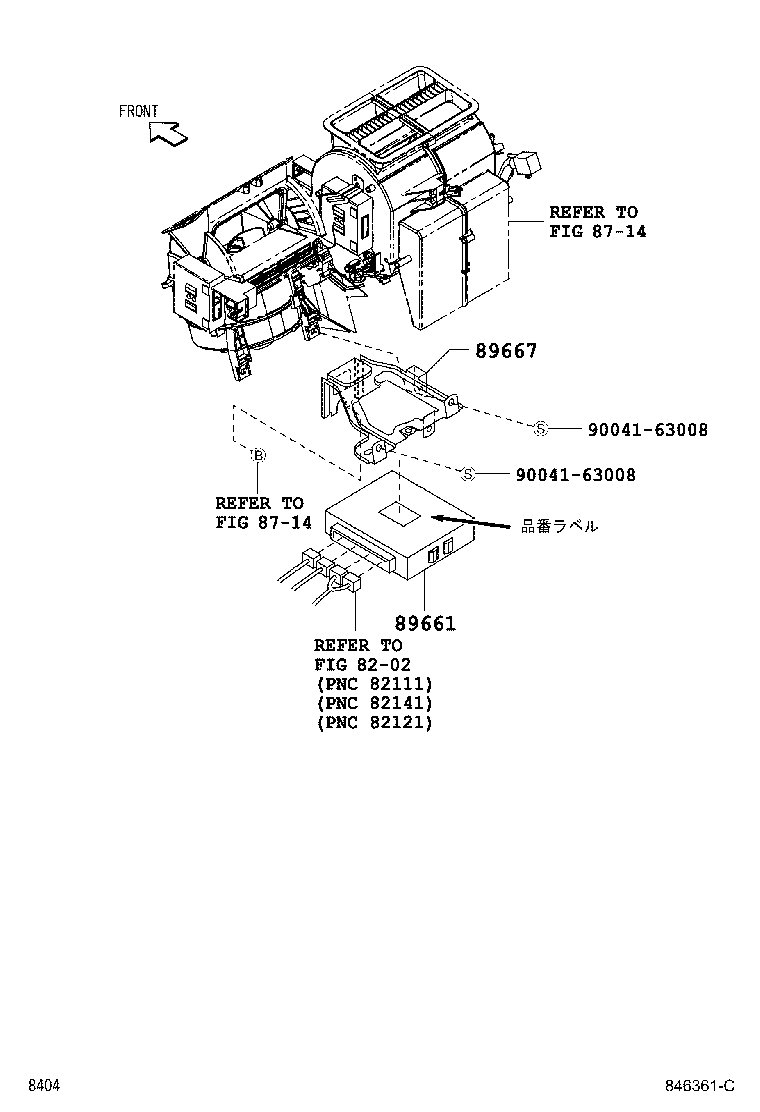

Click highlighted areas on diagram

diagram 8202 8714 8714 89661 89667 9004163008 9004163008
Part # Description Qty Price
89661 - COMPUTER, ENGINE CONTROL
89560-B1141

KGC10;KGC15..G

DENSO,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ

 1
89560-B1620

KGC1#

DENSO

 1
89560-B1011

KGC1#

DENSO

 1
89560-B1630

KGC10;KGC15..G

DENSO,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ

 1
89560-B1630

KGC10

DENSO,四国限定車 *(S)

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-B1030

KGC1#,QNC10

 1
Common parts
90041-63008
Linked diagrams
8202
8714
