KGC10-AHSAK (2004)
Toyota Passo

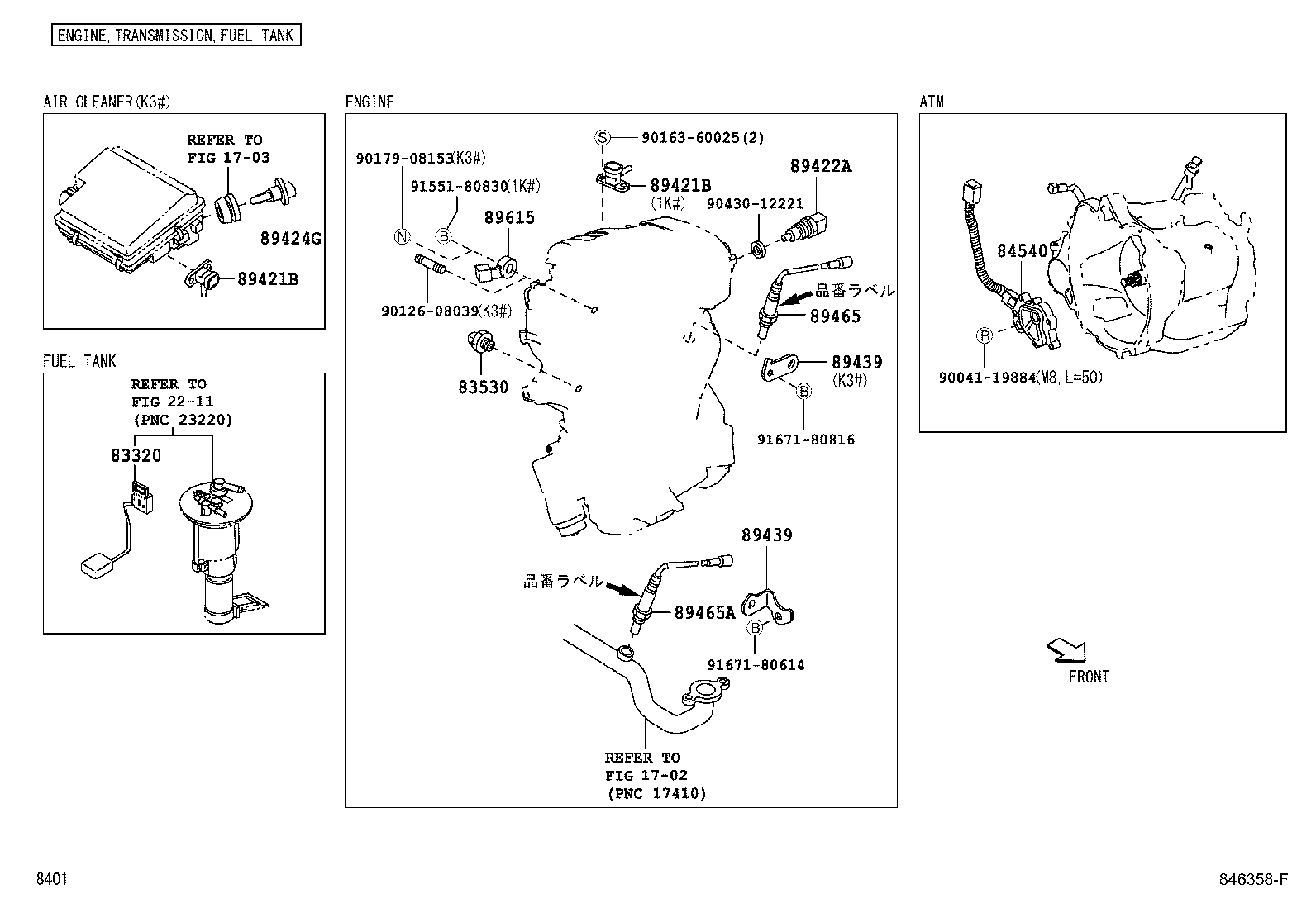

ILLUST NO. 1 OF 3(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-B1011 |
KGC1#,QNC10..G,X ﾅﾁｭﾗﾙ |
1 | ||
| 83301-B1011 |
KGC1#,QNC10 ﾅﾁｭﾗﾙ |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-97201 |
KGC1# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-97203 |
KGC1#,QNC10 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-52010 |
KGC1# ｷｭｳｷｱﾂ･ｷｭｳｷｵﾝｲｯﾀｲｶﾞﾀ |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-52010 |
KGC1# ｷｭｳｷｱﾂ･ｷｭｳｷｵﾝｲｯﾀｲｶﾞﾀ |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
KGC1#,QNC10 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-B1010 |
KGC1#,QNC10 ｴｷｿﾞｰｽﾄﾊﾟｲﾌﾟｻｲﾄﾞ ﾖｳ |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-B1010 |
KGC1#,QNC10 ｴｷｿﾞｰｽﾄﾊﾟｲﾌﾟｻｲﾄﾞ ﾖｳ |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-B1030 |
KGC1# 品番ﾗﾍﾞﾙ有り |
1 | ||
| 89465-B1030 |
KGC1# 品番ﾗﾍﾞﾙ有り |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B1010 |
KGC1#,QNC10 品番ﾗﾍﾞﾙ有り |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 90041-19884 | ||||
| 90126-08039 | ||||
| 90163-60025 | ||||
| 90179-08153 | ||||
| 90430-12221 | ||||
| 91551-80830 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 1703 | ||||
| 2211 | ||||

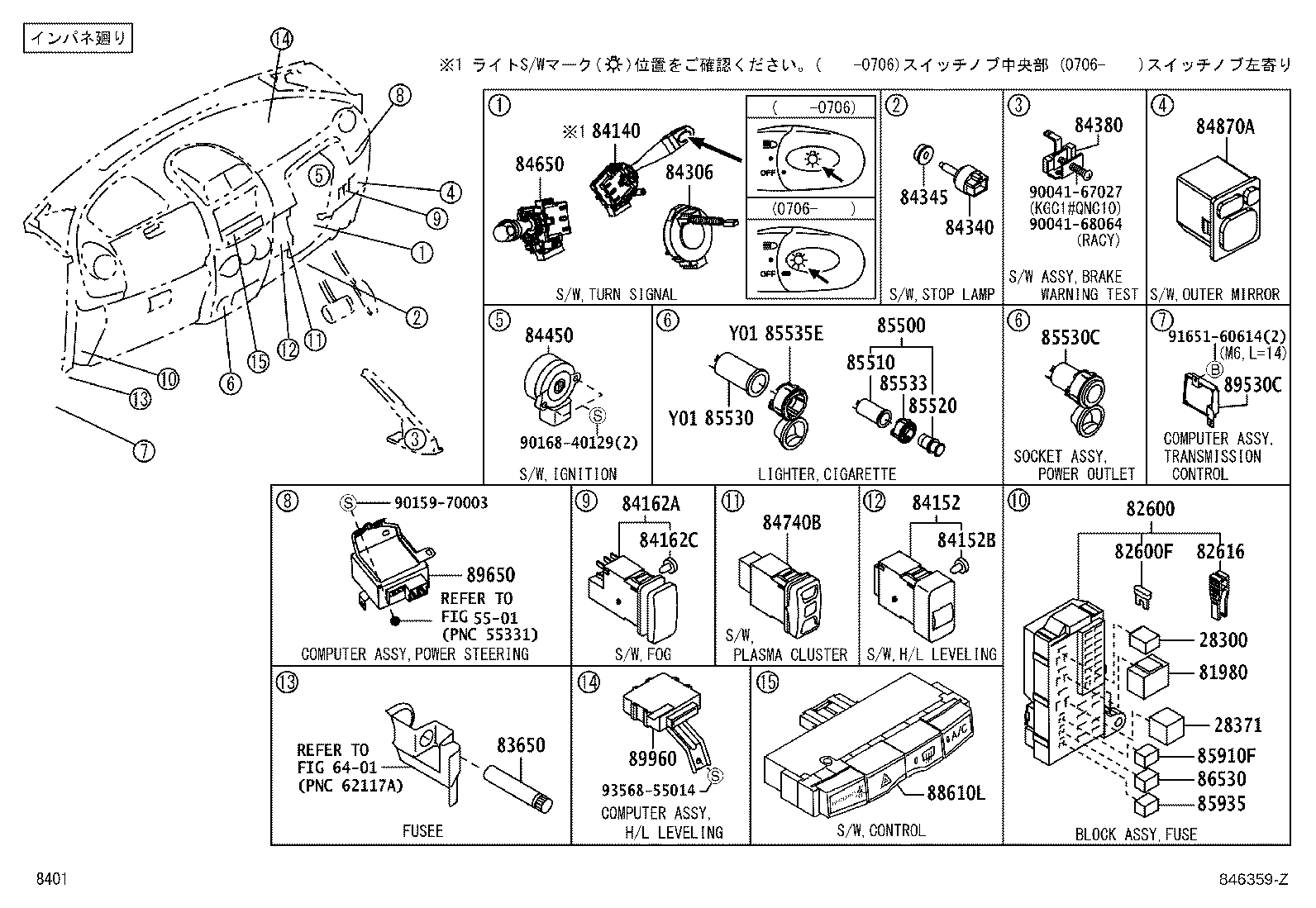

ILLUST NO. 2 OF 3(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-88004 |
K3VE,1KRFE..KGC1#,QNC10 |
1 | ||
| 90049-88002 |
K3VE,1KRFE..KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90049-88001 |
K3VE,1KRFE..KGC1#,QNC10 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-97202 |
KGC1#,QNC10 |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-B1010 |
KGC1#,QNC10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40055 |
KGC1#,QNC10 7.5A |
5 | ||
| 90049-40056 |
KGC1#,QNC10 10A |
2 | ||
| 90049-40049 |
KGC1#,QNC10 30A |
1 | ||
| 90049-40058 |
KGC1#,QNC10 20A |
2 | ||
| 90049-40057 |
KGC1#,QNC10 15A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-B2010 |
KGC1#,QNC10 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
KGC1#,QNC10 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-B2010 |
KGC1#,QNC10..G,X ﾌｫｸﾞﾗﾝﾌﾟｽｲｯﾁﾅｼ |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-B1040 |
KGC1#,QNC10..G,X |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08109 |
KGC1#,QNC10..G,X 14V 0.56W |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-B1010 |
KGC1#,QNC10..G,X ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-B2010 |
KGC1#,QNC10 ｴｱﾊﾞﾂｸﾊｰﾈｽ ﾂｷ |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-B2010 |
KGC1#,QNC10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-B2010 |
KGC1#,QNC10 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-B2010 |
KGC1#,QNC10 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-B2010 |
KGC1#,QNC10 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-B2040 |
KGC10 ﾘﾔ ｳｨﾝﾄﾞｳ ﾜｲﾊﾟｰ 無し,ﾘﾔ ﾜｲﾊﾟｰ無し |
1 | ||
| 84652-B2010 |
KGC1#,QNC10 ﾘﾔ ﾜｲﾊﾟｰ有り |
1 | ||
| 84740B - SWITCH ASSY, AIR PURIFIER | ||||
| 84740-B1010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 84740-B1010 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-97401 |
KGC1#..X ｱｳﾀｰ ﾐﾗｰ−電格 ｶﾗｰ |
1 | ||
| 84870-97402 |
KGC1#..X 格納ｽｲﾂﾁ無し |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
KGC1#,QNC10 ｼｶﾞﾚｯﾄ ﾗｲﾀｰ−有り |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
KGC1#,QNC10 ｼｶﾞﾚｯﾄ ﾗｲﾀｰ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KGC1#,QNC10 ｼｶﾞﾚｯﾄ ﾗｲﾀｰ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
KGC1#,QNC10 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-B1010 |
KGC1#,QNC10 ｼｶﾞﾚｯﾄ ﾗｲﾀｰ−有り |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52010 |
KGC1#,QNC10 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90049-87017 |
KGC1#,QNC10 |
1 | ||
| 90049-88002 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 90049-88004 |
KGC1#,QNC10 |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90049-88002 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 90049-87017 |
KGC1#,QNC10 |
1 | ||
| 90049-88004 |
KGC1#,QNC10 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90049-88004 |
KGC1#,QNC10 |
1 | ||
| 90049-88002 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 88610L - SWITCH ASSY,CONTROL | ||||
| 88610-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 88610-B1070 |
KGC1#,QNC10..G,X |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-B1190 |
KGC10 |
1 | ||
| 89530-B1010 |
KGC10 |
1 | ||
| 89530-B1011 |
KGC10 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-B1010 |
KGC1#,QNC10..G,X NSK |
1 | ||
| 89650-B1040 |
KGC10 NSK,四国限定車 *(S) |
1 | ||
| 89650-B1040 |
KGC15..G;KGC10,QNC10..G,X NSK,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-B1030 |
KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 89960-B1031 |
KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| Common parts | ||||
| 90041-67027 | ||||
| 90041-68064 | ||||
| 90159-70003 | ||||
| 90168-40129 | ||||
| 91651-60614 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 6401 | ||||

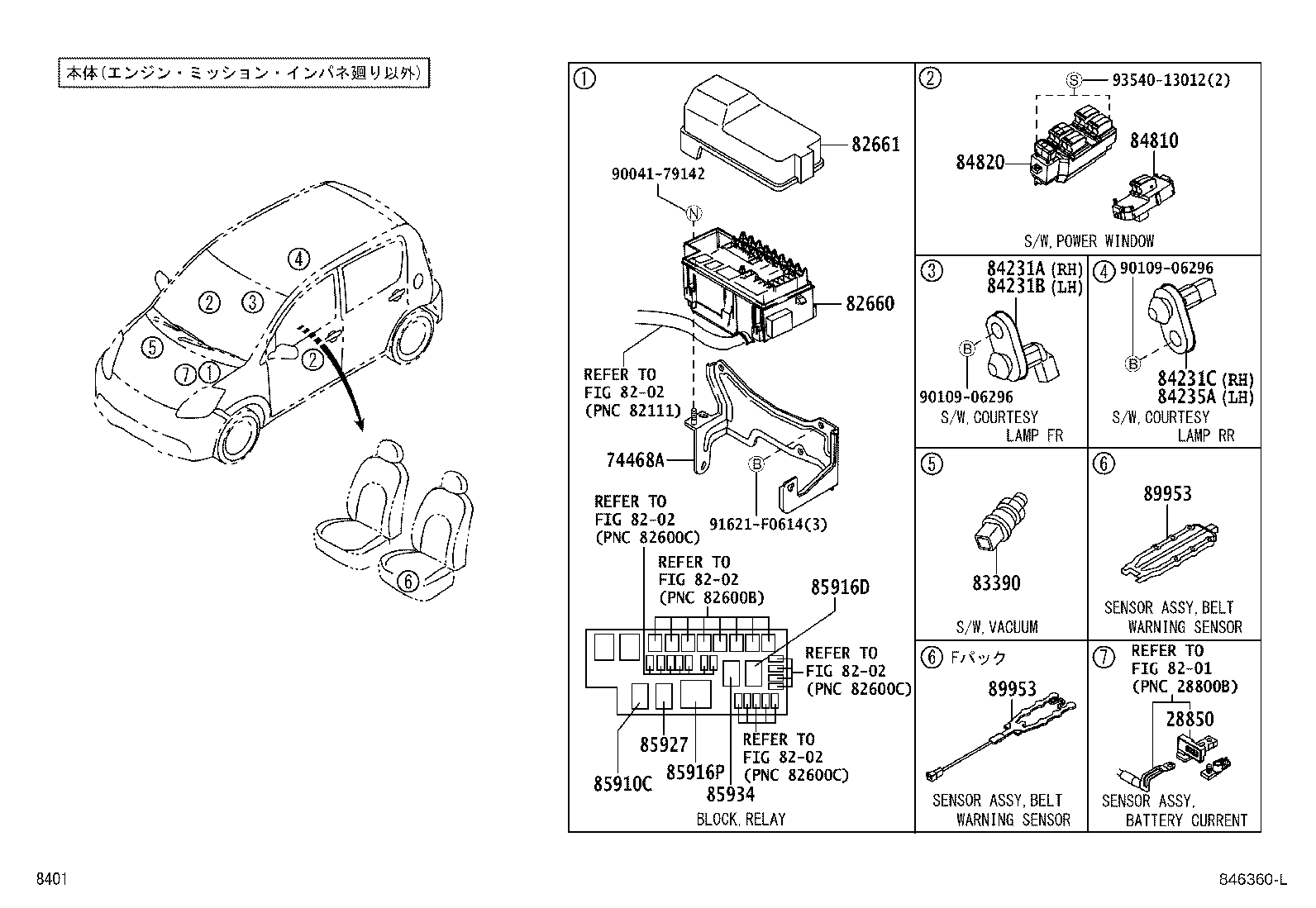

ILLUST NO. 3 OF 3(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B1010 |
KGC1#,QNC10 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-B1010 |
KGC1#,QNC10 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B1100 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82661-B1090 |
KGC1#,QNC10 |
1 | ||
| 82661-B1060 |
KGC1#,QNC10 ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),ﾏｰｸ:G−5 |
1 | ||
| 82661-B1020 |
KGC15..G;KGC10,QNC10 ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),ﾏｰｸ:G−2 |
1 | ||
| 82661-B1010 |
KGC1#,QNC10 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-B1010 |
KGC1#,QNC10 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-97201 |
KGC1#,QNC10 ﾌﾛﾝﾄ右側 |
1 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-97201 |
KGC1#,QNC10 ﾌﾛﾝﾄ左側 |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-97401 |
KGC1#,QNC10 ﾘﾔ右側 |
1 | ||
| 84235A - SWITCH, COURTESY LAMP | ||||
| 84231-97401 |
KGC1#,QNC10 ﾘﾔ左側 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-B1010 |
KGC1#,QNC10 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-B1010 |
KGC1#,QNC10 FR RH |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90049-88004 |
KGC1#,QNC10 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90049-88004 |
KGC1#,QNC10..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT) |
1 | ||
| 90049-87017 |
KGC1#,QNC10..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90049-87026 |
KGC1#,QNC10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90049-88004 |
KGC1#,QNC10 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90049-88004 |
KGC1#,QNC10 |
1 | ||
| 90049-87017 |
KGC1#,QNC10 |
1 | ||
| 89953 - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953-B1010 |
KGC1#,QNC10 |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席) |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953 - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953-B1010 |
KGC1#,QNC10 |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 89953-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席) |
1 | ||
| 89953-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席) |
1 | ||
| Common parts | ||||
| 90041-79142 | ||||
| 90109-06296 | ||||
| 91621-F0614 | ||||
| 93540-13012 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8202 | ||||
