KGC10-AHSAK (2004)
Toyota Passo
(0405-1002)

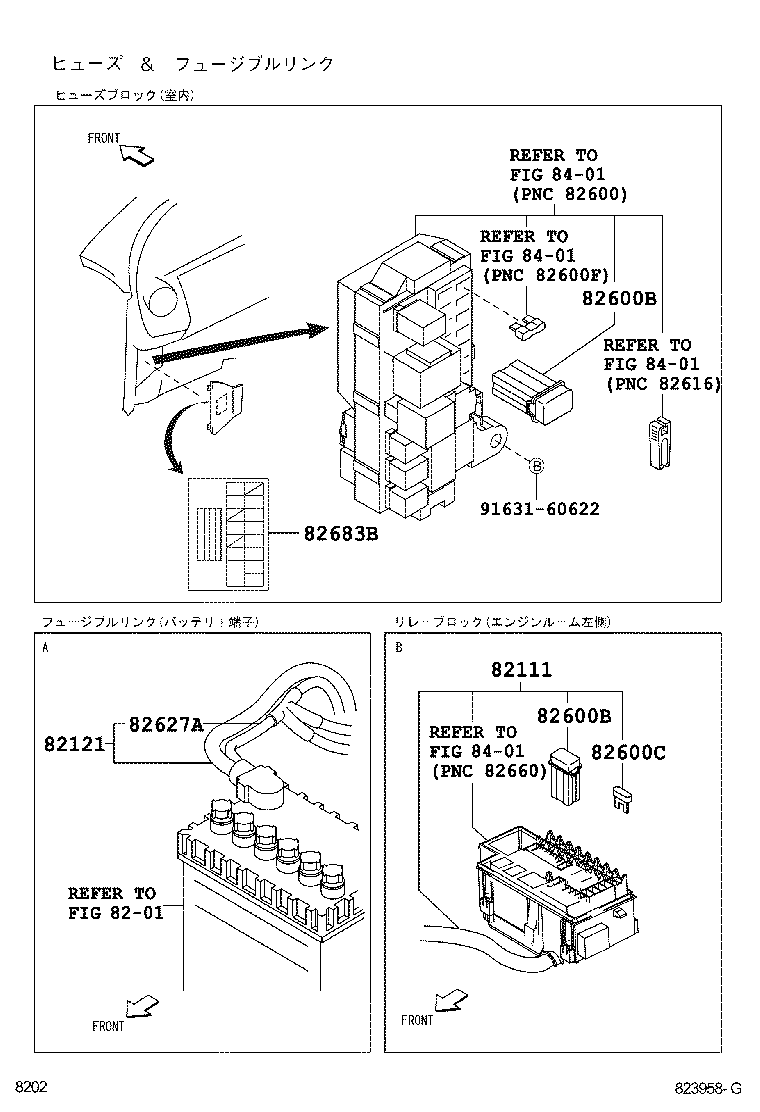

ﾋｭｰｽﾞ & ﾌｭｰｼﾞﾌﾞﾙﾘﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B1301 |
KGC1#,QNC10 |
1 | ||
| 82111-B1010 |
KGC1#,QNC10 |
1 | ||
| 82111-B1310 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82111-B1040 |
KGC1#,QNC10 ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82111-B1300 |
KGC1#,QNC10 |
1 | ||
| 82111-B1311 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-B1010 |
KGC1# 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82600B - FUSE, FUSE BLOCK | ||||
| 90049-40048 |
KGC1#,QNC10 40A |
3 | ||
| 90049-40048 |
KGC1#,QNC10 40A |
2 | ||
| 90049-40047 |
KGC1#,QNC10 50A |
2 | ||
| 90049-40049 |
KGC1#,QNC10 30A |
3 | ||
| 90049-40047 |
KGC1#,QNC10 50A |
3 | ||
| 82600B - FUSE, FUSE BLOCK | ||||
| 90049-40048 |
KGC1#,QNC10 40A |
3 | ||
| 90049-40048 |
KGC1#,QNC10 40A |
2 | ||
| 90049-40047 |
KGC1#,QNC10 50A |
2 | ||
| 90049-40049 |
KGC1#,QNC10 30A |
3 | ||
| 90049-40047 |
KGC1#,QNC10 50A |
3 | ||
| 82600C - FUSE, FUSE BLOCK, NO.2 | ||||
| 90049-40056 |
KGC1#,QNC10 10A |
8 | ||
| 90049-40055 |
KGC1#,QNC10 7.5A |
1 | ||
| 90049-40057 |
KGC1#,QNC10 15A |
3 | ||
| 90049-40058 |
KGC1#,QNC10 20A |
1 | ||
| 90049-40057 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),15A |
5 | ||
| 82627A - WIRE, FUSIBLE LINK | ||||
| 82627-B1020 |
KGC1#,QNC10 |
1 | ||
| 82683B - LABEL, FUSE BLOCK NOTICE | ||||
| 82683-B1020 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0405-1002)

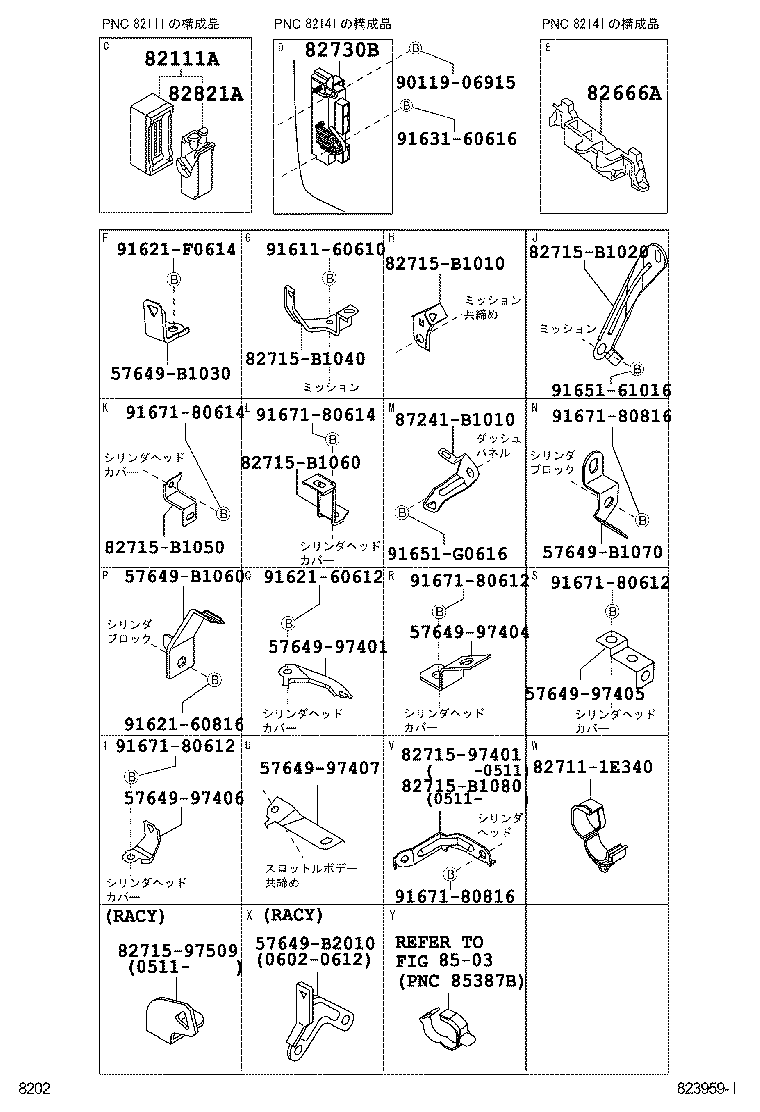

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111A - CONNECTOR, ENGINE ROOM MAIN WIRE | ||||
| 90048-75333 |
KGC1#,QNC10 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-B1010 |
KGC1#,QNC10 |
1 | ||
| 82730B - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-B1010 |
KGC1#,QNC10 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-B1010 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 57649-97401 | ||||
| 57649-97404 | ||||
| 57649-97405 | ||||
| 57649-97406 | ||||
| 57649-97407 | ||||
| 57649-B1030 | ||||
| 57649-B1060 | ||||
| 57649-B1070 | ||||
| 57649-B2010 | ||||
| 82711-1E340 | ||||
| 82715-97401 | ||||
| 82715-97509 | ||||
| 82715-B1010 | ||||
| 82715-B1020 | ||||
| 82715-B1040 | ||||
| 82715-B1050 | ||||
| 82715-B1060 | ||||
| 82715-B1080 | ||||
| 87241-B1010 | ||||
| 90119-06915 | ||||
| 91611-60610 | ||||
| 91621-60612 | ||||
| 91621-60816 | ||||
| 91621-F0614 | ||||
| 91631-60616 | ||||
| 91651-61016 | ||||
| 91651-G0616 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 8503 | ||||
(0405-1002)QNC10 ; (0405-1002)KGC1#..G,X

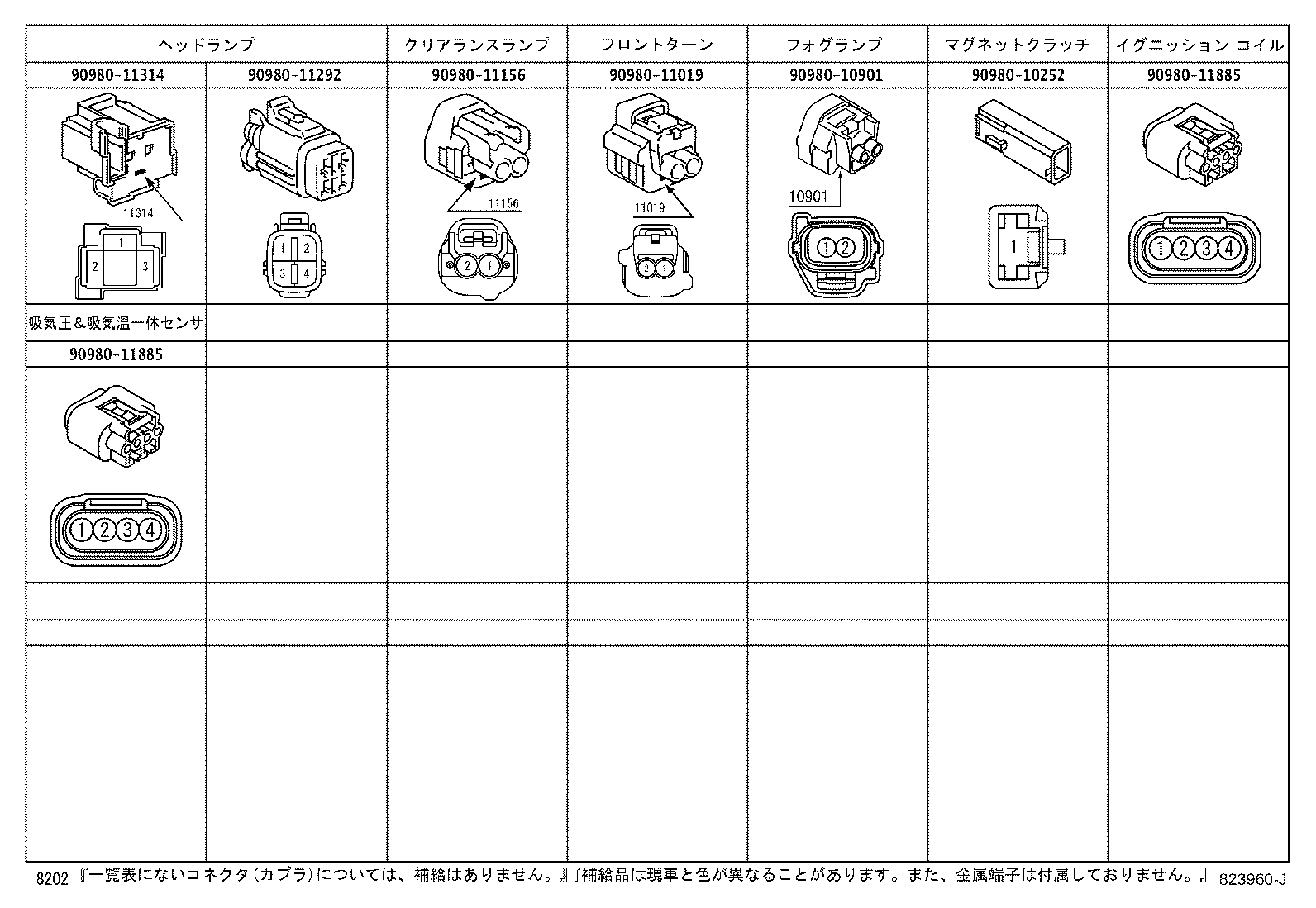

ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10252 | ||||
| 90980-10901 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
| 90980-11885 | ||||
(0405-1002)QNC10 ; (0405-1002)KGC1#..G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||

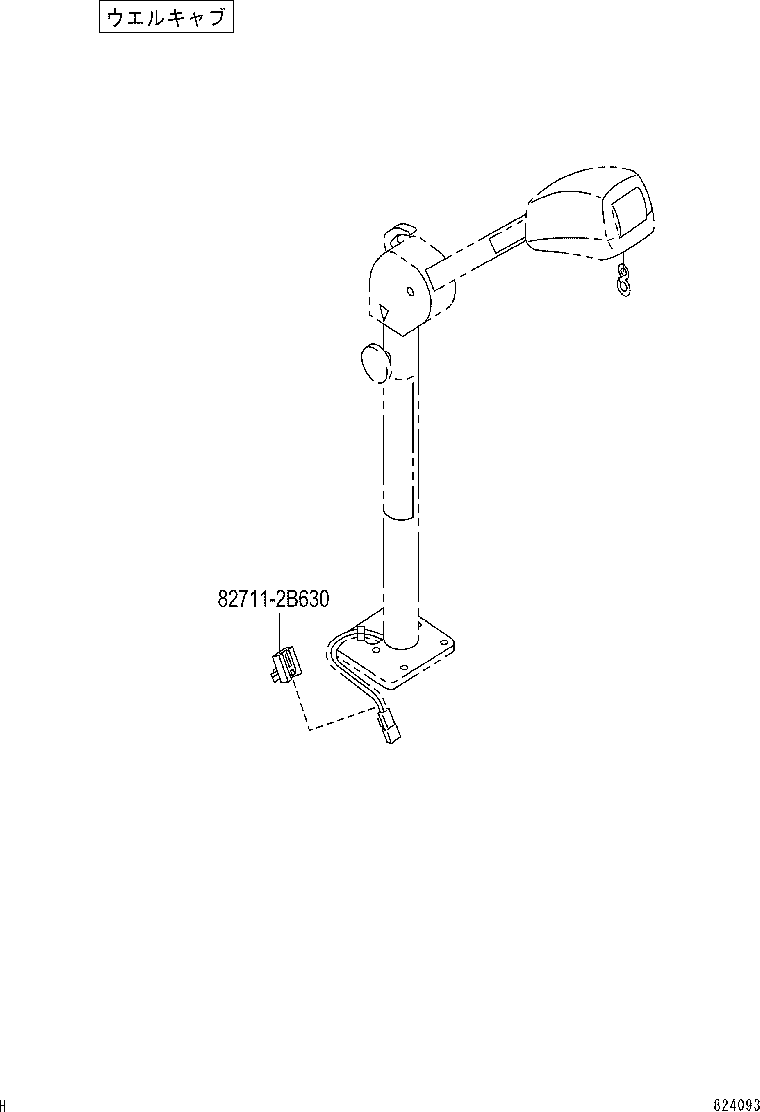

| 82711-2B630 | ||||
(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

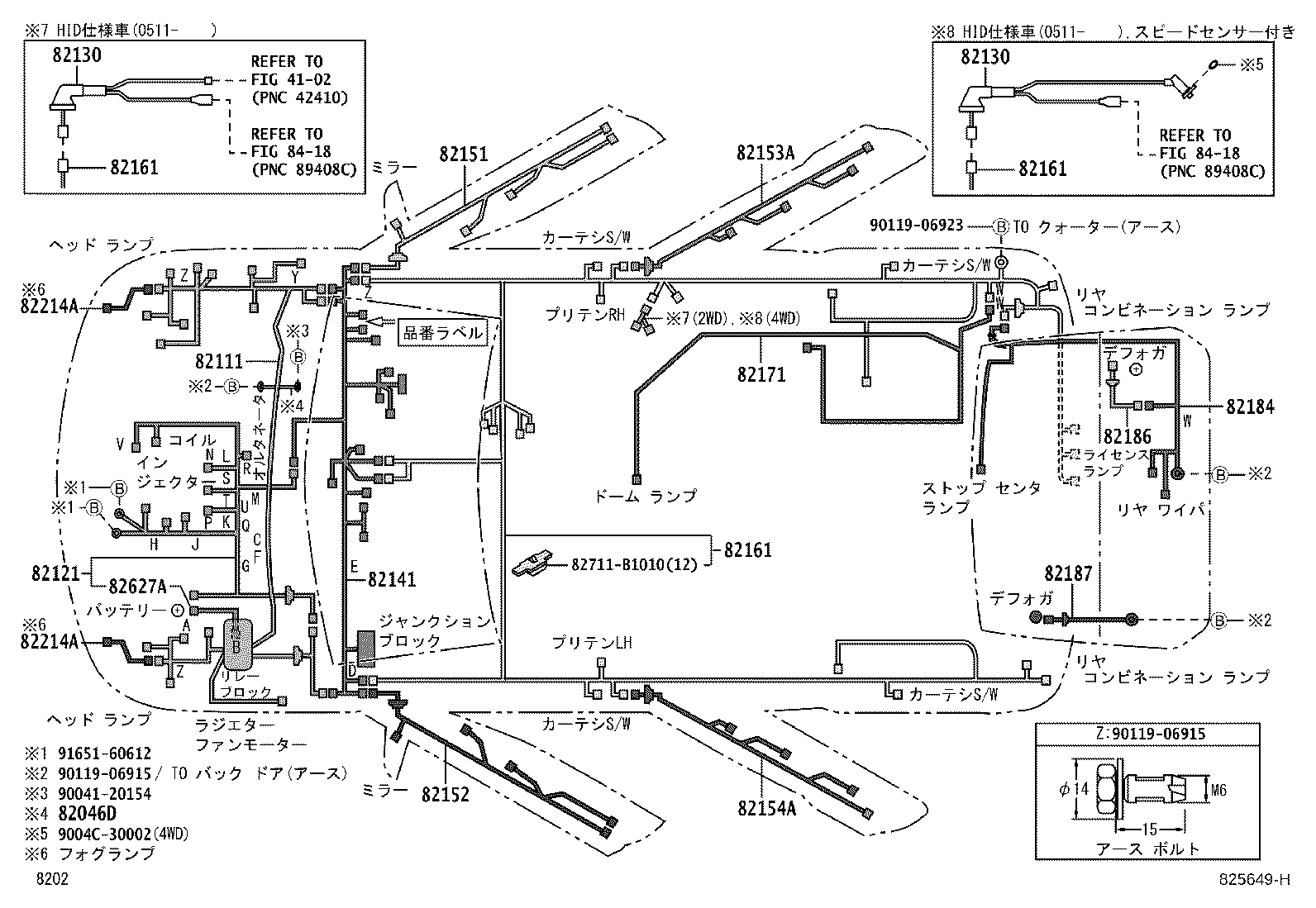

| 82046D - WIRE, BODY GROUND | ||||
| 82046-B1010 |
KGC1#,QNC10 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B1301 |
KGC1#,QNC10 |
1 | ||
| 82111-B1010 |
KGC1#,QNC10 |
1 | ||
| 82111-B1310 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82111-B1040 |
KGC1#,QNC10 ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82111-B1300 |
KGC1#,QNC10 |
1 | ||
| 82111-B1311 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-B1010 |
KGC1# 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82130 - HARNESS ASSY, CHASSIS WIRE | ||||
| 48980-B1010 |
KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82130 - HARNESS ASSY, CHASSIS WIRE | ||||
| 48980-B1010 |
KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,品番ﾗﾍﾞﾙ=82141|B1020 |
1 | ||
| 82141-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,品番ﾗﾍﾞﾙ=82141−B1020 |
1 | ||
| 82141-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&ｱｳﾀｰ ﾐﾗｰ−電格 ｶﾗｰ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,品番ﾗﾍﾞﾙ=82141−B1020 |
1 | ||
| 82141-B1010 |
KGC1#,QNC10 品番ﾗﾍﾞﾙ=82141−B1010 |
1 | ||
| 82141-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,品番ﾗﾍﾞﾙ=82141−B102O |
1 | ||
| 82141-B1020 |
KGC1#..X ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,品番ﾗﾍﾞﾙ=82141−B1020 |
1 | ||
| 82141-B1230 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&ｱｳﾀｰ ﾐﾗｰ−ﾀﾙﾎﾞ(材着)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,品番ﾗﾍﾞﾙ=82141−B1230 |
1 | ||
| 82141-B1230 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,品番ﾗﾍﾞﾙ=82141−B1230 |
1 | ||
| 82141-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,品番宴xﾙ=82141−B1020 |
1 | ||
| 82141-B1230 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1230 |
KGC1#..X ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&ｱｳﾀｰ ﾐﾗｰ−電格 ｶﾗｰ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−G−BOOK,品番宴xﾙ=82141−B1230 |
1 | ||
| 82141-B1270 |
KGC1#,QNC10..G,X ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1290 |
KGC1#,QNC10..G,X ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1280 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳWｱﾘ |
1 | ||
| 82141-B1280 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1281 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1291 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ｱｳﾀｰ ﾐﾗｰ−電格 ｶﾗｰ,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1271 |
KGC1#,QNC10..G,X ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1281 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳWｱﾘ |
1 | ||
| 82141-B1281 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),ﾗﾍﾞﾙjﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1291 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&ｱｳﾀｰ ﾐﾗｰ−電格 ｶﾗｰ,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮEｼﾞｱﾘ |
1 | ||
| 82141-B1281 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1291 |
KGC1#,QNC10..G,X ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1292 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1292 |
KGC1#,QNC10..G,X ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1292 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,ﾗﾍﾞﾙﾆﾋ塔oﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82141-B1281 |
KGC10 四国限定車 *(S),ﾗﾍﾞﾙﾆﾋﾝﾊﾞﾝﾋｮｳｼﾞｱﾘ |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-B1010 |
KGC1#,QNC10 |
1 | ||
| 82151-B1080 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ |
1 | ||
| 82151-B1080 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 82151-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82151-B1070 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&ｱｳﾀｰ ﾐﾗｰ−ﾀﾙﾎﾞ(材着) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-B1010 |
KGC1#,QNC10 |
1 | ||
| 82152-B1070 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&ｱｳﾀｰ ﾐﾗｰ−ﾀﾙﾎﾞ(材着) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-B1020 |
KGC1#,QNC10 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82153-B1020 |
KGC1#,QNC10 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-B1010 |
KGC1#,QNC10 |
1 | ||
| 82161-B1040 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1130 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1130 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 82161-B1130 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1011 |
KGC1#,QNC10 |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1041 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82161-B1131 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1131 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-B1010 |
KGC1#,QNC10 |
1 | ||
| 82161-B1040 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1130 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1130 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 82161-B1130 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1011 |
KGC1#,QNC10 |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1041 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82161-B1131 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1131 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-B1010 |
KGC1#,QNC10 |
1 | ||
| 82161-B1040 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1130 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1130 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 82161-B1130 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1011 |
KGC1#,QNC10 |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1170 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1040 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1010 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 82161-B1011 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1041 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1041 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82161-B1131 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1041 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 82161-B1131 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 82161-B1131 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82161-B1131 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-B1050 |
KGC1#,QNC10 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&ﾘﾔ ｳｨﾝﾄﾞｳ ﾜｲﾊﾟｰ 無し&ﾊｲﾏｳﾝﾄ ｽﾄｯﾌﾟ ﾗﾝﾌﾟ ﾅｼ |
1 | ||
| 82184-B1030 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&ﾊｲﾏｳﾝﾄ ｽﾄｯﾌﾟ ﾗﾝﾌﾟ ﾅｼ |
1 | ||
| 82184-B1010 |
KGC1#,QNC10 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-B1010 |
KGC1#,QNC10 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-B1010 |
KGC1#,QNC10 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-B1020 |
KGC1#,QNC10..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT),左側 |
1 | ||
| 82214-B1010 |
KGC1#,QNC10..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT),右側 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-B1020 |
KGC1#,QNC10..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT),左側 |
1 | ||
| 82214-B1010 |
KGC1#,QNC10..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT),右側 |
1 | ||
| 82627A - WIRE, FUSIBLE LINK | ||||
| 82627-B1020 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 82711-B1010 | ||||
| 90041-20154 | ||||
| 9004C-30002 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8418 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
