Toyota Passo KGC10 REAR COMBINATION LAMP

KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006

Engine 1KRFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

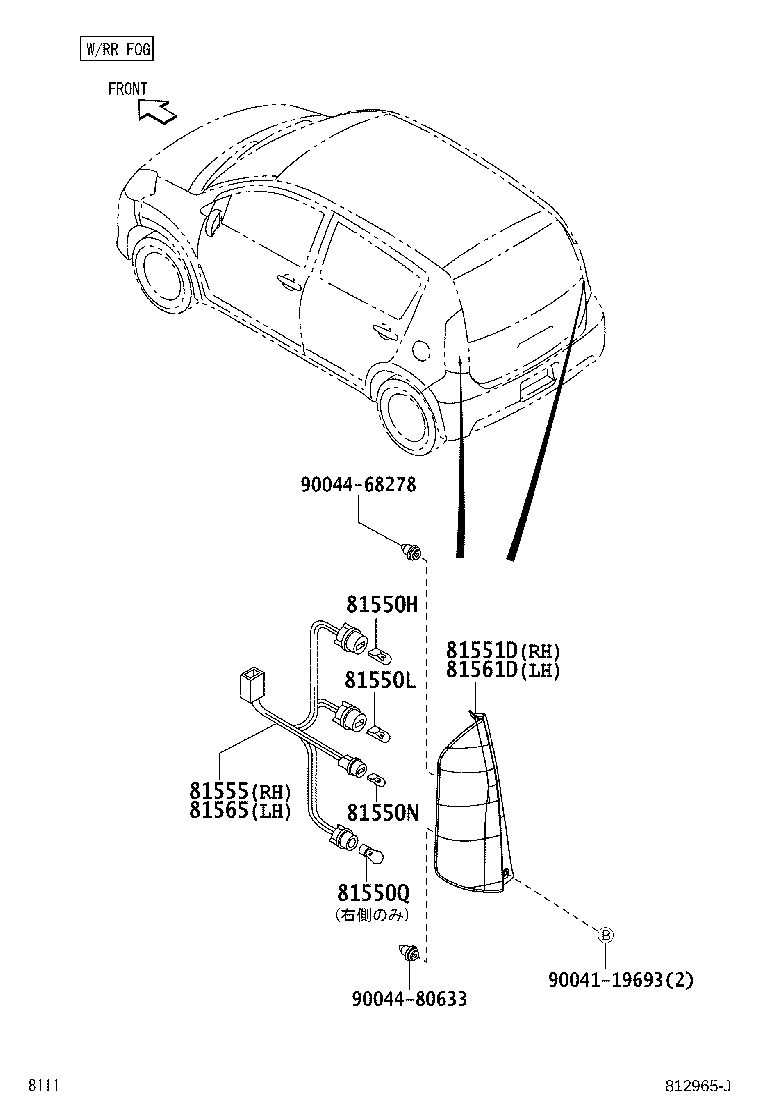

Click highlighted areas on diagram

W/RR FOG

Part #	Description	Period	Qty
81550H - BULB, TAIL & STOP LAMP
90049-51130	KGC1#,QNC10..G,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,T20 12V 21/5W	05/2004 - 12/2006	2
90049-51130	KGC1#,QNC10..G,X T20 12V 21/5W	05/2004 - 12/2006	2
81550L - BULB, REAR TURN SIGNAL LAMP
90049-51143	KGC1#,QNC10..G,X ﾗｲﾄﾖｳ	05/2004 - 12/2006	1
90049-51143	KGC1#,QNC10..G,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,ﾚﾌﾄﾖｳ	05/2004 - 12/2006	1
81550N - BULB, BACK UP LAMP
90981-11059	KGC1#,QNC10 12V 16W	05/2004 - 12/2006	2
81550Q - BULB, REAR FOG LAMP, NO.1
90049-51131	KGC1#,QNC10	05/2004 - 12/2006	1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-97411	KGC1#,QNC10..G,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り	05/2004 - 12/2006	1
81551-97410	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81935-97402	KGC1#,QNC10 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り	05/2004 - 12/2006	1
81935-97401	KGC1#,QNC10	05/2004 - 12/2006	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-97410	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81935-97401	KGC1#,QNC10	05/2004 - 12/2006	1
Common parts
90041-19693
90044-68278
90044-80633

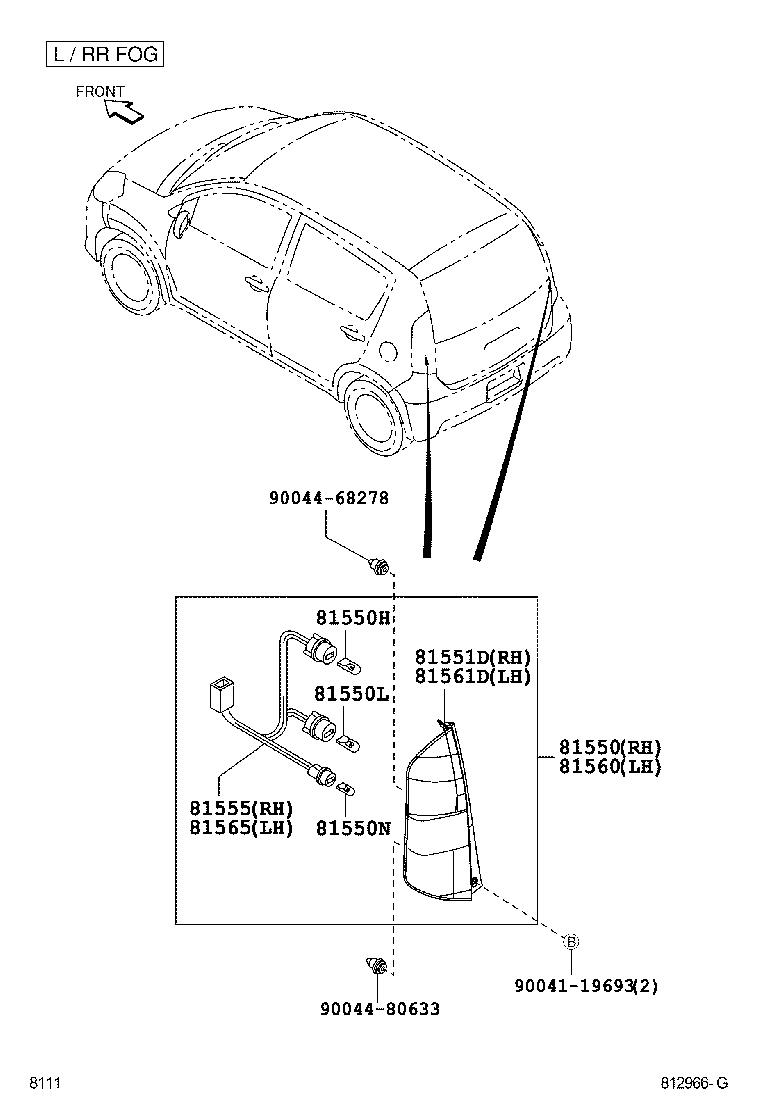

Click highlighted areas on diagram

L/RR FOG

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
81550H - BULB, TAIL & STOP LAMP
90049-51130	KGC1#,QNC10..G,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,T20 12V 21/5W	05/2004 - 12/2006	2
90049-51130	KGC1#,QNC10..G,X T20 12V 21/5W	05/2004 - 12/2006	2
81550L - BULB, REAR TURN SIGNAL LAMP
90049-51143	KGC1#,QNC10..G,X ﾗｲﾄﾖｳ	05/2004 - 12/2006	1
90049-51143	KGC1#,QNC10..G,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,ﾚﾌﾄﾖｳ	05/2004 - 12/2006	1
81550N - BULB, BACK UP LAMP
90981-11059	KGC1#,QNC10 12V 16W	05/2004 - 12/2006	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-97411	KGC1#,QNC10..G,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り	05/2004 - 12/2006	1
81551-97410	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81935-97402	KGC1#,QNC10 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り	05/2004 - 12/2006	1
81935-97401	KGC1#,QNC10	05/2004 - 12/2006	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-97410	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81935-97401	KGC1#,QNC10	05/2004 - 12/2006	1
Common parts
90041-19693
90044-68278
90044-80633
