KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-0612)G,X

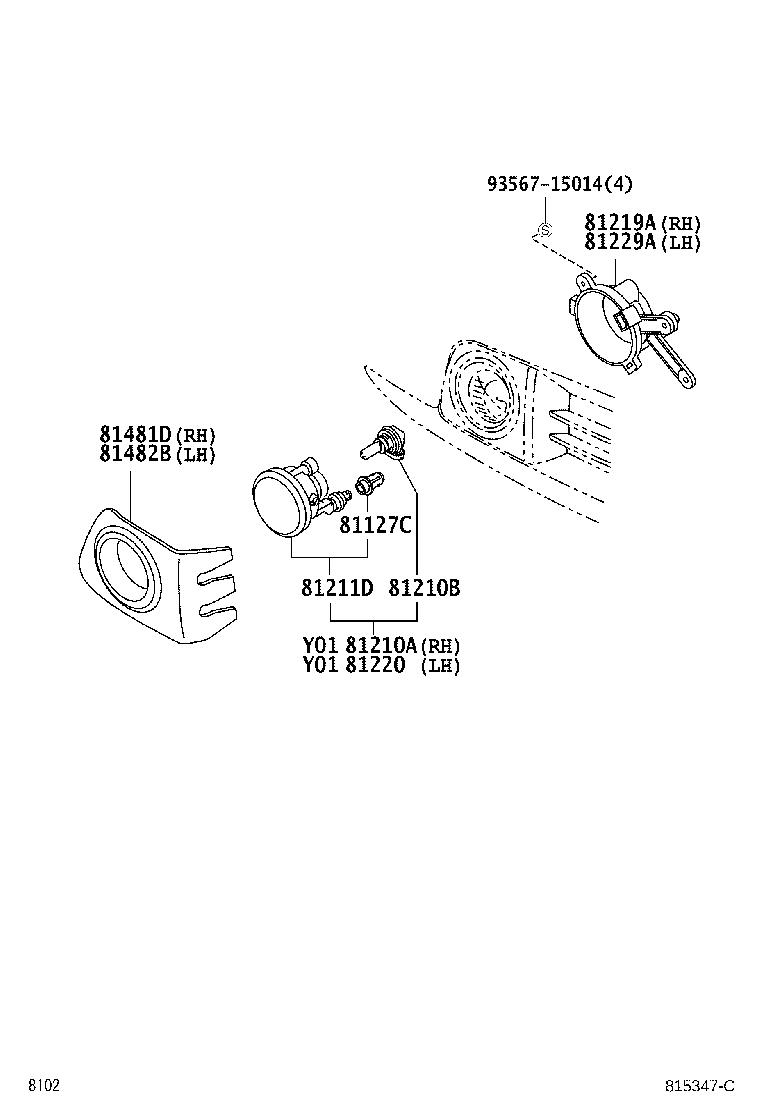

Click highlighted areas on diagram

D-OPT

diagram 81127C 81210A 81210B 81211D 81219A 81220 81229A 81481D 81482B 9356715014
Part # Description Qty Price
81127C - BEARING FOG LAMP
81127-87401

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 2
81210A - LAMP ASSY, FOG, RH
81210-97229

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 1
81210-97229

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT),KOITO 114−T1753

 1
81210B - BULB, FOG LAMP
90049-51154

KGC1#,QNC10..G,X

12V 35W H8,ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 2
81211D - LAMP UNIT, FOG LAMP
81211-97215

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 2
81219A - BRACKET, FOG LAMP, RH
81219-B1010

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 1
81220 - LAMP ASSY, FOG, LH
81210-97229

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT),KOITO 114−T1753

 1
81210-97229

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 1
81229A - BRACKET, FOG LAMP, LH
81229-B1010

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 1
81481D - COVER, FOG LAMP, RH
81481-B1010

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 1
81482B - COVER, FOG LAMP, LH
81482-B1010

KGC1#,QNC10..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−35W(D−OPT)

 1
Common parts
93567-15014
