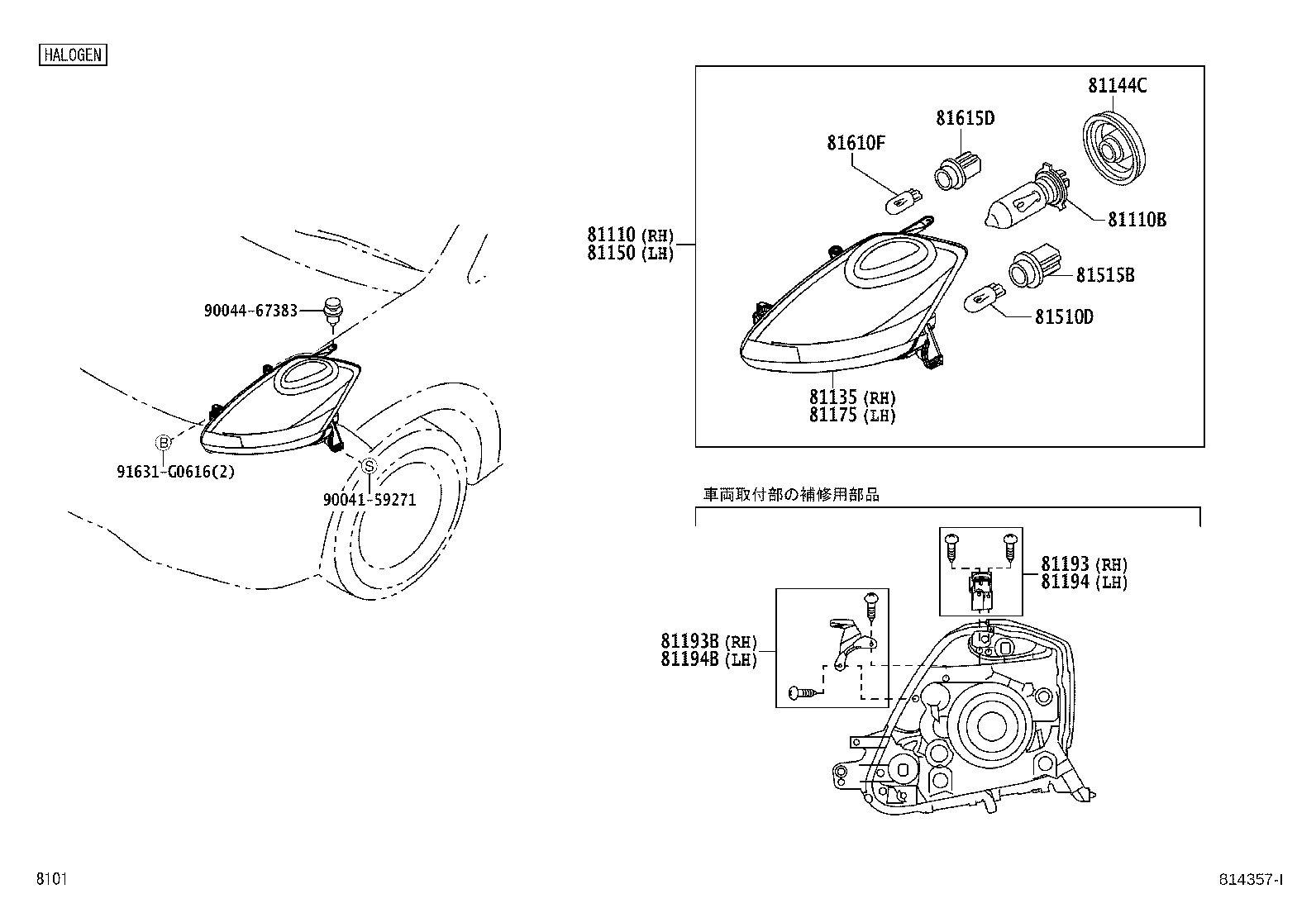

KGC10-AHSAK (2004)
Toyota Passo
(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-B1230 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81110-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 81110-B1060 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81110-B1240 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90049-51088 |
KGC1#,QNC10..G,X 12V 60/55W,H4 ﾊﾛｹﾞﾝ |
2 | ||
| 90981-22001 |
KGC1#,QNC10 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-B1040 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81130-97423 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81130-B1030 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81130-97418 |
KGC1#,QNC10..G,X |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
KGC1#,QNC10..G,X |
2 | ||
| 90075-65002 |
KGC1#,QNC10 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-B1060 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81150-B1230 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81150-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 81150-B1240 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-97418 |
KGC1#,QNC10..G,X |
1 | ||
| 81170-B1040 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81170-97423 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81170-B1030 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-B1020 |
KGC1#,QNC10 |
1 | ||
| 81193-B1030 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-B1010 |
KGC1#,QNC10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-B1020 |
KGC1#,QNC10 |
1 | ||
| 81194-B1030 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-B1010 |
KGC1#,QNC10 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90049-51148 |
KGC1#,QNC10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
2 | ||
| 90075-60006 |
KGC1#,QNC10..G,X |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11013 |
KGC1#,QNC10 12V 5W T10 |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9004C-82001 |
KGC1#,QNC10 |
2 | ||
| 90075-60046 |
KGC1#,QNC10..G,X |
2 | ||
| 9004C-82001 |
KGC1#,QNC10 |
2 | ||
| Common parts | ||||
| 90041-59271 | ||||
| 90044-67383 | ||||
| 91631-G0616 | ||||
(0405-1002)

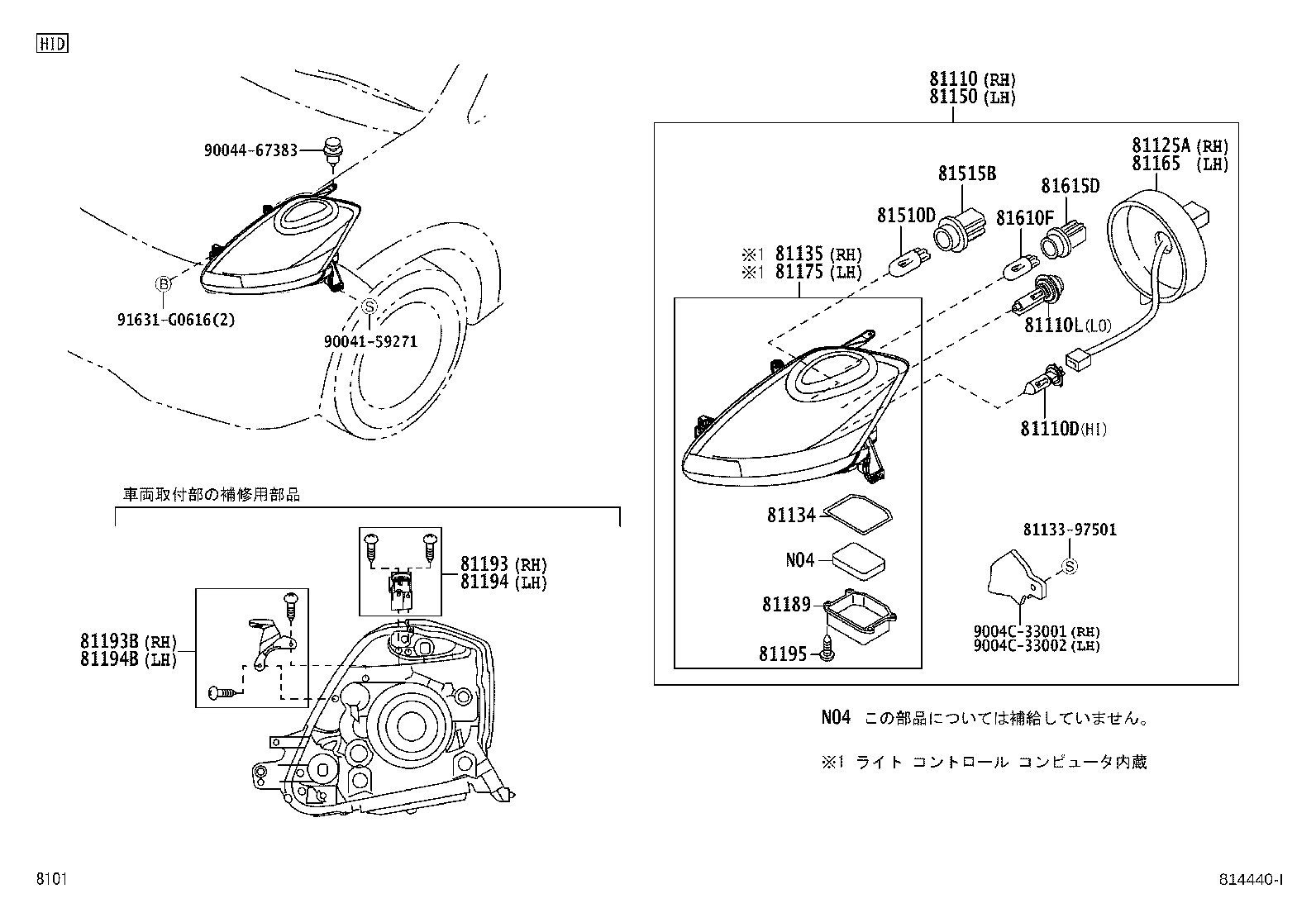

HID
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-B1230 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81110-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 81110-B1060 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81110-B1240 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90049-51156 |
KGC15..G;KGC10,QNC10..G,X 12V 55W H7,ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),ﾊｲﾋﾞｰﾑ (HID)H7 |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90049-51145 |
KGC15..G;KGC10,QNC10..G,X 12V 35W(D2R),ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-97209 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68001 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-B1040 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81130-97423 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81130-B1030 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81130-97418 |
KGC1#,QNC10..G,X |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-B1060 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81150-B1230 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81150-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 81150-B1240 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81165-97202 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-97418 |
KGC1#,QNC10..G,X |
1 | ||
| 81170-B1040 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81170-97423 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81170-B1030 |
KGC1#,QNC10..G,X W/ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 90075-67003 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-B1020 |
KGC1#,QNC10 |
1 | ||
| 81193-B1030 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-B1010 |
KGC1#,QNC10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-B1020 |
KGC1#,QNC10 |
1 | ||
| 81194-B1030 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-B1010 |
KGC1#,QNC10 |
1 | ||
| 81195 - SCREW, HEADLAMP | ||||
| 81193-97202 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
8 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90049-51148 |
KGC1#,QNC10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
KGC15..G;KGC10,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ) |
2 | ||
| 90075-60006 |
KGC1#,QNC10..G,X |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11013 |
KGC1#,QNC10 12V 5W T10 |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9004C-82001 |
KGC1#,QNC10 |
2 | ||
| 90075-60046 |
KGC1#,QNC10..G,X |
2 | ||
| 9004C-82001 |
KGC1#,QNC10 |
2 | ||
| Common parts | ||||
| 81133-97501 | ||||
| 90041-59271 | ||||
| 90044-67383 | ||||
| 9004C-33001 | ||||
| 9004C-33002 | ||||
| 91631-G0616 | ||||
