KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

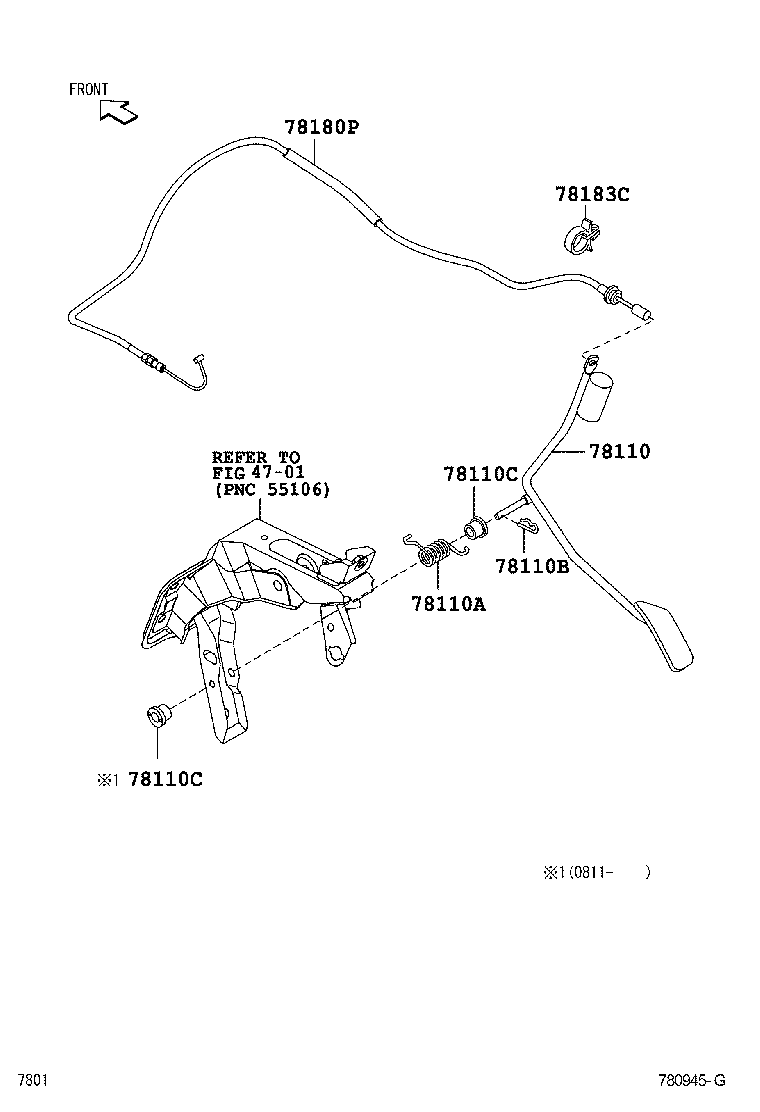

Click highlighted areas on diagram

diagram 4701 78110 78110A 78110B 78110C 78110C 78180P 78183C
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78101-B1010

KGC1#,QNC10

 1
78101-B1011

KGC1#,QNC10

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
78214-B1010

QNC10;KGC1#..G,X

 1
78214-B1011

KGC1#,QNC10

 1
78110B - CLIP, ACCELERATOR BELLCRANK
90044-68207

KGC1#,QNC10

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90043-86112

KGC1#,QNC10

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90043-86112

KGC1#,QNC10

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-B1010

KGC1#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-B2020

KGC1#,QNC10

 1
Linked diagrams
4701
