KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-0612)

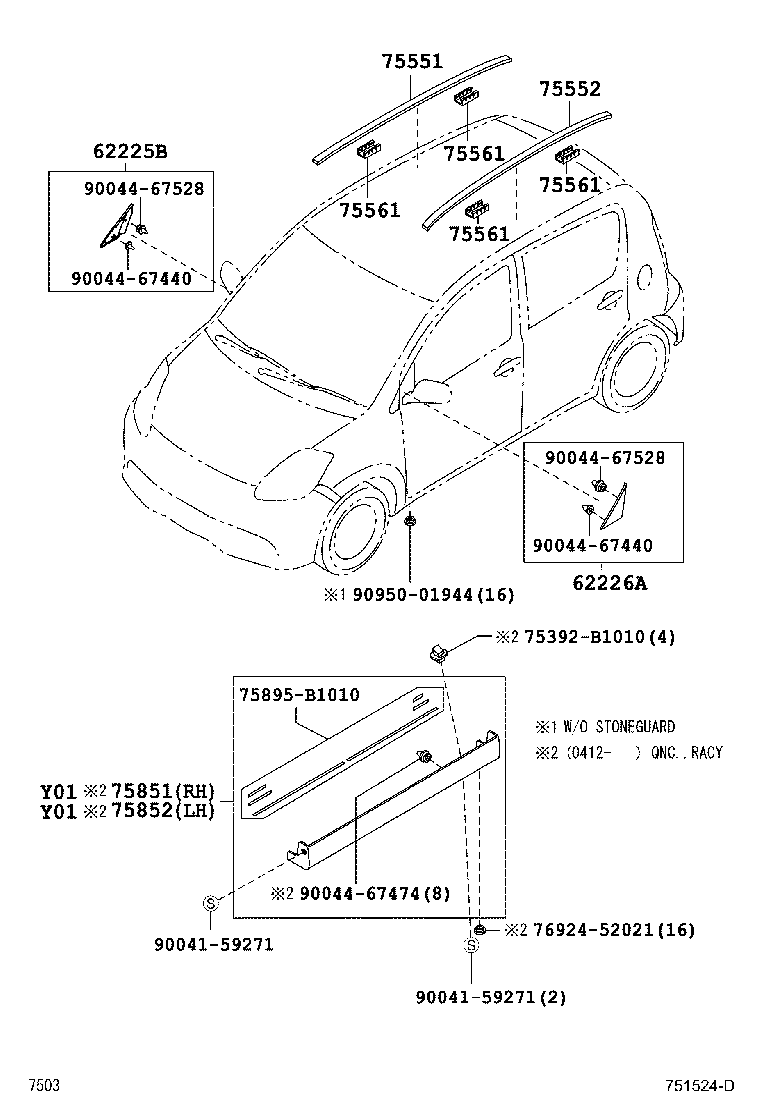

Click highlighted areas on diagram

diagram 62225B 62226A 75392B1010 75551 75552 75561 75561 75561 75561 75851 75852 75895B1010 7692452021 9004159271 9004159271 9004467440 9004467440 9004467474 9004467528 9004467528 9095001944
Part # Description Qty Price
62225B - GARNISH, FRONT PILLAR, LOWER RH
62225-B1010

KGC1#,QNC10

 1
62226A - GARNISH, FRONT PILLAR, LOWER LH
62226-B1010

KGC1#,QNC10

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-B1010

KGC1#,QNC10

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75551-B1010

KGC1#,QNC10

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-B1020

KGC1#,QNC10

両面ﾃｰﾌﾟ付き

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-B1020

KGC1#,QNC10

両面ﾃｰﾌﾟ付き

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-B1020

KGC1#,QNC10

両面ﾃｰﾌﾟ付き

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-B1020

KGC1#,QNC10

両面ﾃｰﾌﾟ付き

 4
Common parts
75392-B1010
75895-B1010
76924-52021
90041-59271
90044-67440
90044-67474
90044-67528
90950-01944
