KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-0612)

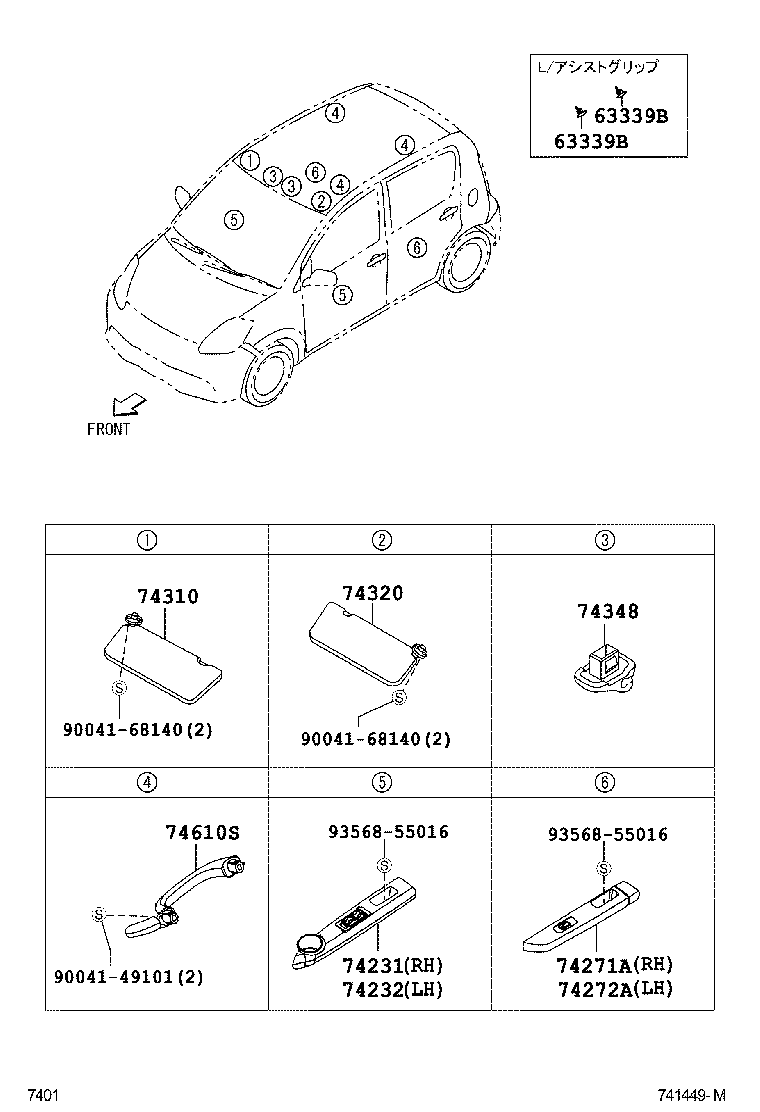

Click highlighted areas on diagram

diagram 63339B 63339B 74231 74232 74271A 74272A 74310 74320 74348 74610S 9004149101 9004168140 9004168140 9356855016 9356855016
Part # Description Qty Price
63339B - COVER,
63339-B2010B0

KGC1#..X

LT.GRAY,TRIM1#

 4
63339B - COVER,
63339-B2010B0

KGC1#..X

LT.GRAY,TRIM1#

 4
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B1010E0

KGC1#,QNC10

-,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B1010E0

KGC1#,QNC10

-,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-B1010E0

KGC1#,QNC10

-,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-B1010E0

KGC1#,QNC10

-,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-B1020B0

KGC1#,QNC10

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-B1070B0

KGC1#,QNC10

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-97401B0

KGC1#,QNC10

LT.GRAY,TRIM1#

 2
74610S - GRIP ASSY, ASSIST
74611-B2010B0

KGC1#..X

LT.GRAY,TRIM1#

 1
74611-B2010B0

KGC1#..X

SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LT.GRAY,TRIM1#

 3
Common parts
90041-49101
90041-68140
93568-55016
