KGC10-AHSAK (2004)
Toyota Passo

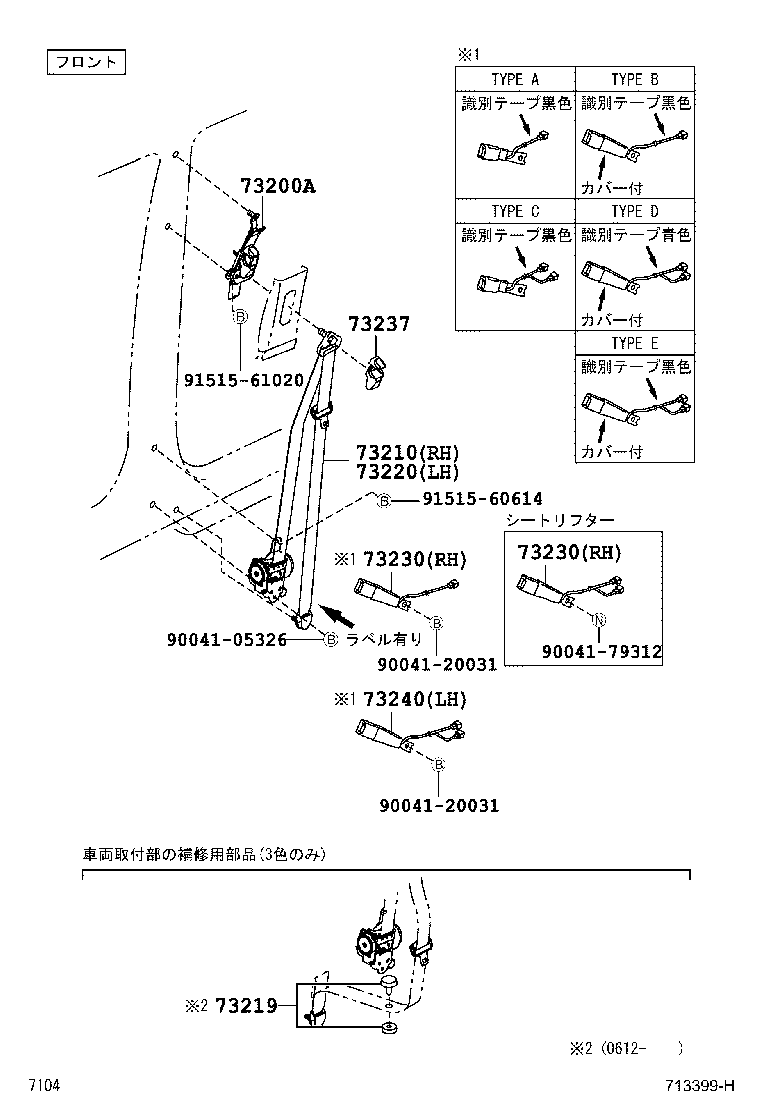

ILLUST NO. 1 OF 2(0405-1002)
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-B1060B0 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 73210-B1060B0 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ,SHADOW GRAY,TRIM1# |
1 | ||
| 73210-B1060B0 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,ﾌﾟﾘﾃﾝｼｮﾅﾂｷ 7M7800−P |
1 | ||
| 73210-B1010B0 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,ﾌﾟﾘﾃﾝｼｮﾅﾂｷ 7M3620−P |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-B1010B0 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,ﾌﾟﾘﾃﾝｼｮﾅﾂｷ 7M4620−P |
1 | ||
| 73220-B1060B0 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞA P席ﾘﾌﾄｱｯﾌﾟ,SHADOW GRAY,TRIM1#,ﾌﾟﾘﾃﾝｼｮﾅ ﾂｷ |
1 | ||
| 73220-B1060B0 |
KGC1#,QNC10..G,X 特殊用途 ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ,SHADOW GRAY,TRIM1#,ﾌﾟﾘﾃﾝｼｮﾅ ﾂｷ |
1 | ||
| 73220-B1070B0 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,ﾌﾟﾘﾃﾝｼｮﾅﾂｷ 7M8800−P |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 73230-B2050S2 |
KGC15..G;KGC10,QNC10..G,X ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 73230-B2050S2 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC1#,QNC10 DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC15..G;KGC10,QNC10..G,X ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S),DK.GRAY,TRIM1# |
1 | ||
| 73230-B2050S2 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 73230-B2050S2 |
KGC15..G;KGC10,QNC10..G,X ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 73230-B2050S2 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC1#,QNC10 DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC15..G;KGC10,QNC10..G,X ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S),DK.GRAY,TRIM1# |
1 | ||
| 73230-B2050S2 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1# |
1 | ||
| 73230-B2050S2 |
KGC10 四国限定車 *(S)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 73237 - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-B1020B0 |
KGC1#,QNC10 DK.GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 73230-B1080B0 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1080B0 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席),DK.GRAY,TRIM1#,ﾀｲﾌﾟD |
1 | ||
| 73230-B1080B0 |
KGC15..G;KGC10,QNC10..G,X SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1050B0 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,ﾀｲﾌﾟ E |
1 | ||
| 73230-B1080B0 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1080B0 |
KGC15..G;KGC10,QNC10..G,X ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1080B0 |
KGC1#,QNC10 DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1080B0 |
KGC10 ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1080B0 |
KGC15..G;KGC10,QNC10..G,X ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ D |
1 | ||
| 73230-B1050B0 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ﾌﾛﾝﾄ ｼｰﾄ 上下 ｱｼﾞｬｽﾀｰ−有り(ﾄﾞﾗｲﾊﾞｰ席)&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,ﾀｲﾌﾟd |
1 | ||
| 73230-B1050B0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席),DK.GRAY,ﾀｲﾌﾟ E |
1 | ||
| 73230-B1050B0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ E |
1 | ||
| 73230-B1050B0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｼｰﾄ ﾊﾞｯｸ ﾎﾟｹｯﾄ−ｺﾝﾋﾞﾆﾌｯｸ有り(助手席)&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,DK.GRAY,ﾀｲﾌﾟ E |
1 | ||
| Common parts | ||||
| 90041-05326 | ||||
| 90041-20031 | ||||
| 90041-79312 | ||||
| 91515-60614 | ||||
| 91515-61020 | ||||

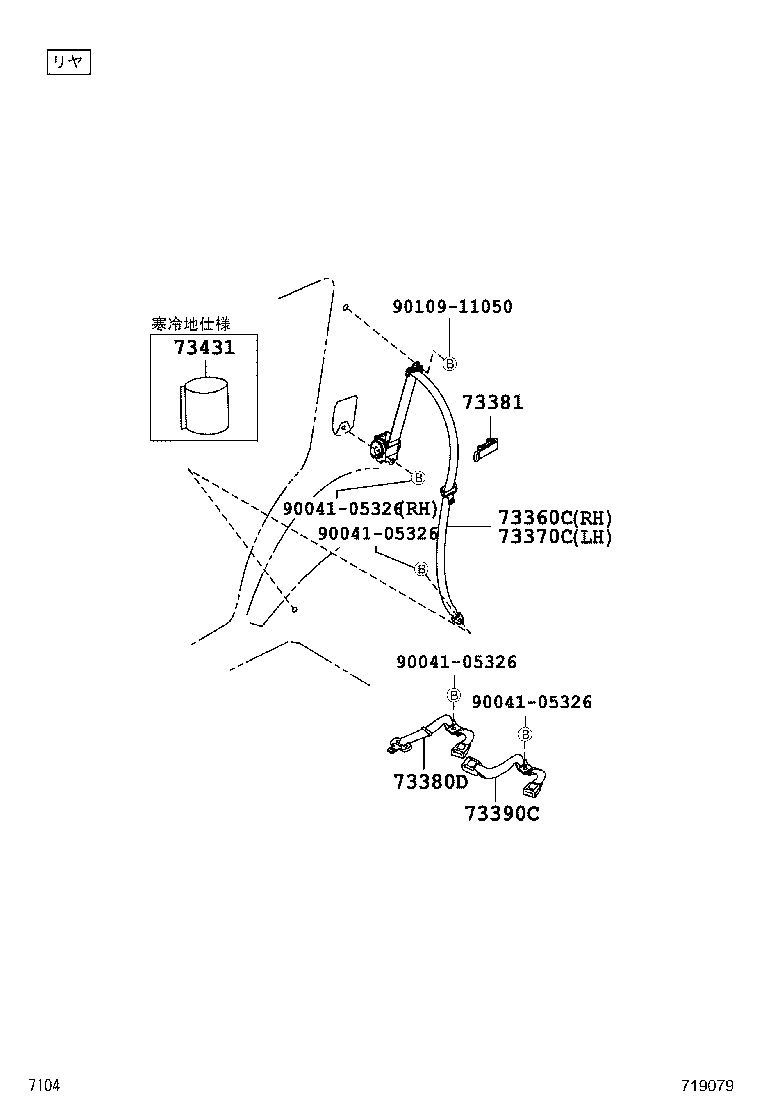

ILLUST NO. 2 OF 2(0405-1002)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1#,2ﾎﾟｲﾝﾄ ﾀｲﾌﾟ |
1 | ||
| 73360-B1010B1 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,2ﾎﾟｲﾝﾄ ﾀｲﾌﾟ |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1#,2ﾎﾟｲﾝﾄ ﾀｲﾌﾟ |
1 | ||
| 73370-B1010B1 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,2ﾎﾟｲﾝﾄ ﾀｲﾌﾟ |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73470-B1010B1 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,2ﾎﾟｲﾝﾄ ﾀｲﾌﾟ |
1 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-87202B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73480-B1010B1 |
KGC1#,QNC10 SHADOW GRAY,TRIM1#,2ﾎﾟｲﾝﾄ ﾀｲﾌﾟ |
1 | ||
| 73431 - COVER, REAR SEAT BELT RETRACTOR, RH | ||||
| 73431-97201 |
KGC1#,QNC10 寒冷地仕様 |
2 | ||
| Common parts | ||||
| 90041-05326 | ||||
| 90109-11050 | ||||
