KGC10-AHSAK (2004)
Toyota Passo
(0405-0511)

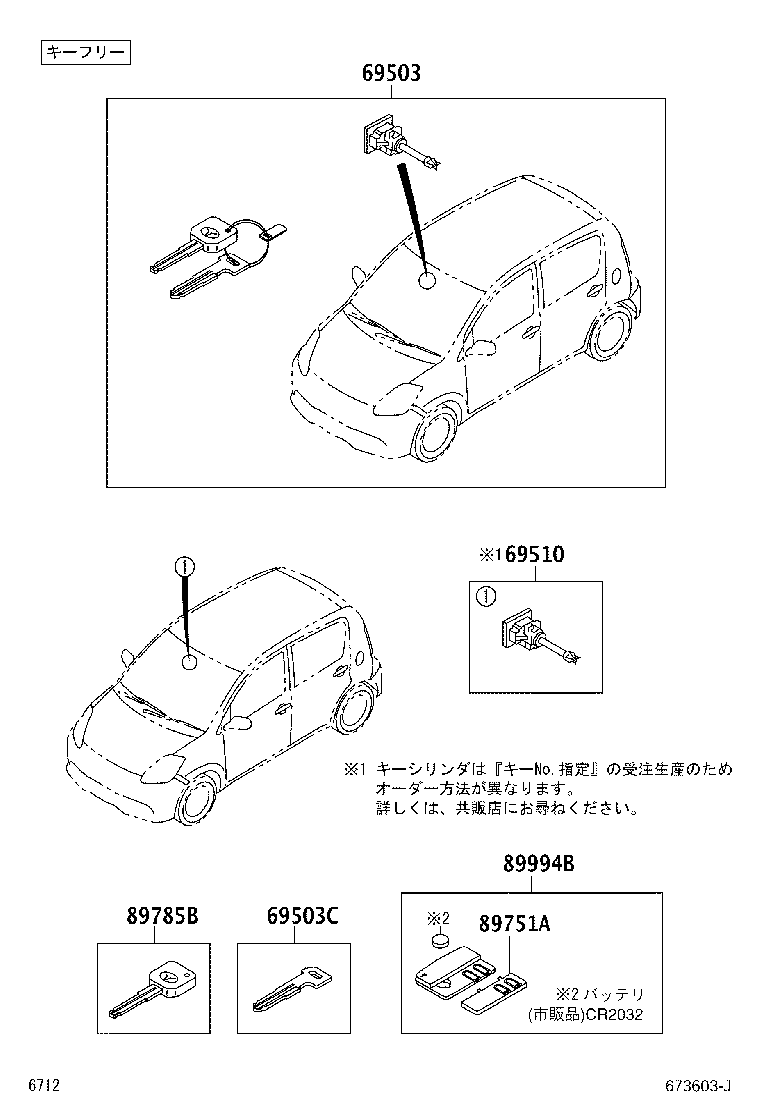

ｷｰﾌﾘｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-B1060 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ,* |
1 | ||
| 69005-B1280 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 69005-B1060 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ),* |
1 | ||
| 69005-B1260 |
KGC10 四国限定車 *(S) |
1 | ||
| 69005-B1260 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 69005-B1050 |
KGC1#,QNC10 ｷｰﾚｽ用 |
1 | ||
| 69005-B1100 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 69503C - KEY, SUB | ||||
| 69516-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ,ﾌﾞﾗﾝｸ ｷｰ |
1 | ||
| 69516-B1010 |
KGC10 四国限定車 *(S) |
1 | ||
| 69516-B2010 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ),ﾌﾞﾗﾝｸ ｷｰ |
1 | ||
| 69516-B1010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ,ﾌﾞﾗﾝｸ ｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-B1010 |
KGC10 四国限定車 *(S) |
1 | ||
| 69510-B1010 |
KGC1#,QNC10 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89751-B4020 |
KGC1#,QNC10 |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 58452-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89751-B4020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89751-B4020 |
KGC1#,QNC10 |
1 | ||
| 89751-B4030 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89751-B4020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-B1050 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,ﾌﾞﾗﾝｸ ｷｰ |
1 | ||
| 89785-97402 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-B1022 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89994-B1060 |
KGC10 四国限定車 *(S) |
1 | ||
| 89994-B1021 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89994-B1060 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89994-B1020 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
(0405-0511)

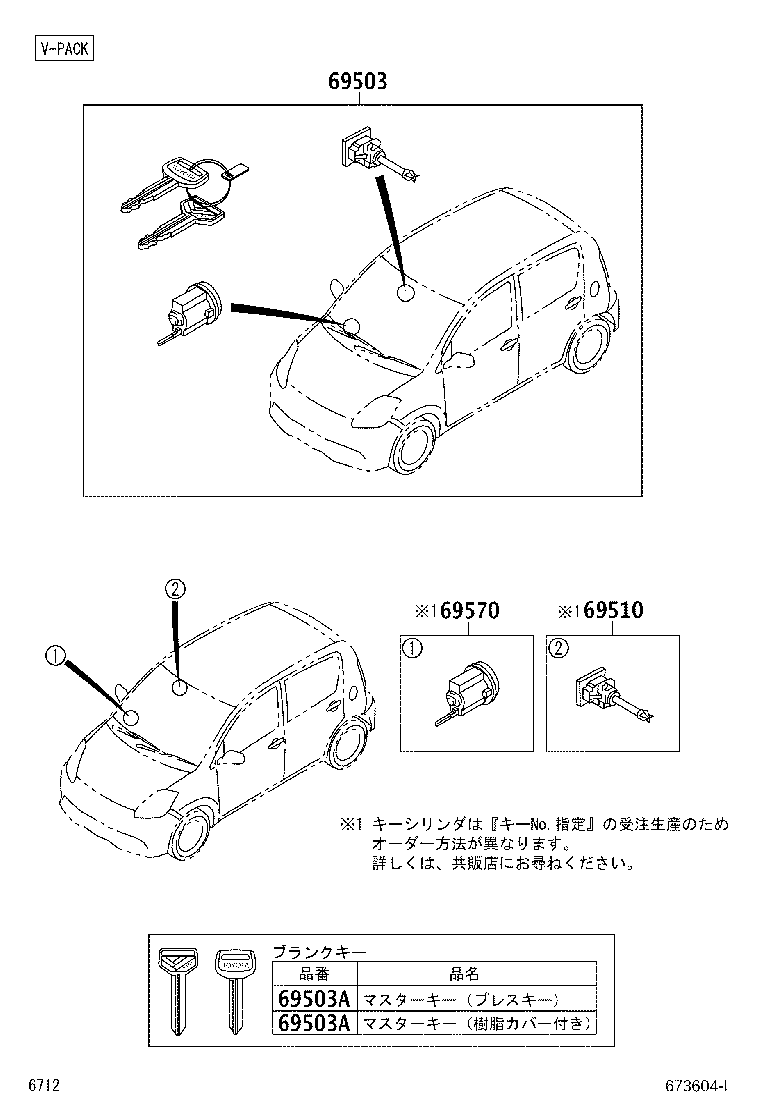

V-PACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-B1060 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ,* |
1 | ||
| 69005-B1280 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 69005-B1060 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ),* |
1 | ||
| 69005-B1260 |
KGC10 四国限定車 *(S) |
1 | ||
| 69005-B1260 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 69005-B1050 |
KGC1#,QNC10 ｷｰﾚｽ用 |
1 | ||
| 69005-B1100 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00174 |
KGC10 ﾏｽﾀｰｷｰ,*68付き,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ鴻bｸ),樹脂製ｶﾊﾞｰ付 |
3 | ||
| 90999-00153 |
KGC1#,QNC10 ﾌﾟﾚｽｷｰ |
2 | ||
| 90999-00153 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ),ﾌﾟﾚｽｷｰ |
3 | ||
| 90999-00174 |
KGC10 ﾏｽﾀｰｷｰ,*68付き,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ鴻bｸ),樹脂製ｶﾊﾞｰ付 |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00174 |
KGC10 ﾏｽﾀｰｷｰ,*68付き,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ鴻bｸ),樹脂製ｶﾊﾞｰ付 |
3 | ||
| 90999-00153 |
KGC1#,QNC10 ﾌﾟﾚｽｷｰ |
2 | ||
| 90999-00153 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ),ﾌﾟﾚｽｷｰ |
3 | ||
| 90999-00174 |
KGC10 ﾏｽﾀｰｷｰ,*68付き,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ鴻bｸ),樹脂製ｶﾊﾞｰ付 |
2 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-B1010 |
KGC10 四国限定車 *(S) |
1 | ||
| 69510-B1010 |
KGC1#,QNC10 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-B2010 |
KGC1#,QNC10 |
1 | ||
| 69570-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 69570-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
(0405-0612)

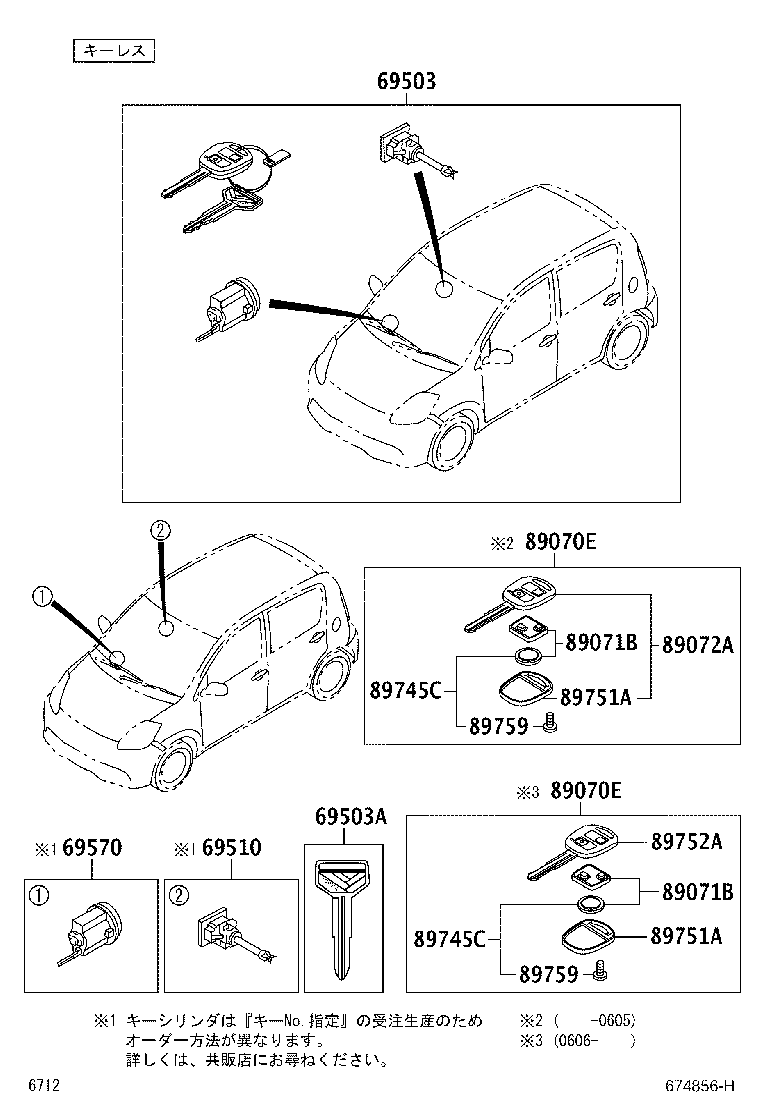

ｷｰﾚｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-B1060 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ,* |
1 | ||
| 69005-B1280 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 69005-B1060 |
KGC15..G;KGC10,QNC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ),* |
1 | ||
| 69005-B1260 |
KGC10 四国限定車 *(S) |
1 | ||
| 69005-B1260 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 69005-B1050 |
KGC1#,QNC10 ｷｰﾚｽ用 |
1 | ||
| 69005-B1100 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00174 |
KGC10 ﾏｽﾀｰｷｰ,*68付き,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ鴻bｸ),樹脂製ｶﾊﾞｰ付 |
3 | ||
| 90999-00153 |
KGC1#,QNC10 ﾌﾟﾚｽｷｰ |
2 | ||
| 90999-00153 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ),ﾌﾟﾚｽｷｰ |
3 | ||
| 90999-00174 |
KGC10 ﾏｽﾀｰｷｰ,*68付き,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ鴻bｸ),樹脂製ｶﾊﾞｰ付 |
2 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-B1010 |
KGC10 四国限定車 *(S) |
1 | ||
| 69510-B1010 |
KGC1#,QNC10 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-B2010 |
KGC1#,QNC10 |
1 | ||
| 69570-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 69570-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-B1021 |
KGC1#,QNC10 |
1 | ||
| 89070-B1020 |
KGC1#,QNC10 |
1 | ||
| 89070-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89070-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89070-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89070-B1021 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89070-B1021 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89070-B1021 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-B1021 |
KGC1#,QNC10 |
1 | ||
| 89070-B1020 |
KGC1#,QNC10 |
1 | ||
| 89070-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89070-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89070-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89070-B1021 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89070-B1021 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89070-B1021 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89071-B1020 |
KGC1#,QNC10 |
1 | ||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89071-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89071-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89071-B1020 |
KGC1#,QNC10 |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89071-B1020 |
KGC1#,QNC10 |
1 | ||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89071-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89071-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89071-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89071-B1020 |
KGC1#,QNC10 |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-B1020 |
KGC1#,QNC10 |
1 | ||
| 89072-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89072-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89072-B1020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-B2010 |
KGC1#,QNC10 CR1616 |
1 | ||
| 89745-B2010 |
KGC15..G;KGC10,QNC10..G,X CR1616,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89745-B2010 |
KGC15..G;KGC10,QNC10..G,X CR1616,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89745-B2010 |
KGC10 CR1616,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-B2010 |
KGC1#,QNC10 CR1616 |
1 | ||
| 89745-B2010 |
KGC15..G;KGC10,QNC10..G,X CR1616,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89745-B2010 |
KGC15..G;KGC10,QNC10..G,X CR1616,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89745-B2010 |
KGC10 CR1616,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89751-B4020 |
KGC1#,QNC10 |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 58452-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89751-B4020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89751-B4020 |
KGC1#,QNC10 |
1 | ||
| 89751-B4030 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89751-B4020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89751-B4020 |
KGC1#,QNC10 |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 58452-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89751-B4020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89751-B4020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89751-B4020 |
KGC1#,QNC10 |
1 | ||
| 89751-B4030 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 89751-B4020 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-B1010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89752-B1010 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89752-B1010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89752-B1010 |
KGC1#,QNC10 |
1 | ||
| 89759 - SCREW, DOOR CONTROL TRANSMITTER | ||||
| 89759-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89759-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89759-B2010 |
KGC1#,QNC10 |
1 | ||
| 89759-B2010 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89759-B2020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
4 | ||
| 89759 - SCREW, DOOR CONTROL TRANSMITTER | ||||
| 89759-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&有り(ｷｰﾌﾘｰｼｽﾃﾑ) |
1 | ||
| 89759-B2010 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ&ｷｰﾌﾘｰｼｽﾃﾑ+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 89759-B2010 |
KGC1#,QNC10 |
1 | ||
| 89759-B2010 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ&無し(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ) |
1 | ||
| 89759-B2020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
4 | ||
Part Price Details
Loading price information...
Part Number:
Price:
