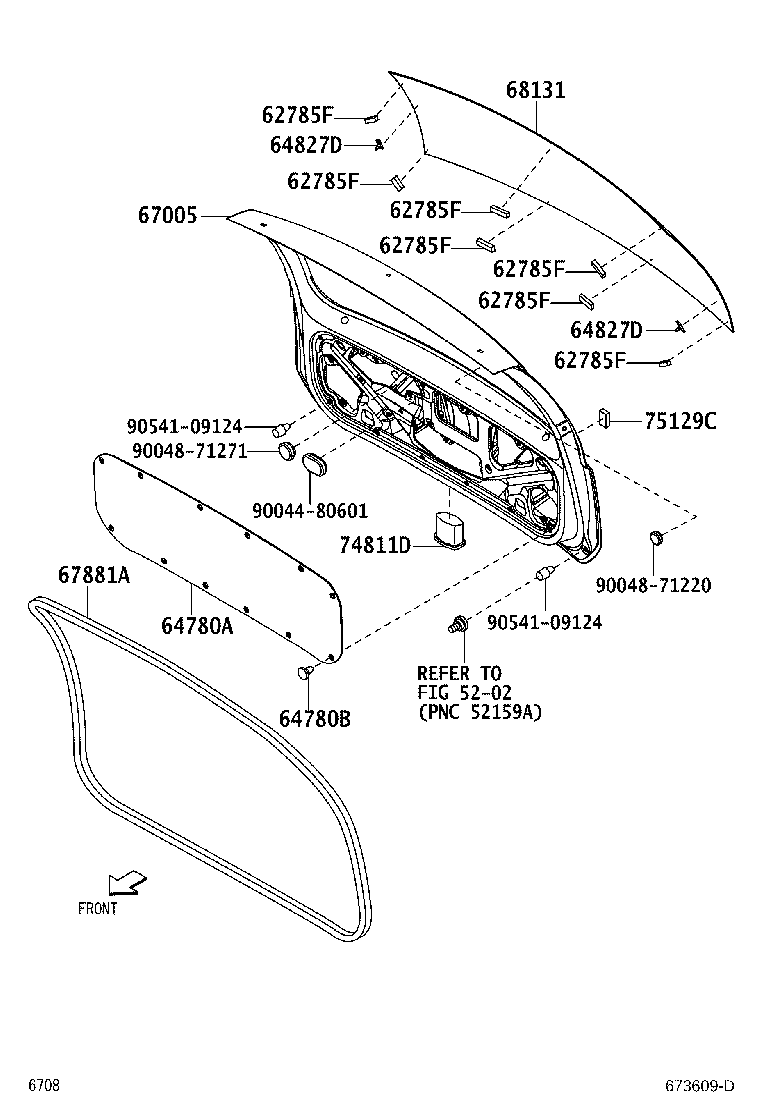

Toyota Passo KGC10 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
62785F - SPACER, BACK DOOR GLASS
64818-87704	KGC1#,QNC10	05/2004 - 12/2006	7
64780A - PANEL ASSY, BACK DOOR TRIM
64780-B1010S1	KGC1#,QNC10 BS74,TRIM1#	05/2004 - 12/2006	1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-07076B7	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	12
64827D - CLIP, BACK WINDOW GLASS
64827-87701	KGC1#,QNC10	05/2004 - 12/2006	2
64827D - CLIP, BACK WINDOW GLASS
64827-87701	KGC1#,QNC10	05/2004 - 12/2006	2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
67005-B1020	KGC10 ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ無し&ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟﾅｼ	05/2004 - 12/2005	1
67005-B1030	KGC10 ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟﾅｼ	05/2004 - 12/2005	1
67005-B1040	KGC10 ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ無し	05/2004 - 12/2006	1
67881A - WEATHERSTRIP, BACK DOOR
67881-B1011	KGC1#,QNC10	02/2006 - 12/2006	1
67881-B1010	QNC10;KGC1#..G,X	05/2004 - 02/2006	1
68131 - GLASS, BACK DOOR
68131-B1010	KGC10 *TT,厚さ=3.1,ｸﾞﾘｰﾝ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
68131-B1020	KGC1#,QNC10 *TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ	05/2004 - 12/2006	1
74811D - HANDLE, DOOR PULL
74811-13010C0	KGC1#,QNC10 BLACK	05/2004 - 12/2006	1
75129C - CUSHION, REAR LICENCE PLATE
75129-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
Common parts
90044-80601
90048-71220
90048-71271
90541-09124
Linked diagrams
5202

KGC10-AHSAK (2004)

(0405-0612)
