KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-0612)

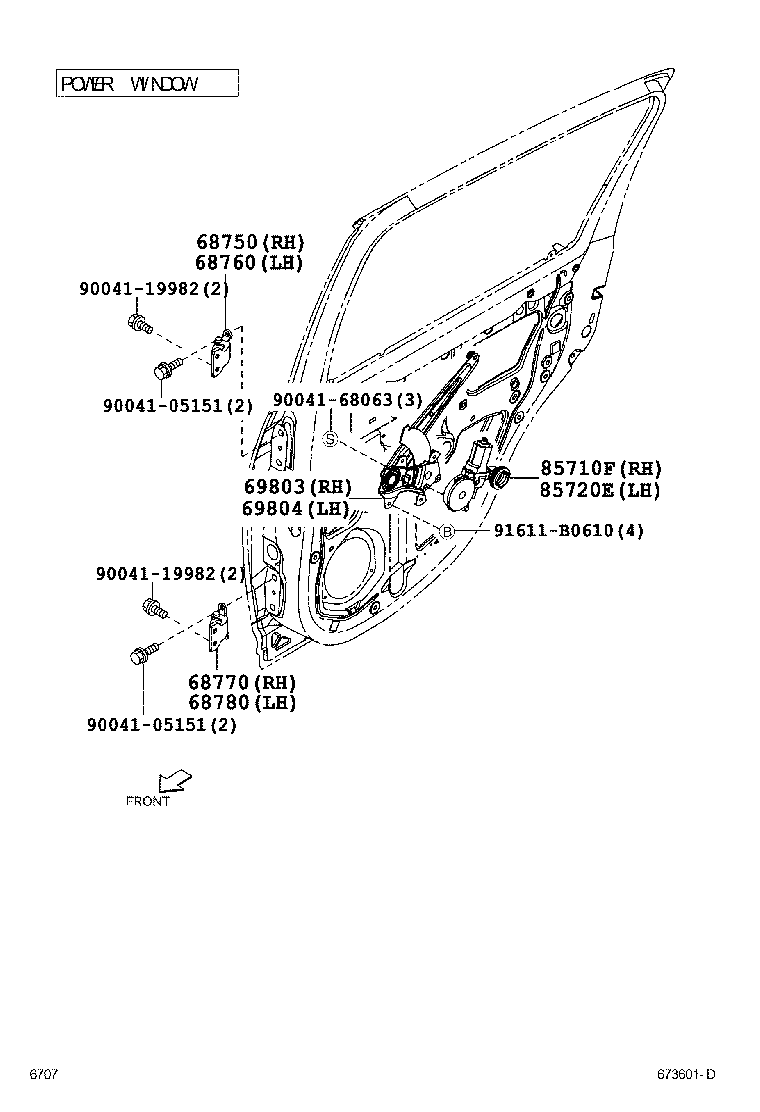

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 85710F 85720E 9004105151 9004105151 9004119982 9004119982 9004168063 91611B0610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-B1010

KGC1#,QNC10

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-B1010

KGC1#,QNC10

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68760-B1010

KGC1#,QNC10

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68750-B1010

KGC1#,QNC10

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-B1010

KGC1#,QNC10

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-B1010

KGC1#,QNC10

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-B2030

KGC1#,QNC10

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-B2040

KGC1#,QNC10

 1
Common parts
90041-05151
90041-19982
90041-68063
91611-B0610
