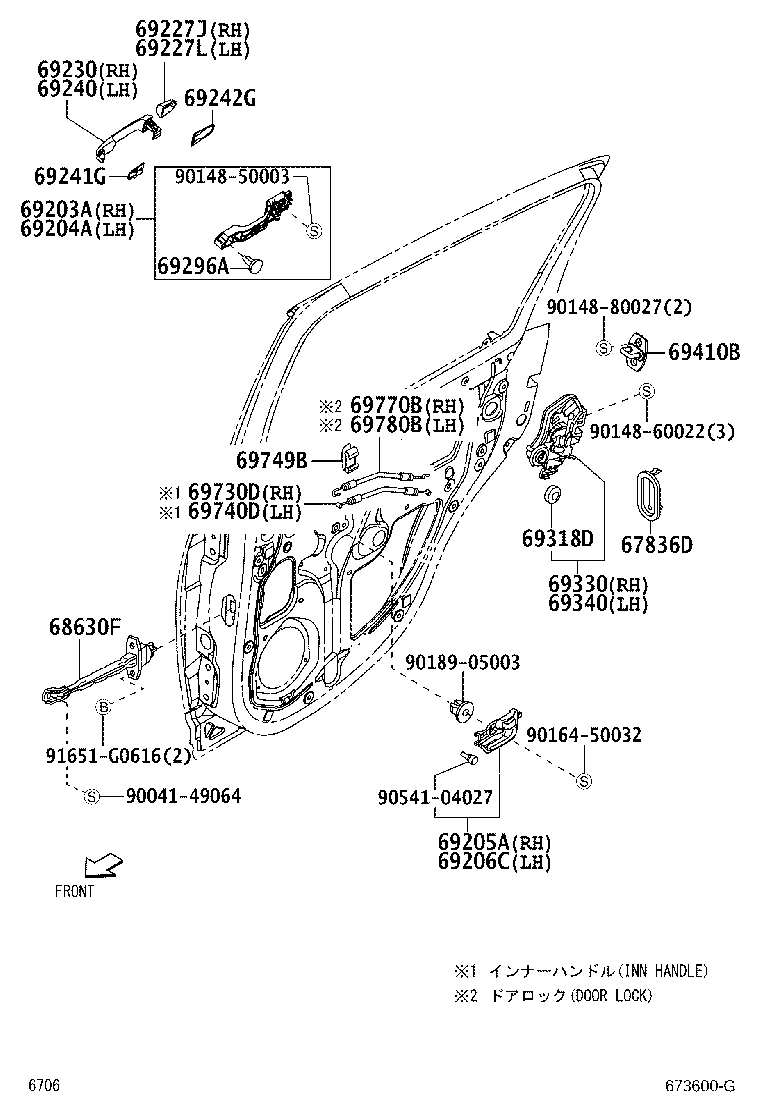

Toyota Passo KGC10 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040	KGC1#,QNC10	05/2004 - 12/2006	2
68630F - CHECK ASSY, REAR DOOR
68640-B1010	KGC1#,QNC10 左側	05/2004 - 12/2006	1
68630-B1010	KGC1#,QNC10 右側	05/2004 - 12/2006	1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-B1010W6	KGC1#,QNC10 WHITE PEARL.MC.,W16	05/2004 - 12/2006	1
69227-B1010S8	KGC1#,QNC10 SILVER ME.,S28	05/2004 - 12/2006	1
69227-B1010B2	KGC1#,QNC10 DK.BLUE M.M.,B42	05/2004 - 12/2006	1
69227-B1010R3	KGC1#,QNC10..G,X MD CORAL ME.,R43	05/2004 - 12/2006	1
69227-B1010W9	KGC1#,QNC10 WHITE,W09	05/2004 - 12/2006	1
69227-B1010G0	KGC1#,QNC10..G,X LIME GREEN ME.,G40	05/2004 - 12/2006	1
69227-B1010R0	KGC1#,QNC10 RED,R40	05/2004 - 12/2006	1
69227-B1020	KGC10 ﾌﾞﾗｯｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
69227-B1010B7	KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57	05/2004 - 12/2006	1
69227-B1010X7	KGC1#,QNC10 BLACK M.M.,X07	05/2004 - 12/2006	1
69227-B1010T7	KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17	05/2004 - 12/2006	1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-B1010B7	KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57	05/2004 - 12/2006	1
69227-B1010G0	KGC1#,QNC10..G,X LIME GREEN ME.,G40	05/2004 - 12/2006	1
69227-B1010S8	KGC1#,QNC10 SILVER ME.,S28	05/2004 - 12/2006	1
69227-B1010B2	KGC1#,QNC10 DK.BLUE M.M.,B42	05/2004 - 12/2006	1
69227-B1010R3	KGC1#,QNC10..G,X MD CORAL ME.,R43	05/2004 - 12/2006	1
69227-B1010W6	KGC1#,QNC10 WHITE PEARL.MC.,W16	05/2004 - 12/2006	1
69227-B1010R0	KGC1#,QNC10 RED,R40	05/2004 - 12/2006	1
69227-B1010W9	KGC1#,QNC10 WHITE,W09	05/2004 - 12/2006	1
69227-B1020	KGC10 ﾌﾞﾗｯｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
69227-B1010T7	KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17	05/2004 - 12/2006	1
69227-B1010X7	KGC1#,QNC10 BLACK M.M.,X07	05/2004 - 12/2006	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-B1010B2	KGC1#,QNC10 DK.BLUE M.M.,B42	05/2004 - 12/2006	1
69211-B1010B7	KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57	05/2004 - 12/2006	1
69211-B1010T7	KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17	05/2004 - 12/2006	1
69211-B1010W9	KGC1#,QNC10 WHITE,W09	05/2004 - 12/2006	1
69211-B1010R0	KGC1#,QNC10 RED,R40	05/2004 - 12/2006	1
69211-B1010G0	KGC1#,QNC10..G,X LIME GREEN ME.,G40	05/2004 - 12/2006	1
69211-B1010X7	KGC1#,QNC10 BLACK M.M.,X07	05/2004 - 12/2006	1
69211-B1010S8	KGC1#,QNC10 SILVER ME.,S28	05/2004 - 12/2006	1
69211-B1020	KGC10 塗装不要材料着色黒色,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
69211-B1010W6	KGC1#,QNC10 WHITE PEARL.MC.,W16	05/2004 - 12/2006	1
69211-B1010R3	KGC1#,QNC10..G,X MD CORAL ME.,R43	05/2004 - 12/2006	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-B1010G0	KGC1#,QNC10..G,X LIME GREEN ME.,G40	05/2004 - 12/2006	1
69211-B1010T7	KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17	05/2004 - 12/2006	1
69211-B1010W6	KGC1#,QNC10 WHITE PEARL.MC.,W16	05/2004 - 12/2006	1
69211-B1010S8	KGC1#,QNC10 SILVER ME.,S28	05/2004 - 12/2006	1
69211-B1020	KGC10 塗装不要材料着色黒色,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
69211-B1010B2	KGC1#,QNC10 DK.BLUE M.M.,B42	05/2004 - 12/2006	1
69211-B1010B7	KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57	05/2004 - 12/2006	1
69211-B1010W9	KGC1#,QNC10 WHITE,W09	05/2004 - 12/2006	1
69211-B1010R3	KGC1#,QNC10..G,X MD CORAL ME.,R43	05/2004 - 12/2006	1
69211-B1010X7	KGC1#,QNC10 BLACK M.M.,X07	05/2004 - 12/2006	1
69211-B1010R0	KGC1#,QNC10 RED,R40	05/2004 - 12/2006	1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-B1020	KGC1#,QNC10	05/2004 - 12/2006	2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
69296A - SCREW, DOOR INSIDE HANDLE
69296-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-B1010	KGC1#,QNC10 左側,右側	05/2004 - 12/2006	1
69330 - LOCK ASSY, REAR DOOR, RH
69050-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-B2030	KGC1#,QNC10 左側,右側	05/2004 - 12/2006	1
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-B1010	KGC1#,QNC10 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ	05/2004 - 12/2006	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-B1010	KGC1#,QNC10 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ	05/2004 - 12/2006	1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040	KGC1#,QNC10	05/2004 - 12/2006	2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-B1010	KGC1#,QNC10 ﾄﾞｱﾛﾂｸ	05/2004 - 12/2006	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-B1010	KGC1#,QNC10 ﾄﾞｱﾛﾂｸ	05/2004 - 12/2006	1
Common parts
90041-49064
90148-50003
90148-60022
90148-80027
90164-50032
90189-05003
90541-04027
91651-G0616

KGC10-AHSAK (2004)

(0405-0612)
