Toyota Passo KGC10 REAR DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
PASSO
KGC10-AHSAK (2004)
6705 - REAR DOOR PANEL & GLASS

KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006

Engine 1KRFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

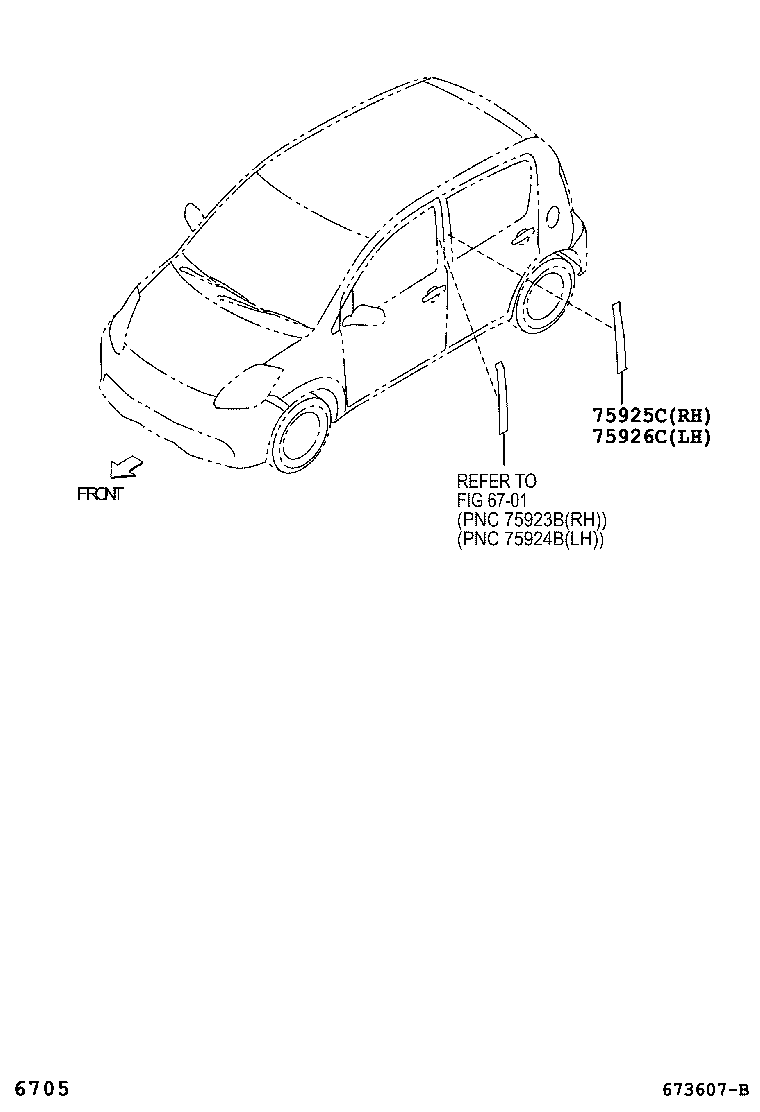

ILLUST NO. 3 OF 3(0405-1002)

Click highlighted areas on diagram

Part #	Description	Period	Qty
75925C - TAPE, BLACK OUT, NO.3 RH
75925-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
75926C - TAPE, BLACK OUT, NO.3 LH
75926-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
Linked diagrams
6701

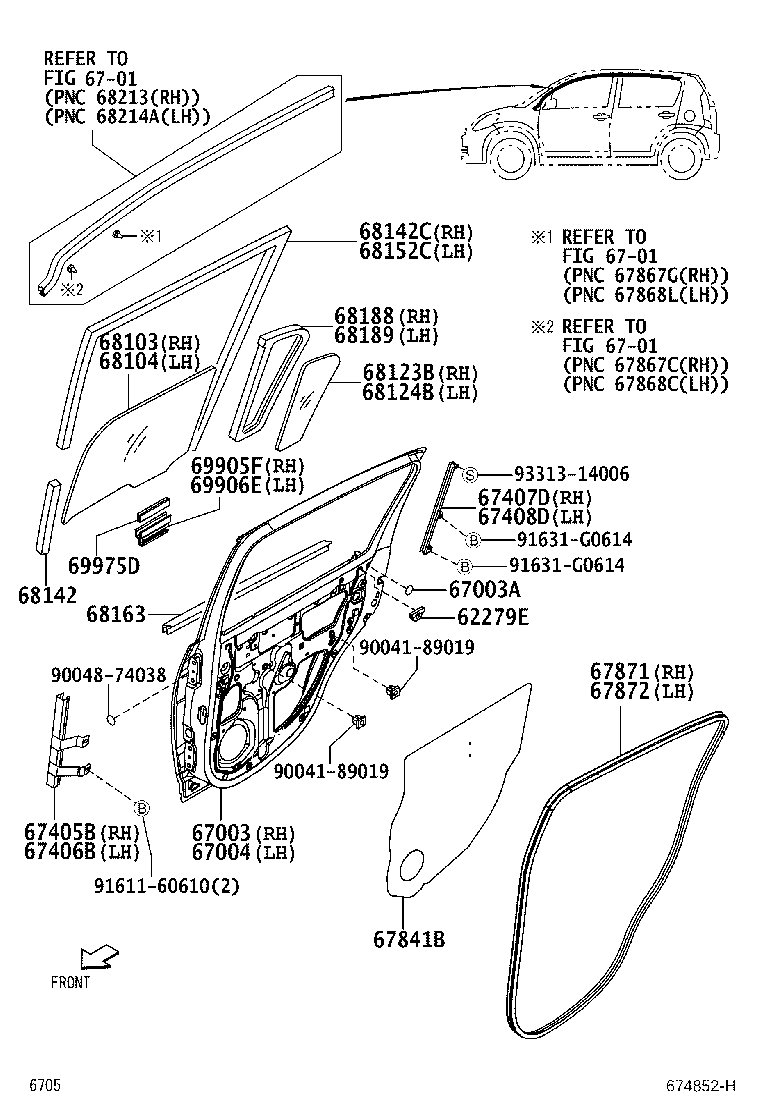

ILLUST NO. 1 OF 3(0405-0612)

Click highlighted areas on diagram

Part #	Description	Period	Qty
62279E - SPACER, SIDE WINDOW FRAME
62279-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90048-74004	KGC1#,QNC10	05/2004 - 06/2004	2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67841B - COVER, REAR DOOR SERVICE HOLE
67841-B1011	KGC1#..X	10/2006 - 12/2006	2
67841-B1010	KGC1#..X	05/2004 - 10/2006	2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-B1010	KGC10 *TEM,厚さ=3.1,ｸﾞﾘｰﾝ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
68113-B1020	KGC1#,QNC10 *TEM,厚さ=3.1,ｽﾓｰｸ	05/2004 - 12/2006	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-B1020	KGC1#,QNC10 *TEM,厚さ=3.1,ｽﾓｰｸ	05/2004 - 12/2006	1
68114-B1010	KGC10 *TEM,厚さ=3.1,ｸﾞﾘｰﾝ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-B1010	KGC10 *TEM,厚さ=3.1,ｸﾞﾘｰﾝ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
68123-B1020	KGC1#,QNC10 *TEM,厚さ=3.1,ｽﾓｰｸ	05/2004 - 12/2006	1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-B1010	KGC10 *TEM,厚さ=3.1,ｸﾞﾘｰﾝ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ	05/2004 - 12/2006	1
68124-B1020	KGC1#,QNC10 *TEM,厚さ=3.1,ｽﾓｰｸ	05/2004 - 12/2006	1
68142 - RUN, REAR DOOR GLASS
68144-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
68142C - RUN, REAR DOOR GLASS, RH
68142-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
68152C - RUN, REAR DOOR GLASS, LH
68152-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68164-B1010	KGC1#,QNC10 左側	05/2004 - 12/2006	1
68163-B1010	KGC1#,QNC10 右側	05/2004 - 12/2006	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
69905F - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-97202	KGC1#,QNC10	05/2004 - 12/2006	1
69906E - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-97202	KGC1#,QNC10	05/2004 - 12/2006	1
69975D - FILLER, REAR DOOR GLASS CHANNAL
69975-97201	KGC1#,QNC10	05/2004 - 12/2006	2
Common parts
90041-89019
90048-74038
91611-60610
91631-G0614
93313-14006
Linked diagrams
6701

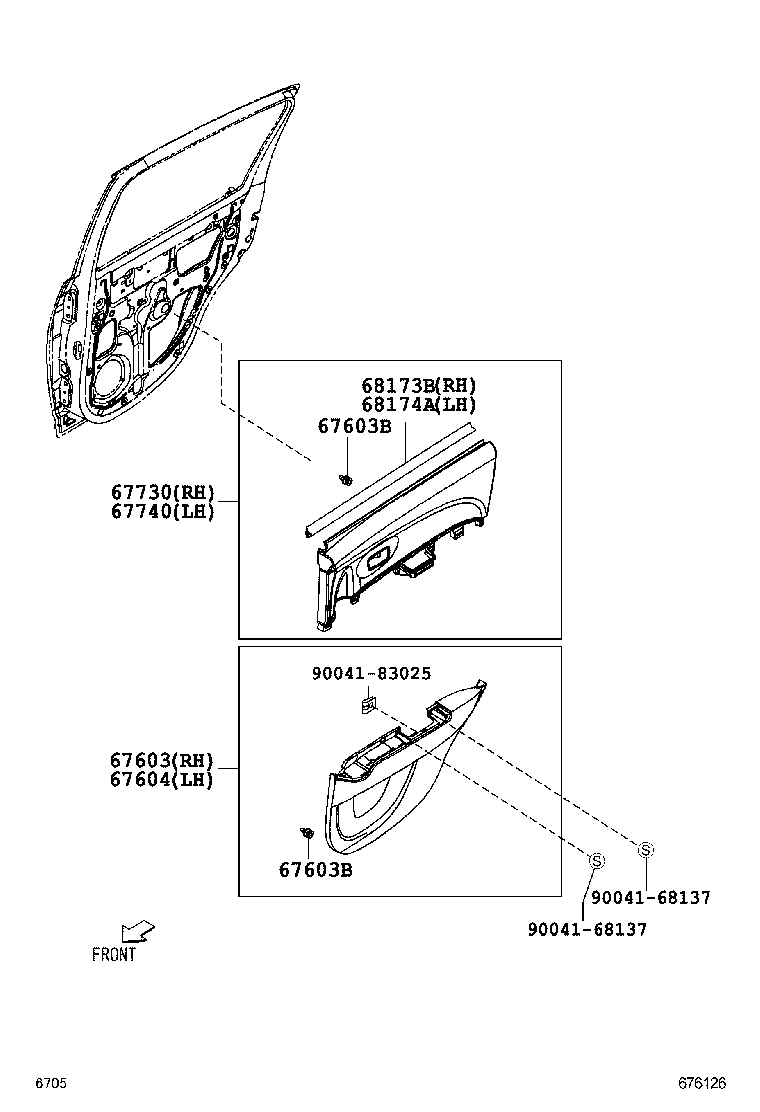

ILLUST NO. 2 OF 3(0405-0612)

Click highlighted areas on diagram

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67030-B1010S1	KGC1#,QNC10 -,TRIM1#	05/2004 - 12/2006	1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206	KGC1#,QNC10	05/2004 - 12/2006	7
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206	KGC1#,QNC10	05/2004 - 12/2006	7
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67040-B1010S1	KGC1#,QNC10 -,TRIM1#	05/2004 - 12/2006	1
67730 - PANEL ASSY, REAR DOOR TRIM, UPPER RH
67730-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
67740 - PANEL ASSY, REAR DOOR TRIM, UPPER LH
67740-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68173-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
Common parts
90041-68137
90041-83025
