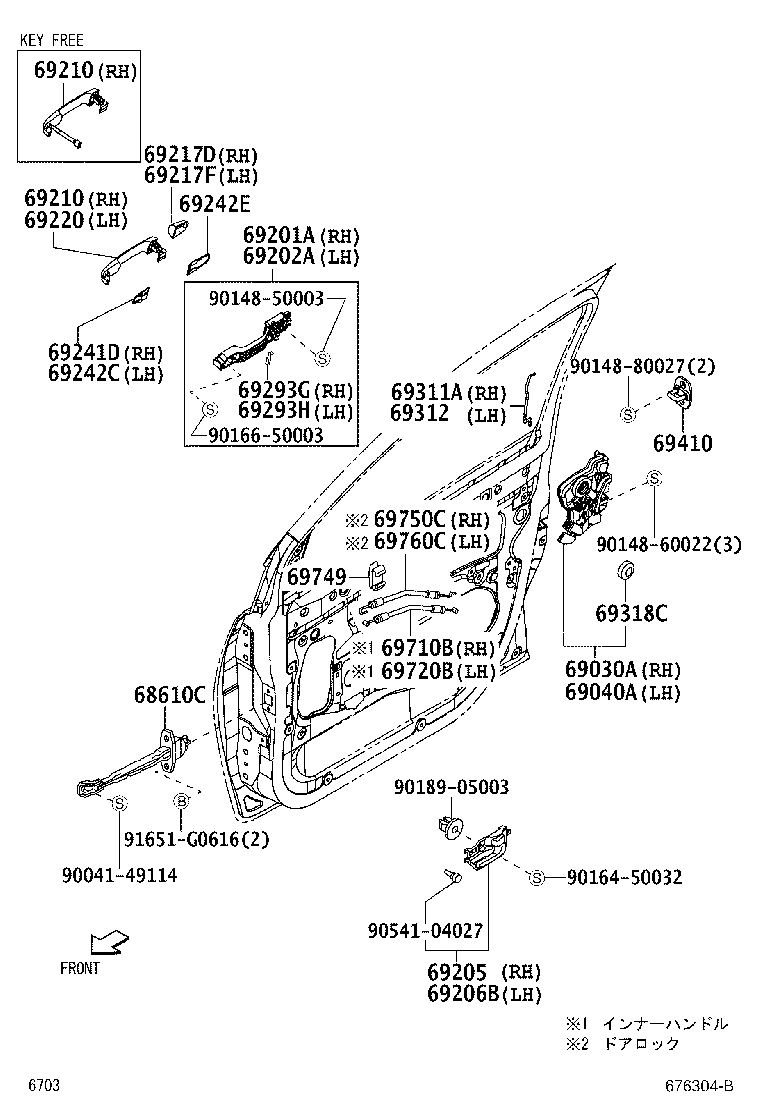

KGC10-AHSAK (2004)
Toyota Passo
(0405-0612) ; (0612-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68610C - CHECK ASSY, FRONT DOOR | ||||
| 68610-B1010 |
KGC1#,QNC10 右側 |
1 | ||
| 68620-B1010 |
KGC1#,QNC10 左側 |
1 | ||
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-B1020 |
KGC1#,QNC10 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-B1010 |
KGC1#,QNC10 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-B1010 |
KGC1#,QNC10 |
1 | ||
| 69201-B1020 |
KGC10 四国限定車 *(S) |
1 | ||
| 69201-B1020 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-B1010 |
KGC1#,QNC10 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-B1010 |
KGC1#,QNC10..G,X |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-B1020T7 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69210-B1020B7 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1020R0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,RED,R40 |
1 | ||
| 69210-B1020B2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.BLUE M.M.,B42 |
1 | ||
| 69210-B1020G0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LIME GREEN ME.,G40 |
1 | ||
| 69210-B1020S8 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,SILVER ME.,S28 |
1 | ||
| 69211-B1010B2 |
KGC1#,QNC10 DK.BLUE M.M.,B42 |
1 | ||
| 69211-B1010G0 |
KGC1#,QNC10..G,X LIME GREEN ME.,G40 |
1 | ||
| 69211-B1010W9 |
KGC1#,QNC10 WHITE,W09 |
1 | ||
| 69211-B1010S8 |
KGC1#,QNC10 SILVER ME.,S28 |
1 | ||
| 69211-B1010W6 |
KGC1#,QNC10 WHITE PEARL.MC.,W16 |
1 | ||
| 69210-B1020R3 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,MD CORAL ME.,R43 |
1 | ||
| 69211-B1010R3 |
KGC1#,QNC10..G,X MD CORAL ME.,R43 |
1 | ||
| 69210-B1020W6 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE PEARL.MC.,W16 |
1 | ||
| 69211-B1010X7 |
KGC1#,QNC10 BLACK M.M.,X07 |
1 | ||
| 69210-B1030A0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE,W09 |
1 | ||
| 69210-B1030J2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1030B0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,SILVER ME.,S28 |
1 | ||
| 69210-B1030D2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,MD CORAL ME.,R43 |
1 | ||
| 69210-B1030C0 |
KGC10 四国限定車 *(S),BLACK M.M.,X07 |
1 | ||
| 69210-B1030E0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69211-B1010B7 |
KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1030C0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK M.M.,X07 |
1 | ||
| 69210-B1020W9 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE,W09 |
1 | ||
| 69210-B1030A3 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE PEARL.MC.,W16 |
1 | ||
| 69211-B1020 |
KGC10 塗装不要 材料着色 黒色,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 69210-B1030D1 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,RED,R40 |
1 | ||
| 69210-B1030G2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LIME GREEN ME.,G40 |
1 | ||
| 69210-B1030J2 |
KGC10 四国限定車 *(S),LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1030E0 |
KGC10 四国限定車 *(S),CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69210-B1030J0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.BLUE M.M.,B42 |
1 | ||
| 69211-B1010R0 |
KGC1#,QNC10 RED,R40 |
1 | ||
| 69210-B1030B0 |
KGC10 四国限定車 *(S),SILVER ME.,S28 |
1 | ||
| 69211-B1010T7 |
KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69210-B1030D1 |
KGC10 四国限定車 *(S),RED,R40 |
1 | ||
| 69210-B1030A3 |
KGC10 四国限定車 *(S),WHITE PEARL.MC.,W16 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-B1020T7 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69210-B1020B7 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1020R0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,RED,R40 |
1 | ||
| 69210-B1020B2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.BLUE M.M.,B42 |
1 | ||
| 69210-B1020G0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LIME GREEN ME.,G40 |
1 | ||
| 69210-B1020S8 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,SILVER ME.,S28 |
1 | ||
| 69211-B1010B2 |
KGC1#,QNC10 DK.BLUE M.M.,B42 |
1 | ||
| 69211-B1010G0 |
KGC1#,QNC10..G,X LIME GREEN ME.,G40 |
1 | ||
| 69211-B1010W9 |
KGC1#,QNC10 WHITE,W09 |
1 | ||
| 69211-B1010S8 |
KGC1#,QNC10 SILVER ME.,S28 |
1 | ||
| 69211-B1010W6 |
KGC1#,QNC10 WHITE PEARL.MC.,W16 |
1 | ||
| 69210-B1020R3 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,MD CORAL ME.,R43 |
1 | ||
| 69211-B1010R3 |
KGC1#,QNC10..G,X MD CORAL ME.,R43 |
1 | ||
| 69210-B1020W6 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE PEARL.MC.,W16 |
1 | ||
| 69211-B1010X7 |
KGC1#,QNC10 BLACK M.M.,X07 |
1 | ||
| 69210-B1030A0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE,W09 |
1 | ||
| 69210-B1030J2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1030B0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,SILVER ME.,S28 |
1 | ||
| 69210-B1030D2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,MD CORAL ME.,R43 |
1 | ||
| 69210-B1030C0 |
KGC10 四国限定車 *(S),BLACK M.M.,X07 |
1 | ||
| 69210-B1030E0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69211-B1010B7 |
KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1030C0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,BLACK M.M.,X07 |
1 | ||
| 69210-B1020W9 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE,W09 |
1 | ||
| 69210-B1030A3 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,WHITE PEARL.MC.,W16 |
1 | ||
| 69211-B1020 |
KGC10 塗装不要 材料着色 黒色,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 69210-B1030D1 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,RED,R40 |
1 | ||
| 69210-B1030G2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,LIME GREEN ME.,G40 |
1 | ||
| 69210-B1030J2 |
KGC10 四国限定車 *(S),LT.BLUE ME.OP.,B57 |
1 | ||
| 69210-B1030E0 |
KGC10 四国限定車 *(S),CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69210-B1030J0 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.BLUE M.M.,B42 |
1 | ||
| 69211-B1010R0 |
KGC1#,QNC10 RED,R40 |
1 | ||
| 69210-B1030B0 |
KGC10 四国限定車 *(S),SILVER ME.,S28 |
1 | ||
| 69211-B1010T7 |
KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69210-B1030D1 |
KGC10 四国限定車 *(S),RED,R40 |
1 | ||
| 69210-B1030A3 |
KGC10 四国限定車 *(S),WHITE PEARL.MC.,W16 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-B1010B7 |
KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 69217-B1010G0 |
KGC1#,QNC10..G,X LIME GREEN ME.,G40 |
1 | ||
| 69217-B1010S8 |
KGC1#,QNC10 SILVER ME.,S28 |
1 | ||
| 69217-B1010R3 |
KGC1#,QNC10..G,X MD CORAL ME.,R43 |
1 | ||
| 69217-B1010B2 |
KGC1#,QNC10 DK.BLUE M.M.,B42 |
1 | ||
| 69217-B1010T7 |
KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69217-B1010R0 |
KGC1#,QNC10 RED,R40 |
1 | ||
| 69217-B1020 |
KGC10 ﾌﾞﾗｯｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 69217-B1010W6 |
KGC1#,QNC10 WHITE PEARL.MC.,W16 |
1 | ||
| 69217-B1010W9 |
KGC1#,QNC10 WHITE,W09 |
1 | ||
| 69217-B1010X7 |
KGC1#,QNC10 BLACK M.M.,X07 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69218-B1010R3 |
KGC1#,QNC10..G,X MD CORAL ME.,R43 |
1 | ||
| 69218-B1010T7 |
KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69218-B1010B7 |
KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 69218-B1010S8 |
KGC1#,QNC10 SILVER ME.,S28 |
1 | ||
| 69218-B1010B2 |
KGC1#,QNC10 DK.BLUE M.M.,B42 |
1 | ||
| 69218-B1010G0 |
KGC1#,QNC10..G,X LIME GREEN ME.,G40 |
1 | ||
| 69218-B1010R0 |
KGC1#,QNC10 RED,R40 |
1 | ||
| 69218-B1020 |
KGC10 ﾌﾞﾗｯｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 69218-B1010W6 |
KGC1#,QNC10 WHITE PEARL.MC.,W16 |
1 | ||
| 69218-B1010X7 |
KGC1#,QNC10 BLACK M.M.,X07 |
1 | ||
| 69218-B1010W9 |
KGC1#,QNC10 WHITE,W09 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-B1010T7 |
KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17 |
1 | ||
| 69211-B1010R0 |
KGC1#,QNC10 RED,R40 |
1 | ||
| 69211-B1010S8 |
KGC1#,QNC10 SILVER ME.,S28 |
1 | ||
| 69211-B1020 |
KGC10 塗装不要 材料着色 黒色,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 69211-B1010B2 |
KGC1#,QNC10 DK.BLUE M.M.,B42 |
1 | ||
| 69211-B1010B7 |
KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 69211-B1010W9 |
KGC1#,QNC10 WHITE,W09 |
1 | ||
| 69211-B1010R3 |
KGC1#,QNC10..G,X MD CORAL ME.,R43 |
1 | ||
| 69211-B1010G0 |
KGC1#,QNC10..G,X LIME GREEN ME.,G40 |
1 | ||
| 69211-B1010W6 |
KGC1#,QNC10 WHITE PEARL.MC.,W16 |
1 | ||
| 69211-B1010X7 |
KGC1#,QNC10 BLACK M.M.,X07 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-B1010 |
KGC1#,QNC10 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69241-B1010 |
KGC1#,QNC10 |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-B1010 |
KGC1#,QNC10 |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-B1010 |
KGC1#,QNC10 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-B1010 |
KGC1#,QNC10 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-B1010 |
KGC1#,QNC10 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-B1010 |
KGC1#,QNC10 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-B1010 |
KGC1#,QNC10 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-B2030 |
KGC1#,QNC10 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-B1010 |
KGC1#,QNC10 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-B1010 |
KGC1#,QNC10 ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
KGC1#,QNC10 |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-B1010 |
KGC1#,QNC10 ﾄﾞｱﾛﾂｸ |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-B1010 |
KGC1#,QNC10 ﾄﾞｱﾛﾂｸ |
1 | ||
| Common parts | ||||
| 90041-49114 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90164-50032 | ||||
| 90166-50003 | ||||
| 90189-05003 | ||||
| 90541-04027 | ||||
| 91651-G0616 | ||||
