KGC10-AHSAK (2004)
Toyota Passo

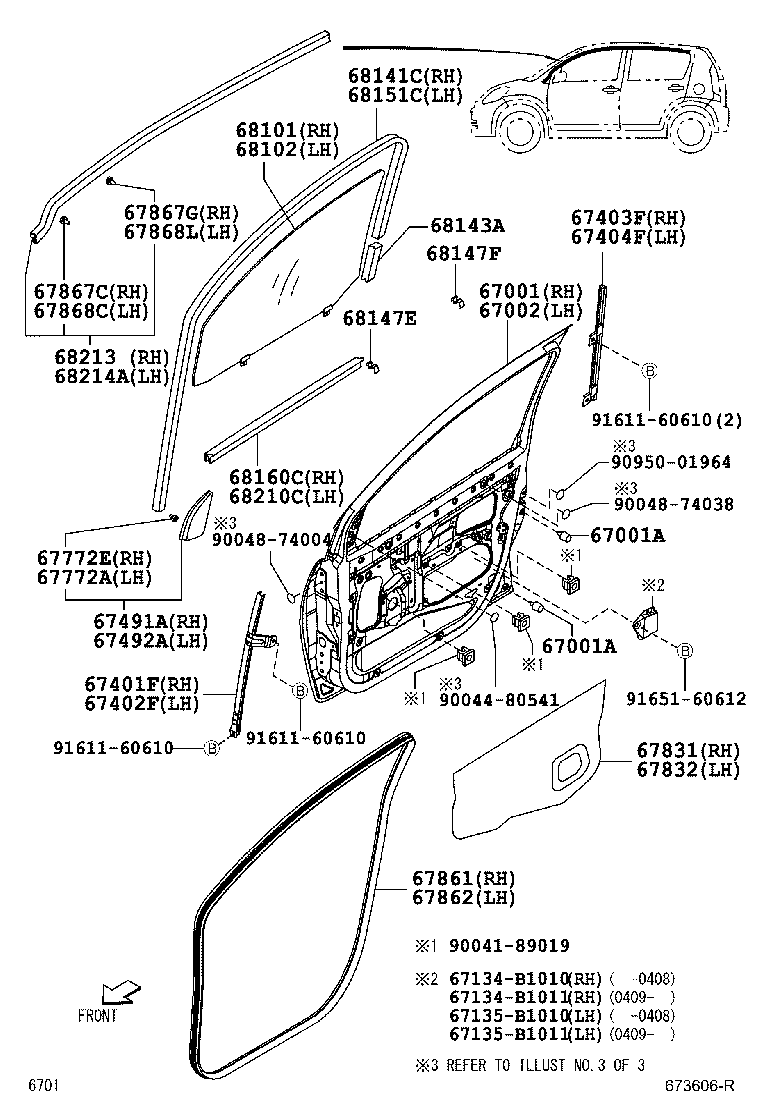

ILLUST NO. 1 OF 3(0405-0612)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-B1010 |
KGC1#,QNC10 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
KGC1#,QNC10 |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
KGC1#,QNC10 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-B1010 |
KGC1#,QNC10 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-B1010 |
KGC1#,QNC10 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-B1010 |
KGC1#,QNC10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-B1010 |
KGC1#,QNC10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-B1010 |
KGC1#,QNC10 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-B1010 |
KGC1#,QNC10 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-B1010 |
KGC1#,QNC10 |
1 | ||
| 67772A - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-87101 |
KGC1#,QNC10 |
1 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-87101 |
KGC1#,QNC10 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-B1010 |
KGC1#,QNC10 |
1 | ||
| 67831-B1011 |
KGC1#,QNC10 |
1 | ||
| 67831-B1012 |
KGC1#,QNC10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-B1011 |
KGC1#,QNC10 |
1 | ||
| 67831-B1012 |
KGC1#,QNC10 |
1 | ||
| 67831-B1010 |
KGC1#,QNC10 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-B1010 |
KGC1#,QNC10 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-B1010 |
KGC1#,QNC10 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-B1010 |
KGC1#,QNC10 |
15 | ||
| 67867-B1040 |
KGC1#,QNC10 |
15 | ||
| 67867-B1020 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-B2070 |
KGC1#,QNC10 寒冷地仕様 |
15 | ||
| 67867-B1020 |
KGC1#,QNC10 |
1 | ||
| 67867-B1040 |
KGC1#,QNC10 寒冷地仕様 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-B1040 |
KGC1#,QNC10 寒冷地仕様 |
15 | ||
| 67867-B1040 |
KGC1#,QNC10 |
15 | ||
| 67868-97201 |
KGC1#,QNC10 |
15 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-B1020 |
KGC1#,QNC10 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-B1010 |
KGC1#,QNC10 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-B1010 |
KGC1#,QNC10 *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-B1010 |
KGC1#,QNC10 |
1 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-B1010 |
KGC1#,QNC10 |
2 | ||
| 68147E - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-B1010 |
KGC1#,QNC10 |
2 | ||
| 68147F - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-B1020 |
KGC1#,QNC10 |
4 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-B1010 |
KGC1#,QNC10 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-B1010 |
KGC1#,QNC10 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-B1010 |
KGC1#,QNC10 |
1 | ||
| 68213 - WEATHERSTRIP, FRONT DOOR WINDOW, OUTER RH | ||||
| 68213-B1010 |
KGC1#,QNC10 |
1 | ||
| 68213-B1021 |
KGC1#,QNC10 |
1 | ||
| 68213-B1020 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 68214A - WEATHERSTRIP, FRONT DOOR WINDOW, OUTER LH | ||||
| 68214-B1010 |
KGC1#,QNC10 |
1 | ||
| 68214-B1020 |
KGC1#,QNC10 寒冷地仕様 |
1 | ||
| 68214-B1021 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 67134-B1010 | ||||
| 67134-B1011 | ||||
| 67135-B1010 | ||||
| 67135-B1011 | ||||
| 90041-89019 | ||||
| 90044-80541 | ||||
| 90048-74004 | ||||
| 90048-74038 | ||||
| 90950-01964 | ||||
| 91611-60610 | ||||
| 91651-60612 | ||||

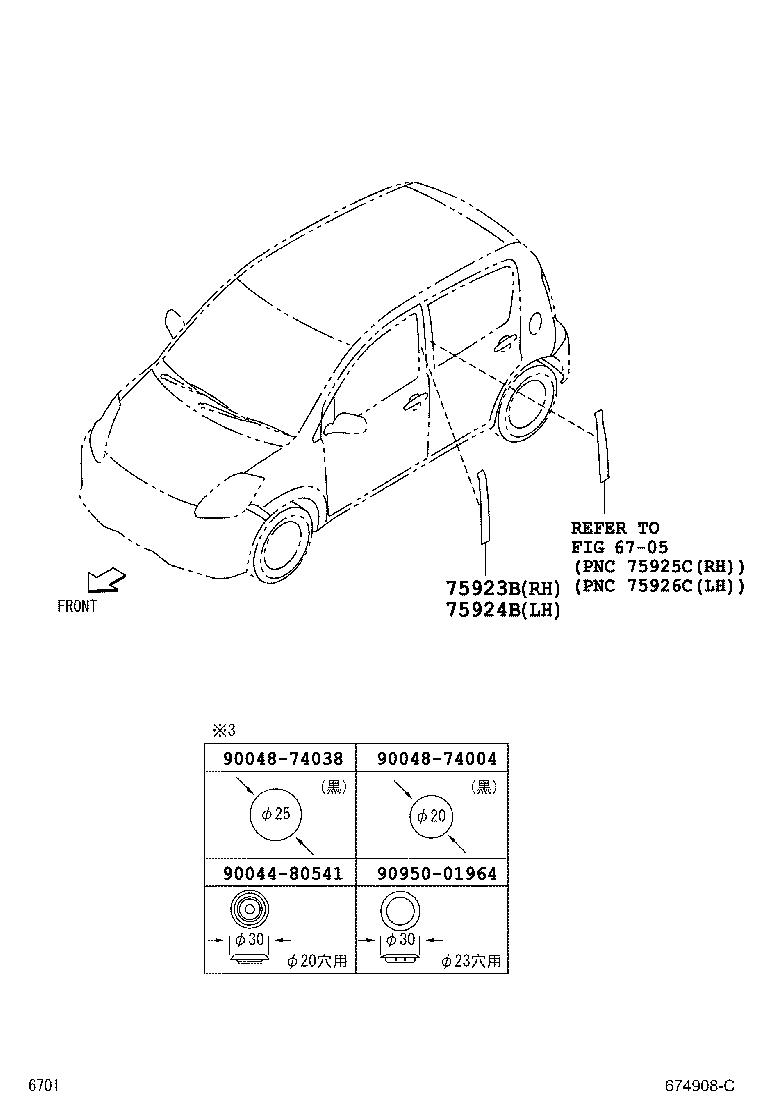

ILLUST NO. 3 OF 3(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-B1010 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 75923-B1010 |
KGC1#,QNC10 |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-B1010 |
KGC10 ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−V ﾊﾟｯｸ |
1 | ||
| 75924-B1010 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 90044-80541 | ||||
| 90048-74004 | ||||
| 90048-74038 | ||||
| 90950-01964 | ||||
| Linked diagrams | ||||
| 6705 | ||||

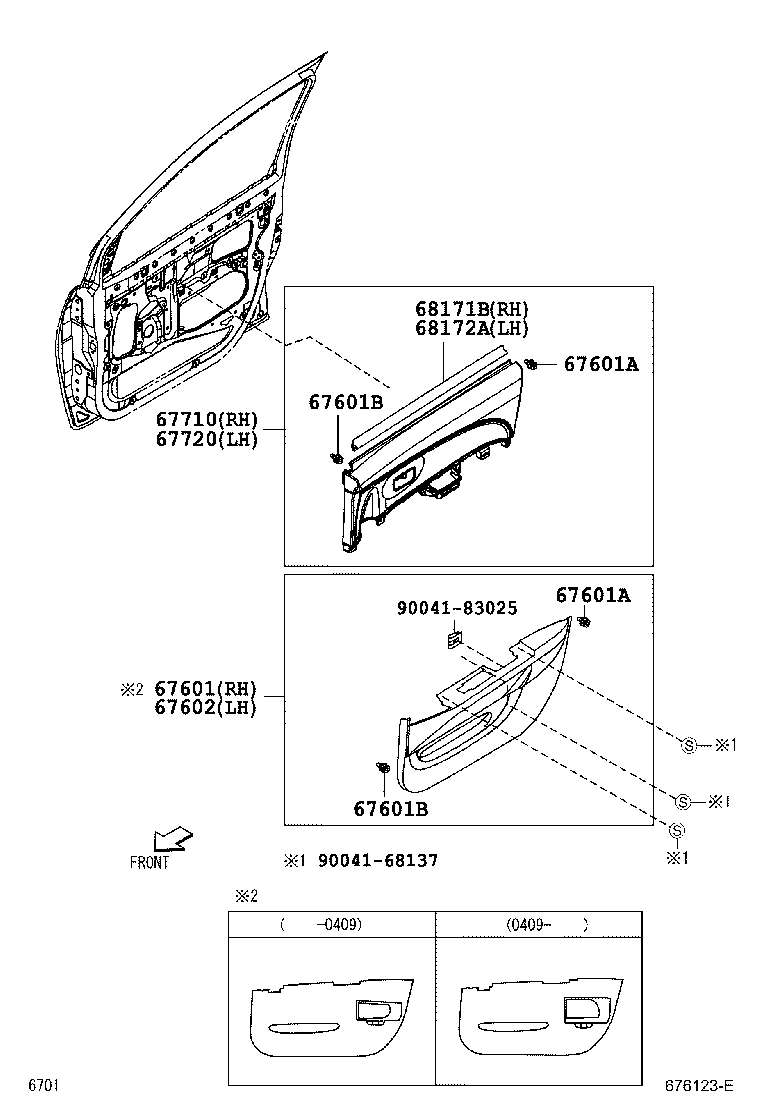

ILLUST NO. 2 OF 3(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67060-B1040E0 |
KGC1#,QNC10 -,TRIM1# |
1 | ||
| 67060-B1020E0 |
KGC1#,QNC10 RT32,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-B2010 |
KGC1#,QNC10 |
6 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-B2010 |
KGC1#,QNC10 |
6 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
KGC1#,QNC10 |
8 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
KGC1#,QNC10 |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67070-B1010S1 |
KGC1#,QNC10 GREIGE,TRIM1# |
1 | ||
| 67070-B1020E0 |
KGC1#,QNC10 -,TRIM1# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-B1010 |
KGC1#,QNC10 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-B1010 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 90041-68137 | ||||
| 90041-83025 | ||||
