Toyota Passo KGC10 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
JP
PASSO
KGC10-AHSAK (2004)
6402 - ROOF HEADLINING & SILENCER PAD

KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006

Engine 1KRFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0405-1002)

Click highlighted areas on diagram

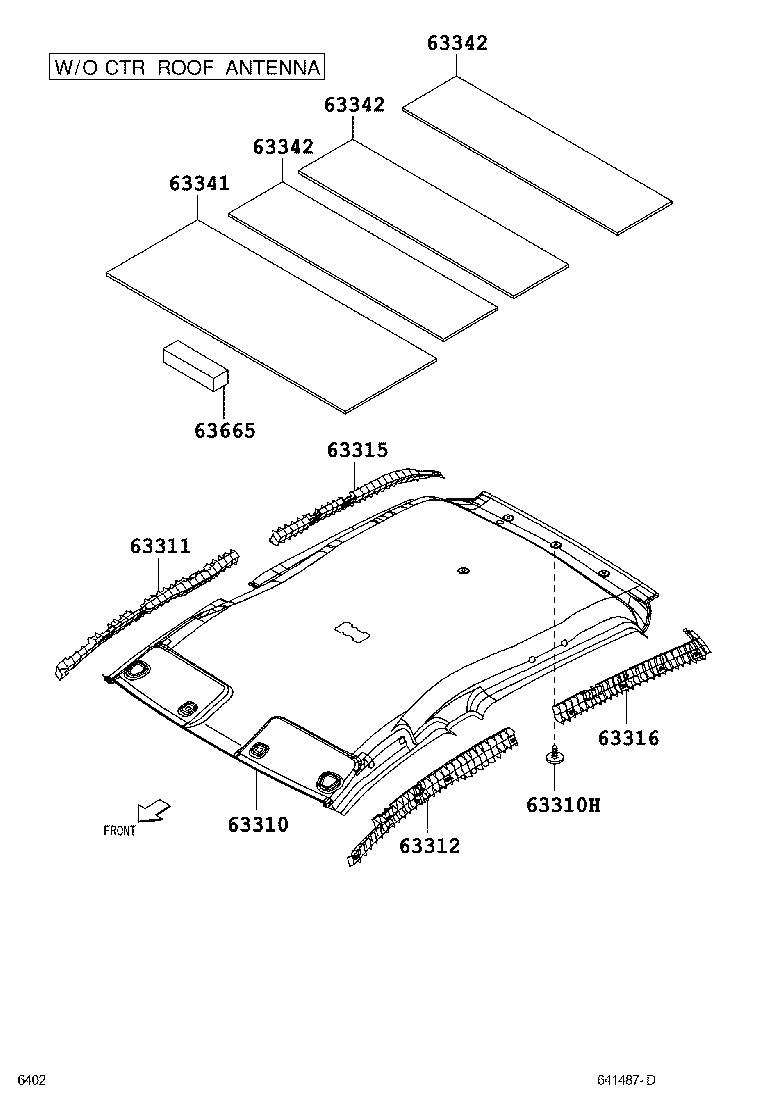

W/O CTR ROOF ANTENNA

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-B1050S1	KGC1#,QNC10 -,TRIM1#	05/2004 - 12/2006	1
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B0	KGC1#,QNC10 LT.GRAY,TRIM1#	05/2004 - 12/2006	4
63311 - GARNISH, ROOF HEADLINING, FRONT RH
63691-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63312 - GARNISH, ROOF HEADLINING, FRONT LH
63692-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63315 - GARNISH, ROOF HEADLINING, REAR RH
63693-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63316 - GARNISH, ROOF HEADLINING, REAR LH
63694-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63341 - PAD, ROOF SILENCER, NO.1
63341-87107	KGC1#,QNC10	05/2004 - 12/2006	1
63342 - PAD, ROOF SILENCER, NO.2
63342-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	3
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ	05/2005 - 12/2006	2
63342-B1010	KGC10 四国限定車 *(S)	10/2006 - 12/2006	2
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−T−ｾｰﾌﾃｨﾊﾟｯｸ	05/2006 - 12/2006	2
63342 - PAD, ROOF SILENCER, NO.2
63342-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	3
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ	05/2005 - 12/2006	2
63342-B1010	KGC10 四国限定車 *(S)	10/2006 - 12/2006	2
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−T−ｾｰﾌﾃｨﾊﾟｯｸ	05/2006 - 12/2006	2
63342 - PAD, ROOF SILENCER, NO.2
63342-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	3
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ	05/2005 - 12/2006	2
63342-B1010	KGC10 四国限定車 *(S)	10/2006 - 12/2006	2
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−T−ｾｰﾌﾃｨﾊﾟｯｸ	05/2006 - 12/2006	2
63665 - SPACER, ROOF HEADLINING
63665-B1040	KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1	05/2006 - 12/2006	3
63665-B1010	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1

(0405-1002)

Click highlighted areas on diagram

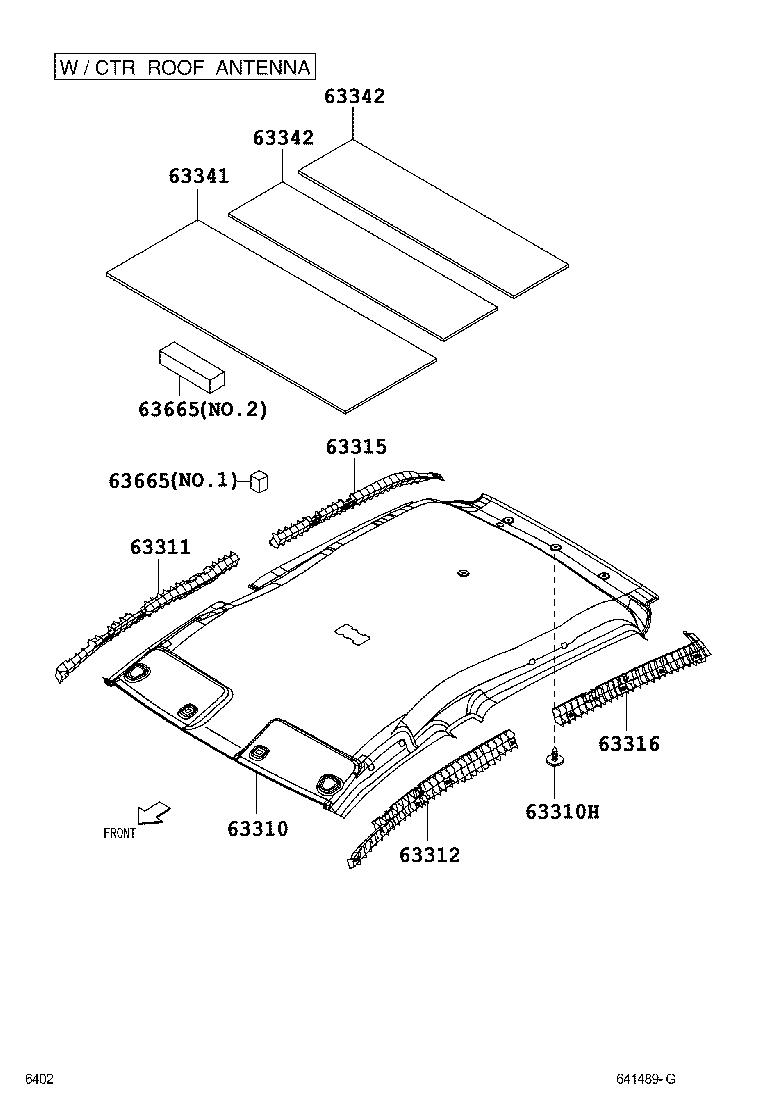

W/CTR ROOF ANTENNA

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-B1050S1	KGC1#,QNC10 -,TRIM1#	05/2004 - 12/2006	1
63310H - CLIP(FOR ROOF HEADLINING)
90044-67467B0	KGC1#,QNC10 LT.GRAY,TRIM1#	05/2004 - 12/2006	4
63311 - GARNISH, ROOF HEADLINING, FRONT RH
63691-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63312 - GARNISH, ROOF HEADLINING, FRONT LH
63692-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63315 - GARNISH, ROOF HEADLINING, REAR RH
63693-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63316 - GARNISH, ROOF HEADLINING, REAR LH
63694-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
63341 - PAD, ROOF SILENCER, NO.1
63341-87107	KGC1#,QNC10	05/2004 - 12/2006	1
63342 - PAD, ROOF SILENCER, NO.2
63342-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	3
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ	05/2005 - 12/2006	2
63342-B1010	KGC10 四国限定車 *(S)	10/2006 - 12/2006	2
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−T−ｾｰﾌﾃｨﾊﾟｯｸ	05/2006 - 12/2006	2
63342 - PAD, ROOF SILENCER, NO.2
63342-B1010	KGC1#,QNC10..G,X	05/2004 - 12/2006	3
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ	05/2005 - 12/2006	2
63342-B1010	KGC10 四国限定車 *(S)	10/2006 - 12/2006	2
63342-B1010	KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−T−ｾｰﾌﾃｨﾊﾟｯｸ	05/2006 - 12/2006	2
63665 - SPACER, ROOF HEADLINING
63665-B1040	KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1	05/2006 - 12/2006	3
63665-B1010	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1
63665 - SPACER, ROOF HEADLINING
63665-B1040	KGC1#,QNC10 SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1	05/2006 - 12/2006	3
63665-B1010	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1

KGC10-AHSAK (2004)

(0405-1002)

(0405-1002)
