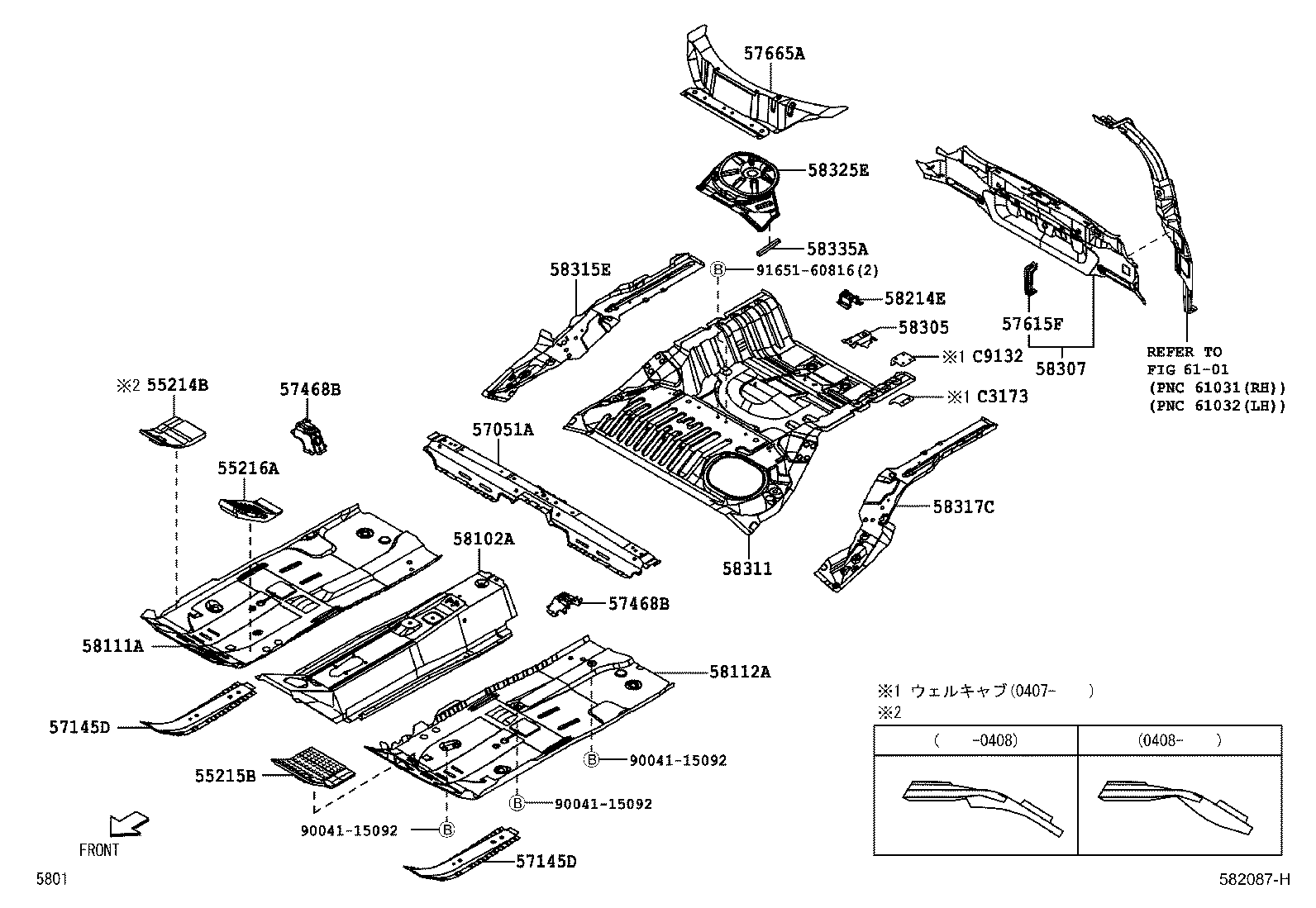

Toyota Passo KGC10 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
55214B - PAD, DASH PANEL INSULATOR, NO.2
55214-B1010	KGC1#,QNC10 品番刻印有り	05/2004 - 08/2004	1
55214-B1011	KGC1#,QNC10 品番刻印有り	08/2004 - 12/2006	1
55215B - PAD, DASH PANEL INSULATOR, NO.3
55215-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55216A - PAD, DASH PANEL INSULATOR, NO.4
55216-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
57145D - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57145-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
57145D - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57145-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
57468B - BRACKET, FRONT SEAT, REAR
57468-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
57468B - BRACKET, FRONT SEAT, REAR
57468-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
57615F - BRACKET, REAR BUMPER MOUNTING
57615-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57665-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-B1010	KGC10,QNC10	05/2004 - 12/2006	1
58111A - PAN, FRONT FLOOR, RH
58111-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58112A - PANEL, FRONT FLOOR, LH
58112-B1020	KGC1#,QNC10	05/2004 - 12/2006	1
58214E - BRACKET, JACK SUPPORT
58214-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58311 - PAN, REAR FLOOR
58311-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-B1010	KGC1#,QNC10	05/2004 - 12/2006	4
C3173 - PLATE, REAR FLOOR SIDE, REAR LH
C3173-B1010	KGC1#,QNC10..G,X 特殊用途ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ	07/2004 - 12/2006	1
C9132 - PLATE, CHAIR LIFT HOLD
C9132-B1010	KGC1#,QNC10..G,X 特殊用途ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞB ｼｰﾄｸﾚｰﾝ	07/2004 - 12/2006	1
Common parts
90041-15092
91651-60816
Linked diagrams
6101

Part #	Description	Period	Qty	Price
Common parts
55129-B1010
55129-B1020
55139-B1010
55139-B1020
55358-B1010
58137-B2010
64759-B1010
90048-71116
90048-71292
90048-74038
90950-01919

KGC10-AHSAK (2004)

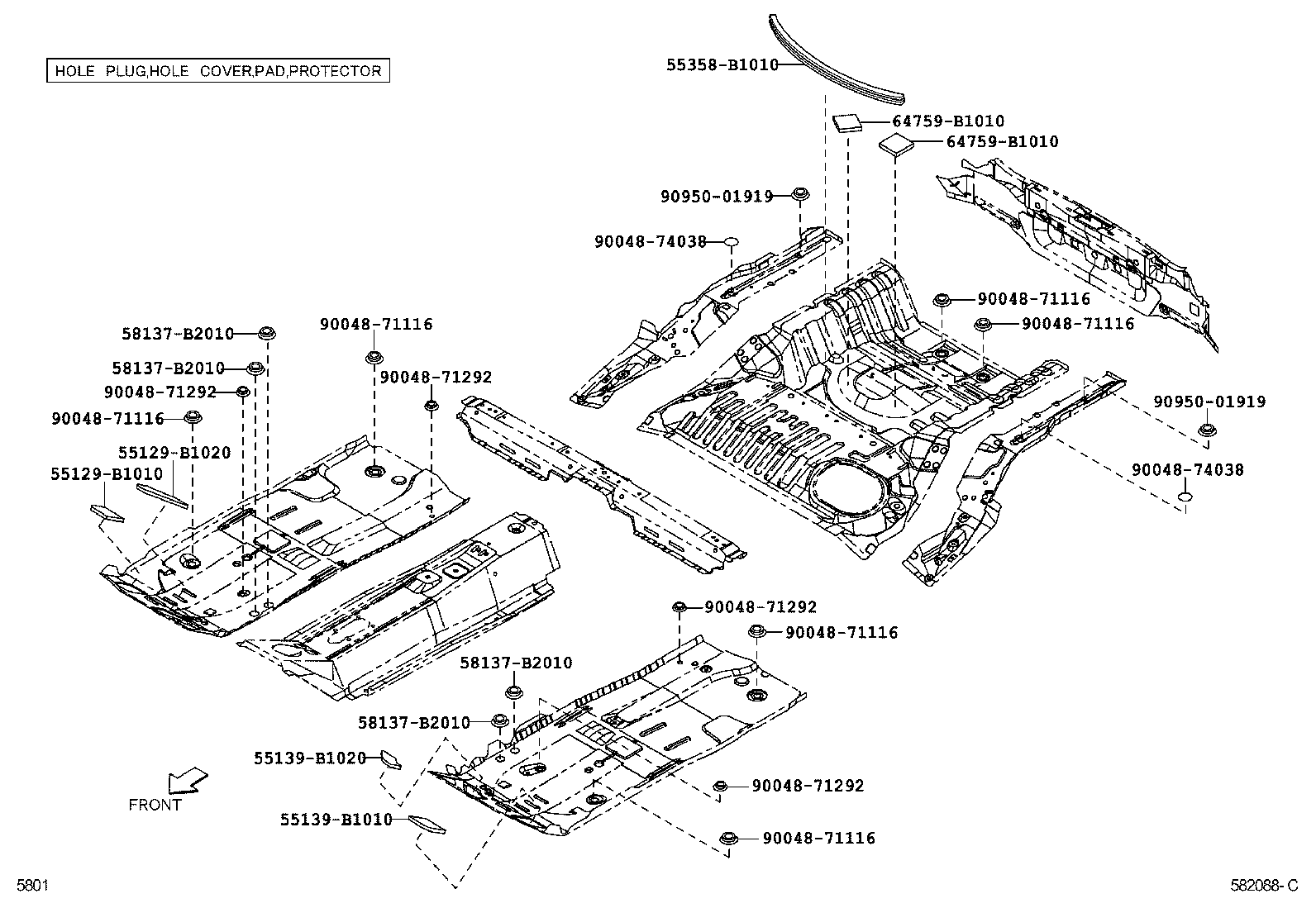

ILLUST NO. 1 OF 2(0405-1002)

ILLUST NO. 2 OF 2(0405-1002)
