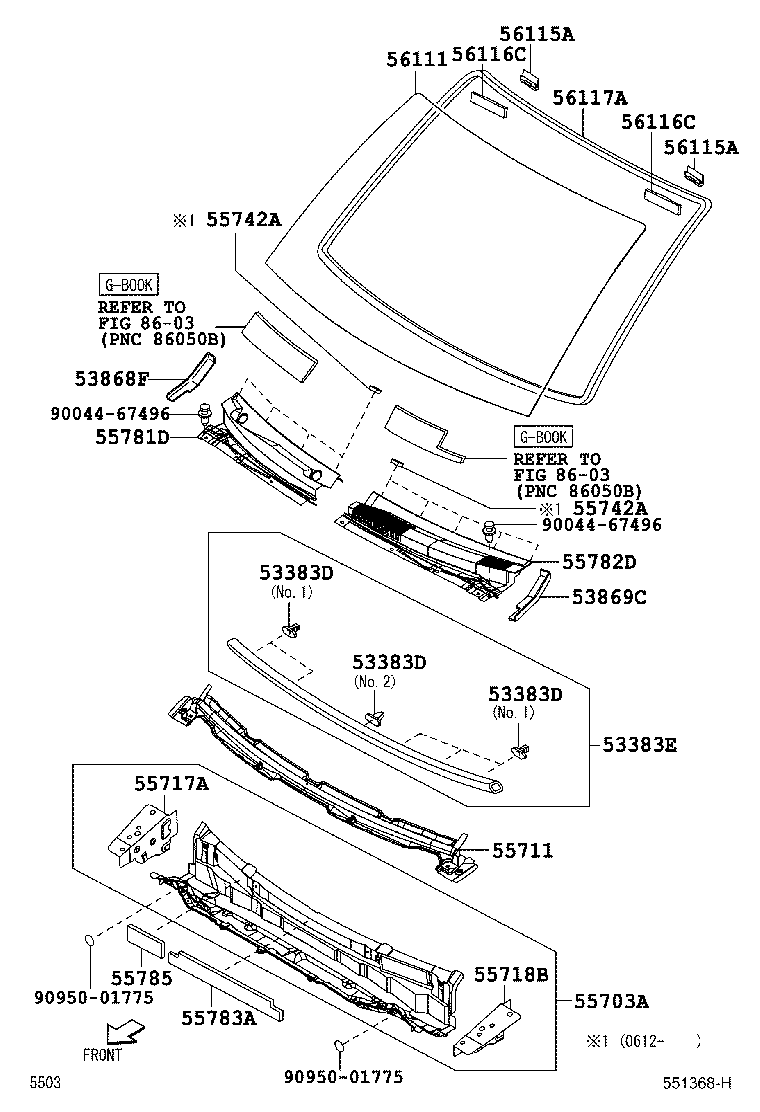

Toyota Passo KGC10 COWL PANEL & WINDSHIELD GLASS

Part #	Description	Period	Qty
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
90044-67533	KGC1#,QNC10 NO.1	05/2004 - 12/2006	5
90044-67534	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
90044-67533	KGC1#,QNC10 NO.1	05/2004 - 12/2006	5
90044-67534	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
90044-67533	KGC1#,QNC10 NO.1	05/2004 - 12/2006	5
90044-67534	KGC1#,QNC10 NO.2	05/2004 - 12/2006	1
53383E - WEATHERSTRIP, HOOD TO COWL TOP
53383-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
53868F - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
53869C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53869-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-B1020	KGC1#,QNC10	02/2006 - 12/2006	1
55703-B1010	KGC1#,QNC10	05/2004 - 02/2006	1
55711 - PANEL, COWL TOP, OUTER
55711-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55782-B1030	KGC1#,QNC10 寒冷地仕様	05/2004 - 12/2006	1
55783A - PAD, COWL TOP SILENCER
55783-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
55785 - PAD, COWL OUTER PANEL, NO.2
55785-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
56111 - GLASS, WINDSHIELD
56101-B1010	KGC1#,QNC10 *EHTL,T=4.7,ｸﾞﾘｰﾝ	05/2004 - 12/2006	1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402	KGC1#,QNC10 NO.2	05/2004 - 12/2006	2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402	KGC1#,QNC10 NO.2	05/2004 - 12/2006	2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401	KGC1#,QNC10	05/2004 - 12/2006	2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401	KGC1#,QNC10	05/2004 - 12/2006	2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-B1010	KGC1#,QNC10 長さ=3912	05/2004 - 12/2006	1
Common parts
90044-67496
90950-01775
Linked diagrams
8603

KGC10-AHSAK (2004)

(0405-1002)
