KGC10-AHSAK (2004)
Toyota Passo
(0405-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-B1030B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-B1010S1 |
KGC1#,QNC10 -,TRIM1# |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-B1020C0 |
KGC1#,QNC10 BLACK,TRIM1# |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-B1020C0 |
KGC1#,QNC10 BLACK,TRIM1# |
2 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-B1010C0 |
KGC1#,QNC10 BLACK,TRIM1# |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-B1010C0 |
KGC1#,QNC10 BLACK,TRIM1# |
1 | ||
| 55064A - REGISTER SUB-ASSY, INSTRUMENT, NO.4 | ||||
| 55064-B1010C0 |
KGC1#,QNC10 BLACK,TRIM1# |
1 | ||
| 55064A - REGISTER SUB-ASSY, INSTRUMENT, NO.4 | ||||
| 55064-B1010C0 |
KGC1#,QNC10 BLACK,TRIM1# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-B1010B0 |
KGC1#,QNC10..G,X DK.GRAY,TRIM1# |
1 | ||
| 55301C - GROMMET(FOR INSTRUMENT PANEL) | ||||
| 58959-B1010 |
KGC1#,QNC10 |
3 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55341-B1010 |
KGC1#,QNC10 |
2 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55341-B1010 |
KGC1#,QNC10 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-B1010 |
KGC1#,QNC10 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-B1010 |
KGC1#,QNC10 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-B1010 |
KGC1#,QNC10 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-B1010 |
KGC1#,QNC10 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-B1010 |
KGC1#,QNC10 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-B2010 |
KGC1#,QNC10 |
4 | ||
| 55394-B1010 |
KGC1#,QNC10 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-B2010 |
KGC1#,QNC10 |
4 | ||
| 55394-B1010 |
KGC1#,QNC10 |
4 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-B1010S2 |
KGC1#,QNC10..G,X CHAMPAGNE,TRIM10 |
1 | ||
| 55404-B1010S1 |
KGC1#,QNC10..G,X SILVER,TRIM10 |
1 | ||
| 55404-B1010S2 |
KGC1#,QNC10..G,X CHAMPAGNE,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-B1010B0 |
KGC1#,QNC10..G,X SILVER,TRIM10 |
1 | ||
| 55405-B1020C0 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,BLACK,TRIM1# |
1 | ||
| 55405-B1010C0 |
KGC1#,QNC10..G,X BLACK,TRIM1# |
1 | ||
| 55405-B1010C0 |
KGC1#,QNC10..G,X BLACK,TRIM10 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-B1010B0 |
KGC1#,QNC10..G,X SILVER,TRIM10 |
1 | ||
| 55405-B1020C0 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ,BLACK,TRIM1# |
1 | ||
| 55405-B1010C0 |
KGC1#,QNC10..G,X BLACK,TRIM1# |
1 | ||
| 55405-B1010C0 |
KGC1#,QNC10..G,X BLACK,TRIM10 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-B1100B0 |
KGC1#,QNC10..G,X TITAN,TRIM1# |
1 | ||
| 55406-B1010S1 |
KGC1#,QNC10..G,X -,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-B2020 |
KGC1#,QNC10 |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-B1010 |
KGC1#,QNC10 |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
KGC1#,QNC10 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| GAITO-NASHI |
KGC1#..X ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−2DIN ﾅﾋﾞ新汎用 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2010S2 |
KGC1#,QNC10..G,X ﾍｯﾄﾞ ﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ),DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-B2010S2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-B2010S2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-B2010S2 |
KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−HID ﾘﾐﾃｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55539-B2010S2 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
2 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010B1 |
KGC10 ｱｳﾀｰ ﾐﾗｰ−ﾀﾙﾎﾞ(材着),DK.GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-B1010C0 |
KGC1#,QNC10 BLACK |
1 | ||
| 55625D - TRAY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55625-B1010E0 |
KGC1#,QNC10 -,TRIM1# |
1 | ||
| 55633B - SUPPORT, INSTRUMENT PANEL CUP HOLDER | ||||
| 55633-B1010E0 |
KGC1#,QNC10 GRAIGE,TRIM1# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55642-B1010 |
KGC1#,QNC10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-B1010C0 |
KGC1#,QNC10 BLACK,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-B1010C0 |
KGC1#,QNC10 BLACK,TRIM1# |
2 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-B2010 |
KGC1#,QNC10..G,X |
2 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-B2010 |
KGC1#,QNC10..G,X |
2 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-B2010 |
KGC1#,QNC10..G,X |
2 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-B2010 |
KGC1#,QNC10..G,X |
2 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-B1020B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 86269G - GRILLE, SPEAKER, RH | ||||
| 86269-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 86279B - GRILLE, SPEAKER, LH | ||||
| 86279-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-20058 | ||||
| 90041-20137 | ||||
| 90041-83025 | ||||
| 90044-67417C0 | ||||
| 90159-60546 | ||||
| 90467-10201 | ||||
| 91631-60616 | ||||
| 91631-60622 | ||||
| 91631-G0614 | ||||
| 93567-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||

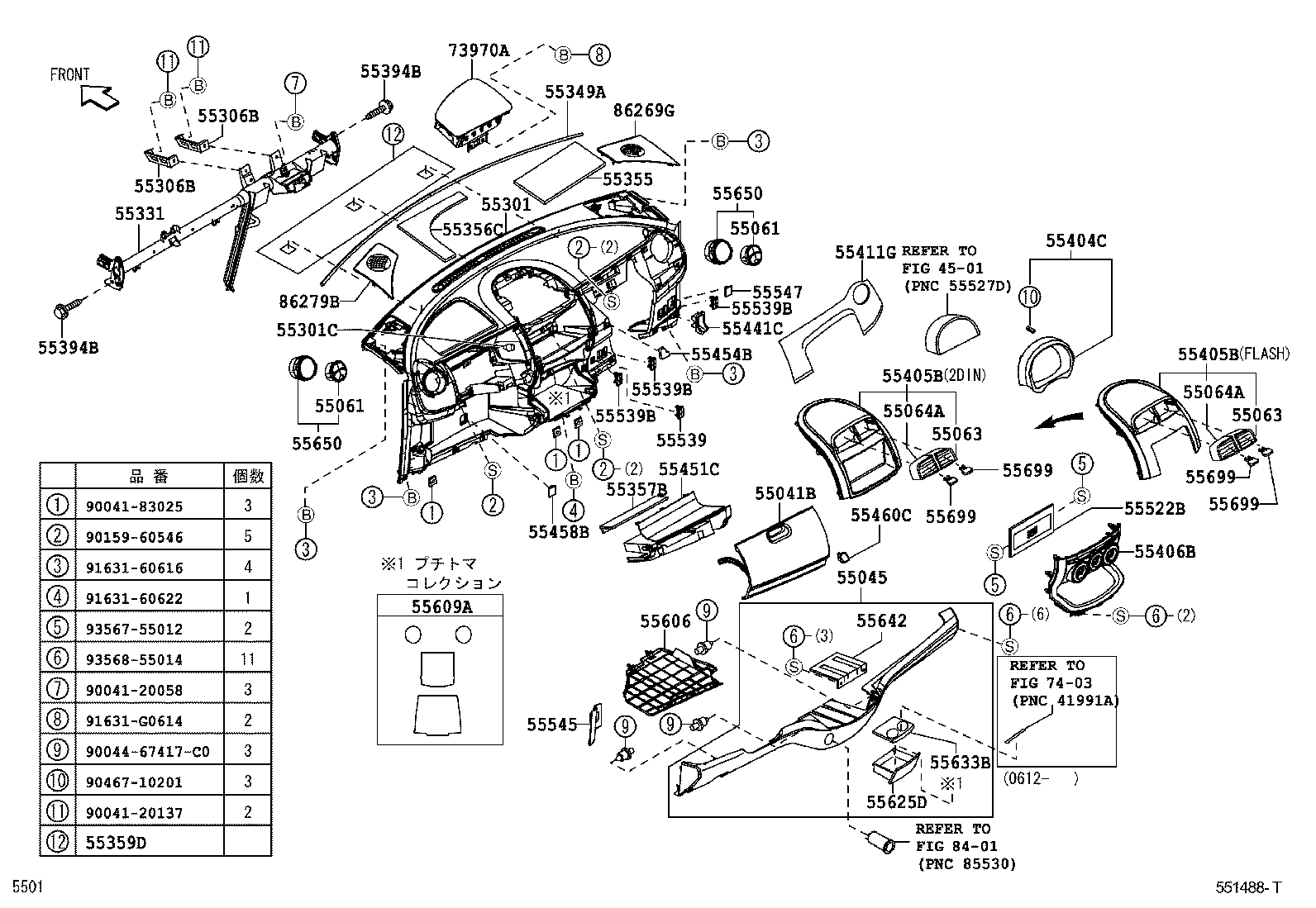

| 4501 | ||||
| 7403 | ||||
| 8401 | ||||
