KGC10-AHSAK (2004)
Toyota Passo
Production
May 2004
-
Dec 2006
Engine
1KRFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0405-1002)

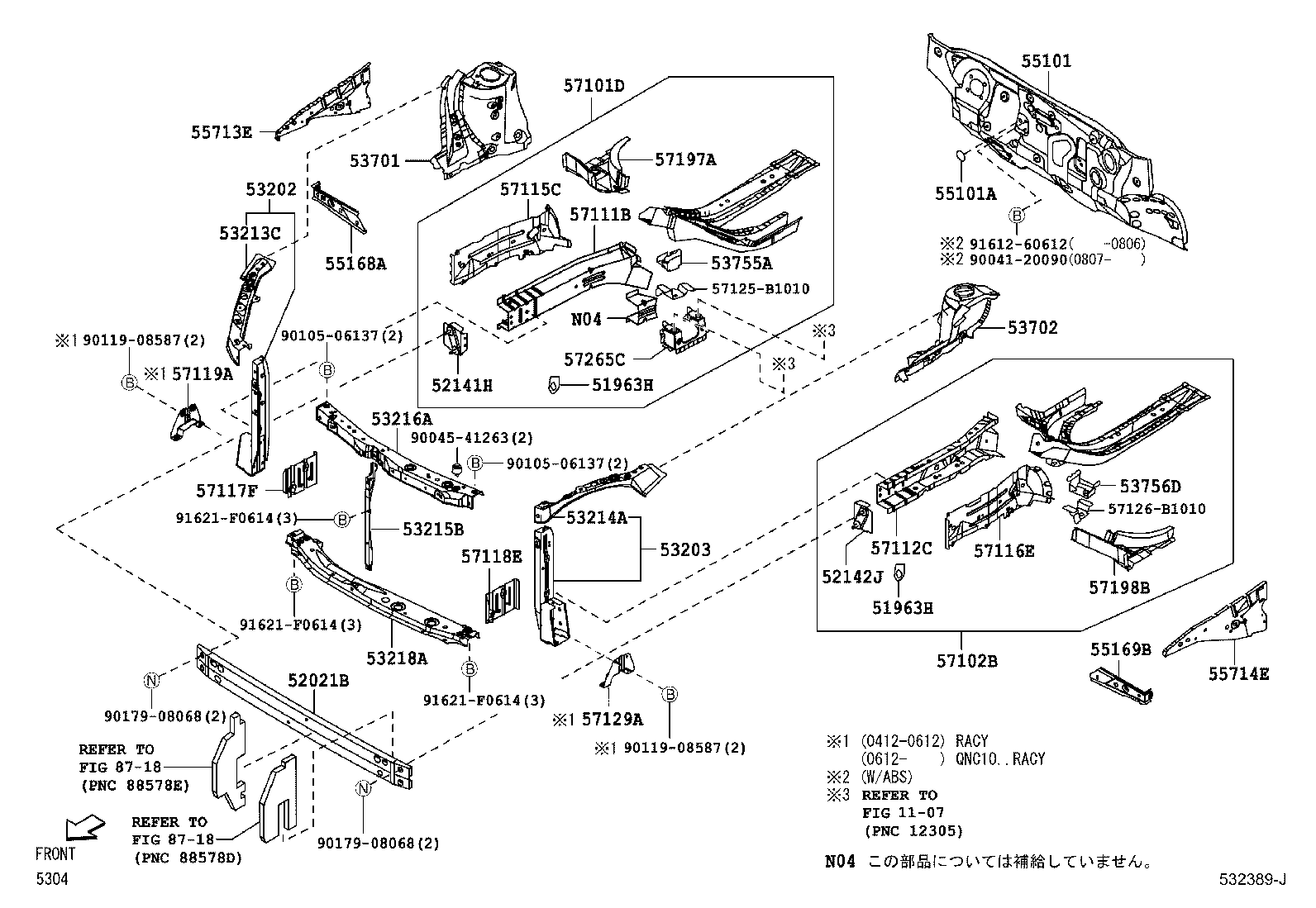

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963H - HOOK, TRANSPORT W/REINFORCEMENT | ||||
| 51963-B1010 |
KGC1#,QNC10 左側,右側 |
1 | ||
| 51963H - HOOK, TRANSPORT W/REINFORCEMENT | ||||
| 51963-B1010 |
KGC1#,QNC10 左側,右側 |
1 | ||
| 52021B - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-B1010 |
KGC1#,QNC10 |
1 | ||
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-B1010 |
KGC1#,QNC10 |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-B1010 |
KGC1#,QNC10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-B1010 |
KGC1#,QNC10 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-B1010 |
KGC1#,QNC10 |
1 | ||
| 53213C - SUPPORT, RADIATOR, UPPER FRONT | ||||
| 53213-B1010 |
KGC1#,QNC10 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-B1010 |
KGC1#,QNC10 |
1 | ||
| 53215B - SUPPORT, HOOD LOCK | ||||
| 53215-B1010 |
KGC1#,QNC10 |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-B1010 |
KGC1#,QNC10 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-B1021 |
KGC1#,QNC10 |
1 | ||
| 53218-B1020 |
KGC1#,QNC10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-B1020 |
KGC1#,QNC10 |
1 | ||
| 53701-B1021 |
KGC1#,QNC10 |
1 | ||
| 53701-B1010 |
KGC1#,QNC10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-B1021 |
KGC1#,QNC10 |
1 | ||
| 53702-B1020 |
KGC1#,QNC10 |
1 | ||
| 53702-B1010 |
KGC1#,QNC10 |
1 | ||
| 53755A - REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1 | ||||
| 53755-B1010 |
KGC1#,QNC10 |
1 | ||
| 53755-B1020 |
KGC1#,QNC10 |
1 | ||
| 53756D - BRACKET, BRAKE ACTUATOR MOUNTING | ||||
| 53756-B1010 |
KGC1#,QNC10 |
1 | ||
| 53756-B1020 |
KGC1#,QNC10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-B1010 |
KGC1#,QNC10 |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90048-71292 |
KGC1#,QNC10 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-B1010 |
KGC1#,QNC10 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-B1010 |
KGC1#,QNC10 |
1 | ||
| 55713E - PANEL, COWL TOP SIDE, RH | ||||
| 55713-B1010 |
KGC1#,QNC10 |
1 | ||
| 55714E - PANEL, COWL TOP SIDE, LH | ||||
| 55714-B1010 |
KGC1#,QNC10 |
1 | ||
| 57101D - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-B1021 |
KGC1#,QNC10 |
1 | ||
| 57101-B1020 |
KGC1#,QNC10 |
1 | ||
| 57101-B1010 |
KGC1#,QNC10 |
1 | ||
| 57102B - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-B1010 |
KGC1#,QNC10 |
1 | ||
| 57102-B1020 |
KGC1#,QNC10 |
1 | ||
| 57102-B1021 |
KGC1#,QNC10 |
1 | ||
| 57111B - MEMBER, FRONT SIDE, RH | ||||
| 57111-B1010 |
KGC1#,QNC10 |
1 | ||
| 57112C - MEMBER, FRONT SIDE, LH | ||||
| 57112-B1010 |
KGC1#,QNC10 |
1 | ||
| 57115C - PLATE, FRONT SIDE MEMBER, OUTER, RH | ||||
| 57115-B1010 |
KGC1#,QNC10 |
1 | ||
| 57116E - PLATE, FRONT SIDE MEMBER, OUTER, LH | ||||
| 57116-B1010 |
KGC1#,QNC10 |
1 | ||
| 57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57117-B1010 |
KGC1#,QNC10 |
1 | ||
| 57118E - PLATE, FRONT SIDE MEMBER, NO.2, LH | ||||
| 57118-B1010 |
KGC1#,QNC10 |
1 | ||
| 57197A - BOX, TORQUE, FRONT RH | ||||
| 57197-B1010 |
KGC1#,QNC10 |
1 | ||
| 57198B - BOX, TORQUE, FRONT, LH | ||||
| 57198-B1010 |
KGC1#,QNC10 |
1 | ||
| 57265C - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-B1010 |
KGC1#,QNC10 |
1 | ||
| Common parts | ||||
| 57125-B1010 | ||||
| 57126-B1010 | ||||
| 90041-20090 | ||||
| 90045-41263 | ||||
| 90105-06137 | ||||
| 90119-08587 | ||||
| 90179-08068 | ||||
| 91612-60612 | ||||
| 91621-F0614 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 8718 | ||||
