KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

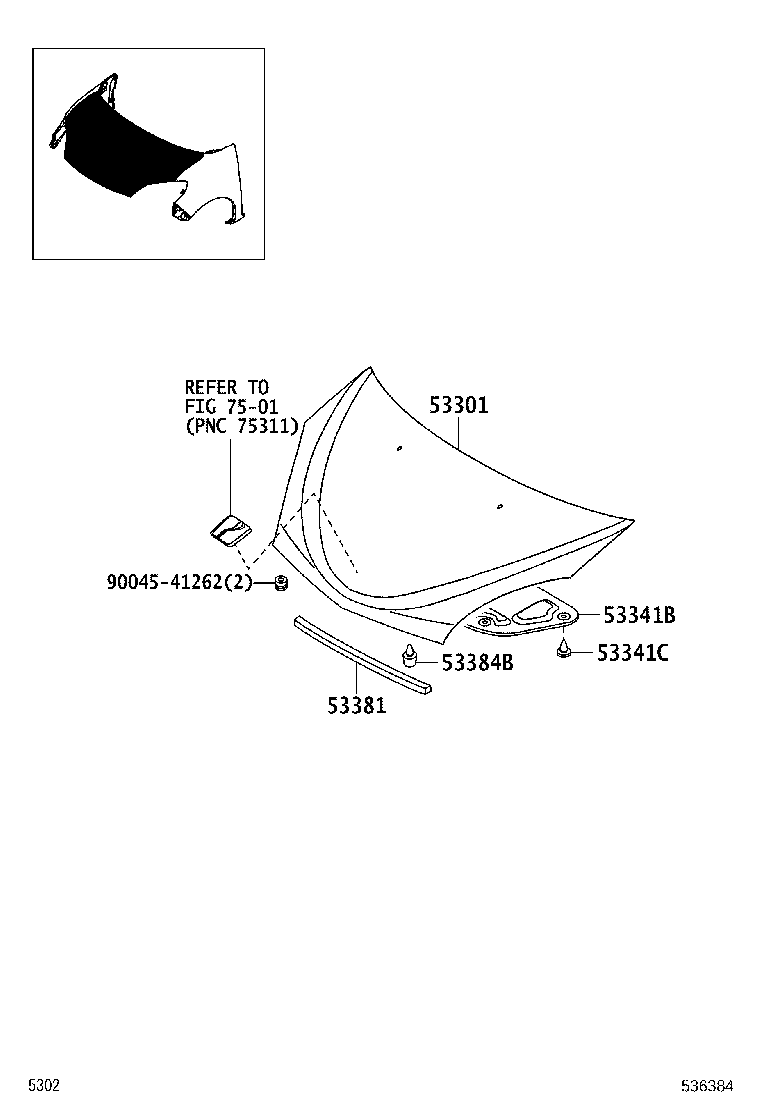

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53384B 7501 9004541262
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-B1010

KGC1#,QNC10

ｴﾝﾌﾞﾚﾑｱﾅｱﾘ

 1
53341B - INSULATOR, HOOD
53341-B1010

KGC1#,QNC10

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-68280

KGC1#,QNC10

 5
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-B1020

KGC1#,QNC10

寒冷地仕様

 1
53384B - CUSHION, HOOD, CENTER
53384-B1010

KGC1#,QNC10

 2
Common parts
90045-41262
Linked diagrams
7501

(0405-1002)

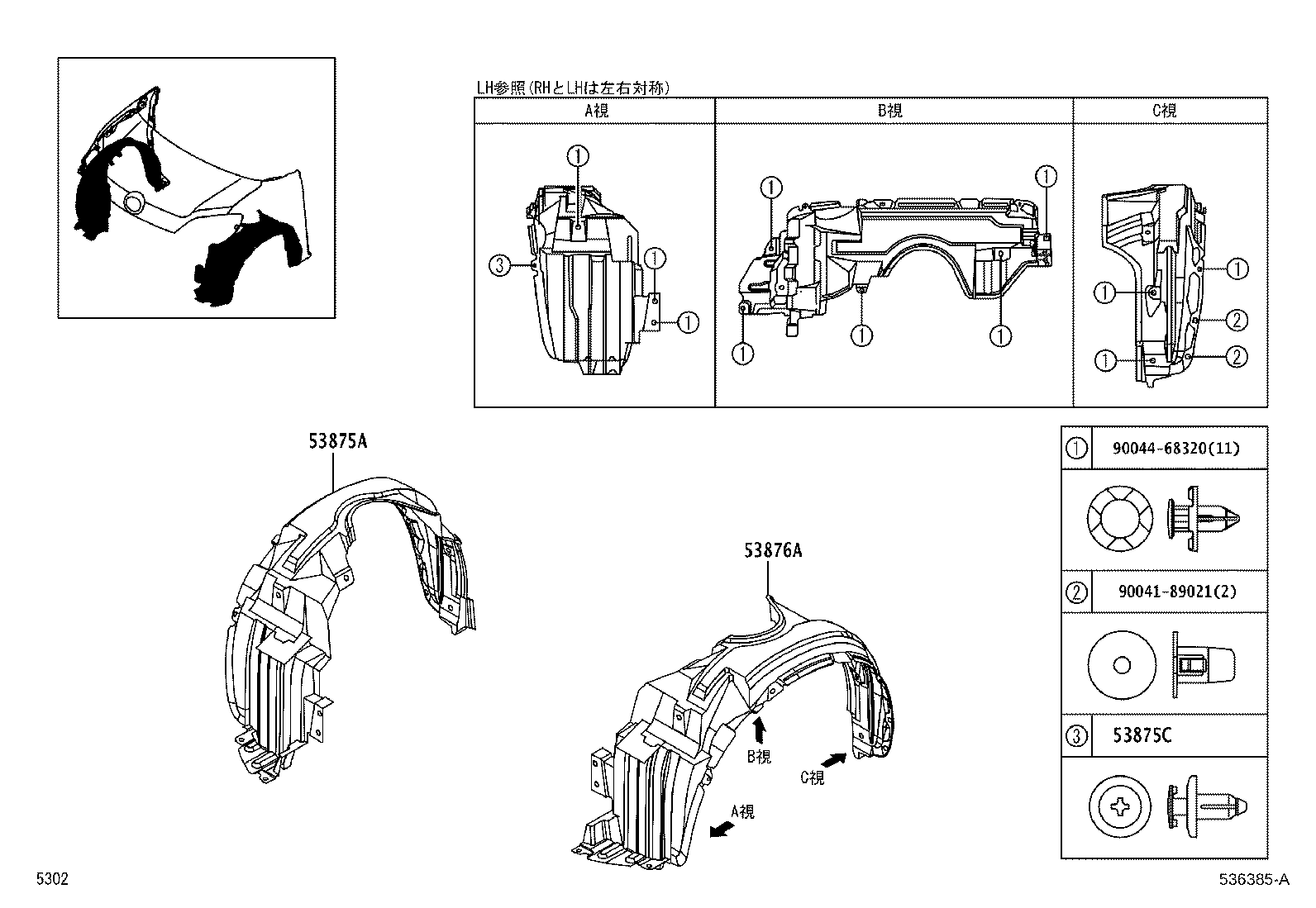

Click highlighted areas on diagram

diagram 53875A 53875C 53876A 9004189021 9004468320
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-B1010

KGC1#,QNC10..G,X

 1
53875C - CLIP, FRONT FENDER LINER
90467-06133F0

KGC1#,QNC10

BLACK MC.

 2
53876A - LINER, FRONT FENDER, LH
53876-B1010

KGC1#,QNC10..G,X

 1
Common parts
90041-89021
90044-68320

(0405-1002)

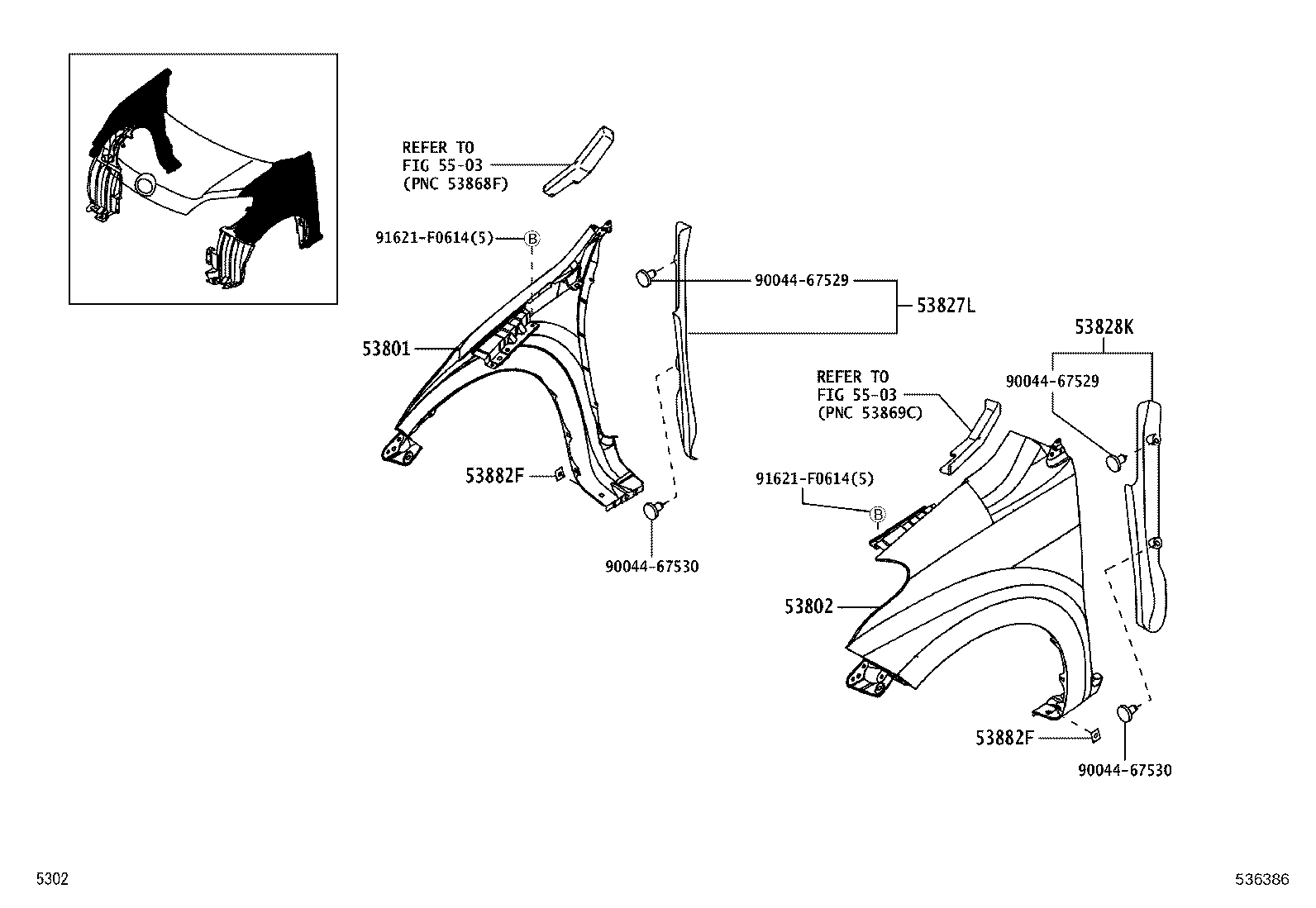

Click highlighted areas on diagram

diagram 53801 53802 53827L 53828K 53882F 53882F 5503 5503 9004467529 9004467529 9004467530 9004467530 91621F0614 91621F0614
Part # Description Qty Price
53801 - FENDER SUB-ASSY, FRONT RH
53811-B1010

KGC1#,QNC10..G,X

ｻｲﾄﾞﾀｰﾝ 穴有り

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-B1010

KGC1#,QNC10..G,X

ｻｲﾄﾞﾀｰﾝ 穴有り

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-B1010

KGC1#,QNC10

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-B1010

KGC1#,QNC10

 1
53882F - SEAL, FRONT FENDER
53882-87701

KGC1#,QNC10

 2
53882-87701

KGC1#,QNC10

 4
53882F - SEAL, FRONT FENDER
53882-87701

KGC1#,QNC10

 2
53882-87701

KGC1#,QNC10

 4
Common parts
90044-67529
90044-67530
91621-F0614
Linked diagrams
5503
