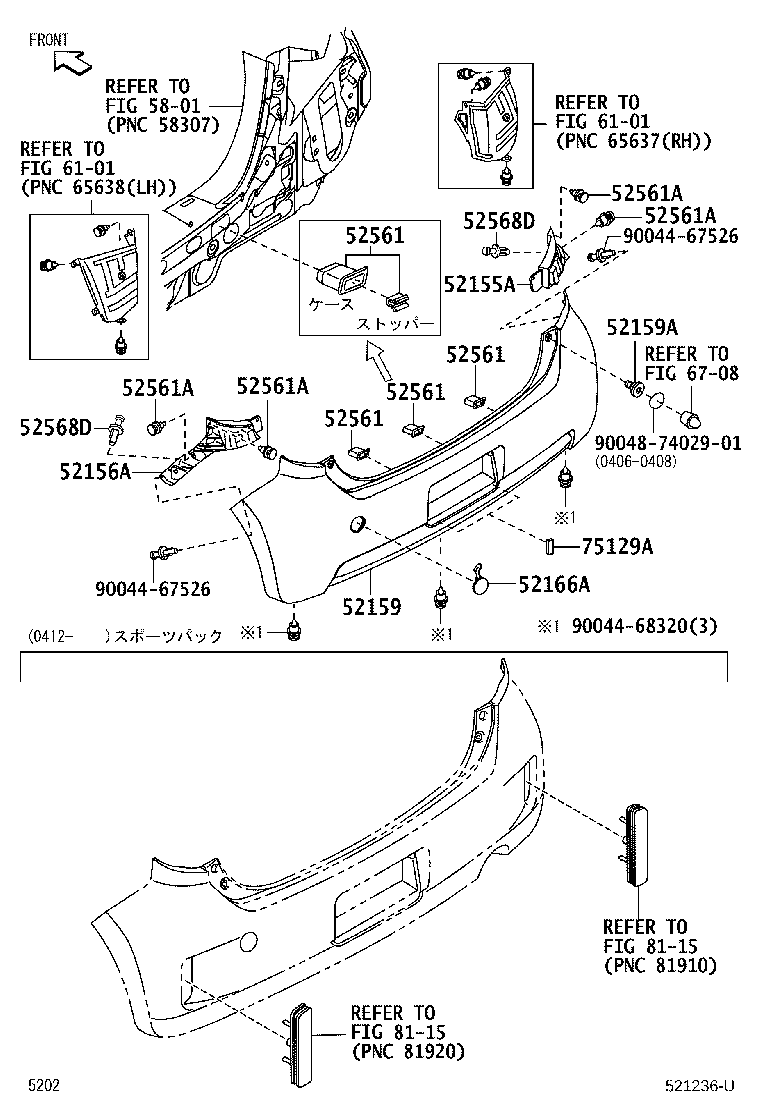

Toyota Passo KGC10 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
52159 - COVER, REAR BUMPER
52159-B1010S8	KGC1#,QNC10..G,X SILVER ME.,S28	05/2004 - 12/2006	1
52159-B1010B7	KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57	05/2004 - 12/2006	1
52159-B1010T7	KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17	05/2004 - 12/2006	1
52159-B1010X7	KGC1#,QNC10 BLACK M.M.,X07	05/2004 - 10/2004	1
52159-B1010B2	KGC1#,QNC10..G,X DK.BLUE M.M.,B42	05/2004 - 12/2006	1
52159-B1010X7	KGC1#,QNC10..G,X BLACK M.M.,X07	05/2005 - 12/2006	1
52159-B1010R0	KGC1#,QNC10..G,X RED,R40	05/2004 - 12/2006	1
52159-B1010R3	KGC1#,QNC10..G,X MD CORAL ME.,R43	05/2004 - 12/2006	1
52159-B1010W6	KGC1#,QNC10..G,X WHITE PEARL.MC.,W16	05/2004 - 12/2006	1
52159-B1010W9	KGC1#,QNC10..G,X WHITE,W09	05/2004 - 12/2006	1
52159-B1010G0	KGC1#,QNC10..G,X LIME GREEN ME.,G40	05/2004 - 12/2006	1
52159A - BOLT(FOR REAR BUMPER COVER)
45898-B1011	KGC1#,QNC10	09/2004 - 12/2006	2
45898-B1010	KGC1#,QNC10	05/2004 - 08/2004	2
52166A - COVER, REAR BUMPER, UPR LH
52166-B1010T7	KGC1#,QNC10..G,X CHAMPAGNE ME.OP.,T17	05/2004 - 12/2006	1
52166-B1010S8	KGC1#,QNC10..G,X SILVER ME.,S28	05/2004 - 12/2006	1
52166-B1010X7	KGC1#,QNC10 BLACK M.M.,X07	05/2004 - 10/2004	1
52166-B1010W6	KGC1#,QNC10..G,X WHITE PEARL.MC.,W16	05/2004 - 12/2006	1
52166-B1010R0	KGC1#,QNC10..G,X RED,R40	05/2004 - 12/2006	1
52166-B1010R3	KGC1#,QNC10..G,X MD CORAL ME.,R43	05/2004 - 12/2006	1
52166-B1010X7	KGC1#,QNC10..G,X BLACK M.M.,X07	05/2005 - 12/2006	1
52166-B1010G0	KGC1#,QNC10..G,X LIME GREEN ME.,G40	05/2004 - 12/2006	1
52166-B1010B2	KGC1#,QNC10..G,X DK.BLUE M.M.,B42	05/2004 - 12/2006	1
52166-B1010B7	KGC1#,QNC10..G,X LT.BLUE ME.OP.,B57	05/2004 - 12/2006	1
52166-B1010W9	KGC1#,QNC10..G,X WHITE,W09	05/2004 - 12/2006	1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-B1010	KGC1#,QNC10	05/2004 - 12/2006	3
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-B1010	KGC1#,QNC10	05/2004 - 12/2006	3
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-B1010	KGC1#,QNC10	05/2004 - 12/2006	3
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-B1010	KGC1#,QNC10	05/2004 - 12/2006	3
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67555	KGC1#,QNC10	11/2005 - 12/2006	4
90044-67517	QNC10;KGC1#..G,X	05/2004 - 11/2005	4
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67555	KGC1#,QNC10	11/2005 - 12/2006	4
90044-67517	QNC10;KGC1#..G,X	05/2004 - 11/2005	4
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67555	KGC1#,QNC10	11/2005 - 12/2006	4
90044-67517	QNC10;KGC1#..G,X	05/2004 - 11/2005	4
52561A - CLIP(FOR REAR BUMPER RETAINER)
90044-67555	KGC1#,QNC10	11/2005 - 12/2006	4
90044-67517	QNC10;KGC1#..G,X	05/2004 - 11/2005	4
52568D - RETAINER, REAR BUMPER, UPPER NO.2
52521-B2010	KGC1#,QNC10	05/2004 - 12/2006	2
52568D - RETAINER, REAR BUMPER, UPPER NO.2
52521-B2010	KGC1#,QNC10	05/2004 - 12/2006	2
75129A - CUSHION, REAR LICENCE PLATE
75129-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
Common parts
90044-67526
90044-68320
90048-7402901
Linked diagrams
5801
6101
6708
8115

KGC10-AHSAK (2004)

(0405-0612)
