KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

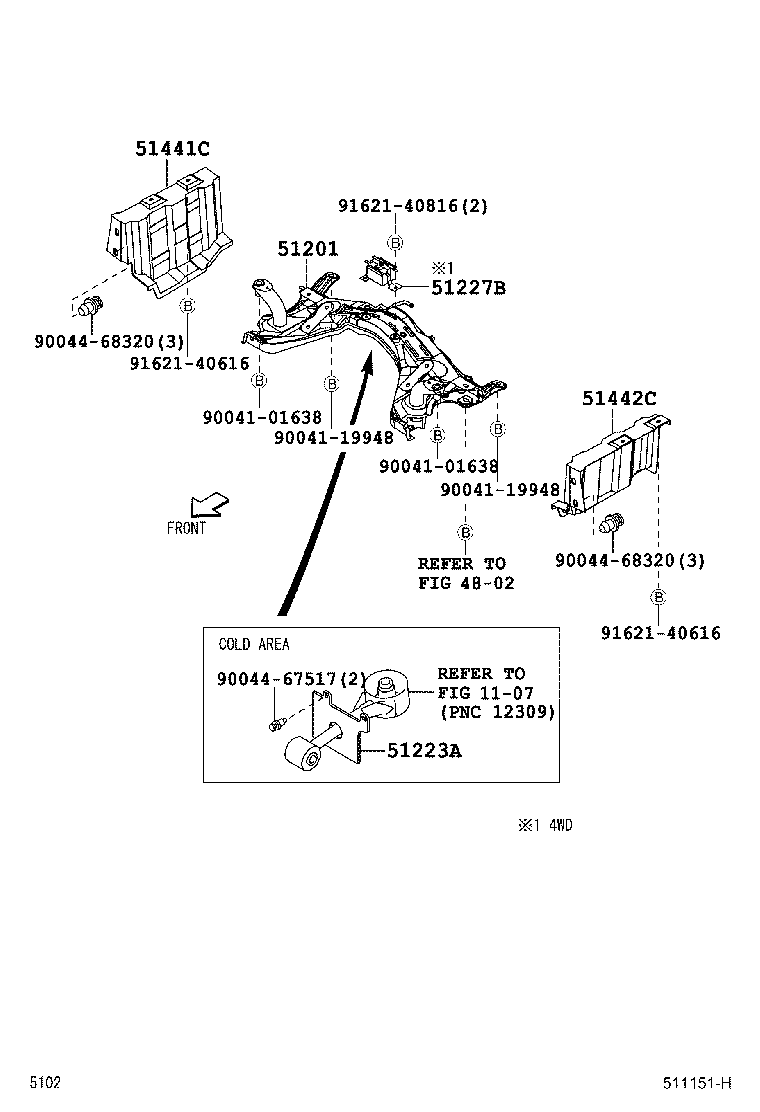

Click highlighted areas on diagram

diagram 1107 4802 51201 51223A 51227B 51441C 51442C 9004101638 9004101638 9004119948 9004119948 9004467517 9004468320 9004468320 9162140616 9162140616 9162140816
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-B1010

KGC10,QNC10

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-B1010

KGC10,QNC10

寒冷地仕様

 1
51441C - COVER, ENGINE UNDER, RH
51441-B1010

KGC1#,QNC10

 1
51442C - COVER, ENGINE UNDER, LH
51442-B1010

KGC1#,QNC10

 1
Common parts
90041-01638
90041-19948
90044-67517
90044-68320
91621-40616
91621-40816
Linked diagrams
1107
4802
