KGC10-AHSAK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine 1KRFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)KGC10,QNC10

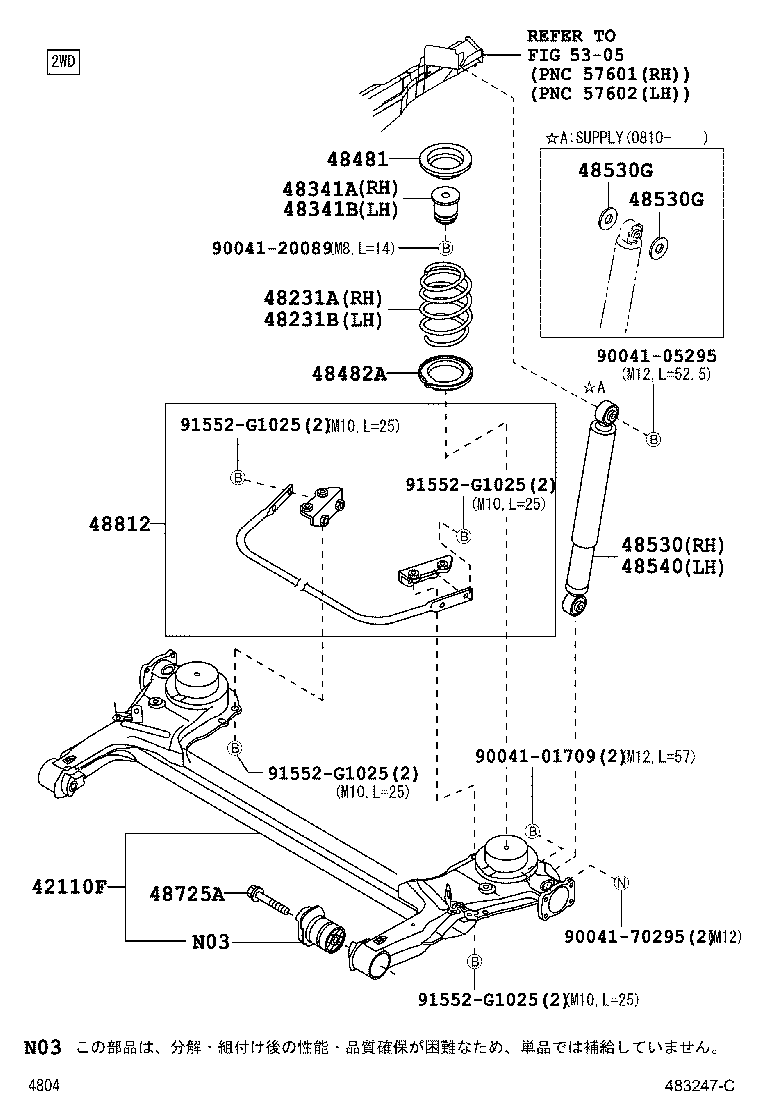

Click highlighted areas on diagram

diagram 42110F 48231A 48231B 48341A 48341B 48481 48482A 48530 48530G 48530G 48540 48725A 48812 5305 9004101709 9004105295 9004120089 9004170295 91552G1025 91552G1025 91552G1025 91552G1025
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
48710-B1010

KGC10,QNC10..G,X

 1
48710-B1011

KGC10,QNC10..G,X

 1
48231A - SPRING, COIL, REAR RH
48231-B1010

KGC10,QNC10..G,X

 1
48231B - SPRING, COIL, REAR LH
48231-B1010

KGC10,QNC10..G,X

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-B1010

KGC10,QNC10

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-B1010

KGC10,QNC10

 1
48481 - SEAT, REAR SPRING, UPPER
48481-B2010

KGC1#,QNC10

 2
48482A - SEAT, REAR SPRING, LOWER
48482-B1010

KGC10,QNC10

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-B1010

KGC10,QNC10..G,X

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-B1010

KGC10,QNC10..G,X

 1
48725A - BOLT(FOR LOWER CONTROL ARM)
48718-B2010

KGC10,QNC10

 2
Common parts
90041-01709
90041-05295
90041-20089
90041-70295
91552-G1025
Linked diagrams
5305
