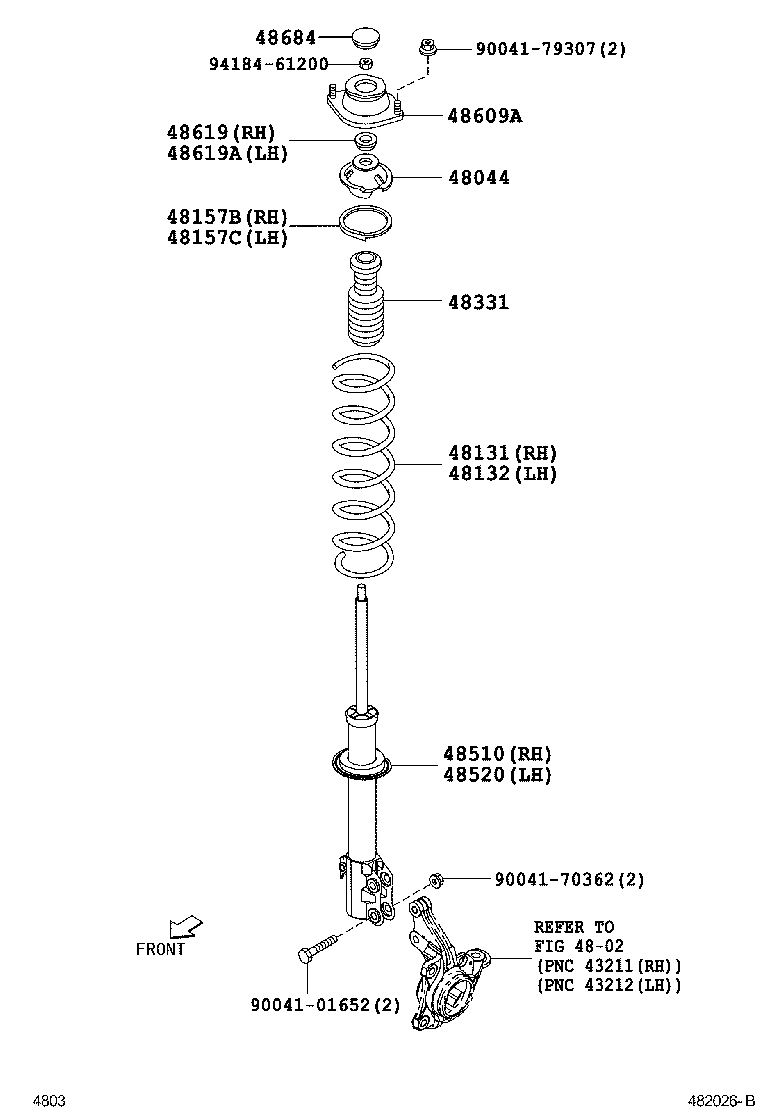

Toyota Passo KGC10 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48470-97403	KGC1#,QNC10	05/2004 - 12/2006	2
48131 - SPRING, FRONT COIL, RH
48131-B1010	KGC1# ｳﾚﾀﾝﾌｫｰﾑﾂｷ(下側)	05/2004 - 12/2006	1
48132 - SPRING, FRONT COIL, LH
48131-B1010	KGC1# ｳﾚﾀﾝﾌｫｰﾑﾂｷ(下側)	05/2004 - 12/2006	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
48331 - BUMPER, FRONT SPRING, NO.1
48331-B1010	KGC1#,QNC10	05/2004 - 12/2006	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-B1010	KGC10,QNC10..G,X ﾏｰｸ 48510−B1010	05/2004 - 12/2006	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-B1010	KGC10,QNC10..G,X ﾏｰｸ 48510−B1010	05/2004 - 12/2006	1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-97402	KGC1#,QNC10	05/2004 - 12/2006	2
48619 - BEARING, STRUT MOUNTING, RH
48619-B2010	KGC1#,QNC10	05/2004 - 12/2006	1
48619A - BEARING, STRUT MOUNTING, LH
48619-B2010	KGC1#,QNC10	05/2004 - 12/2006	1
48684 - COVER, BEARING DUST
48684-87202	KGC1#,QNC10	05/2004 - 12/2006	2
Common parts
90041-01652
90041-70362
90041-79307
94184-61200

KGC10-AHSAK (2004)
